The clevis swivel mounting holds the cylinder and carries its forces into the machine frame. The underlying rating is a cylinder diameter of 40 mm. 15 x 45 x 36 mm in stainless steel 1.4401.
90 degree clevis swivel mounting for round cylinders ISO 6431, for cylinder diameter 40 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€301.51
Item
FL-021193
Manufacturer no.
TDR 40 ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TDR 40 ES
EAN4050571691080
Customs tariff number84129080
ConditionNew
Artikel
FL-021193
Once installed, the clevis swivel mounting holds the cylinder and carries its forces into the machine frame. Decisive for the selection is a cylinder diameter of 40 mm.
Benefits
- Designed for round cylinders with a 40 mm cylinder diameter to ISO 6431.
- Material stainless steel 1.4401 for a cylinder diameter of 40 mm.
- Dimension M comes to 15 mm for size 40 mm.
- Dimension N comes to 45 mm for size 40 mm.
- Dimension H comes to 36 mm for size 40 mm.

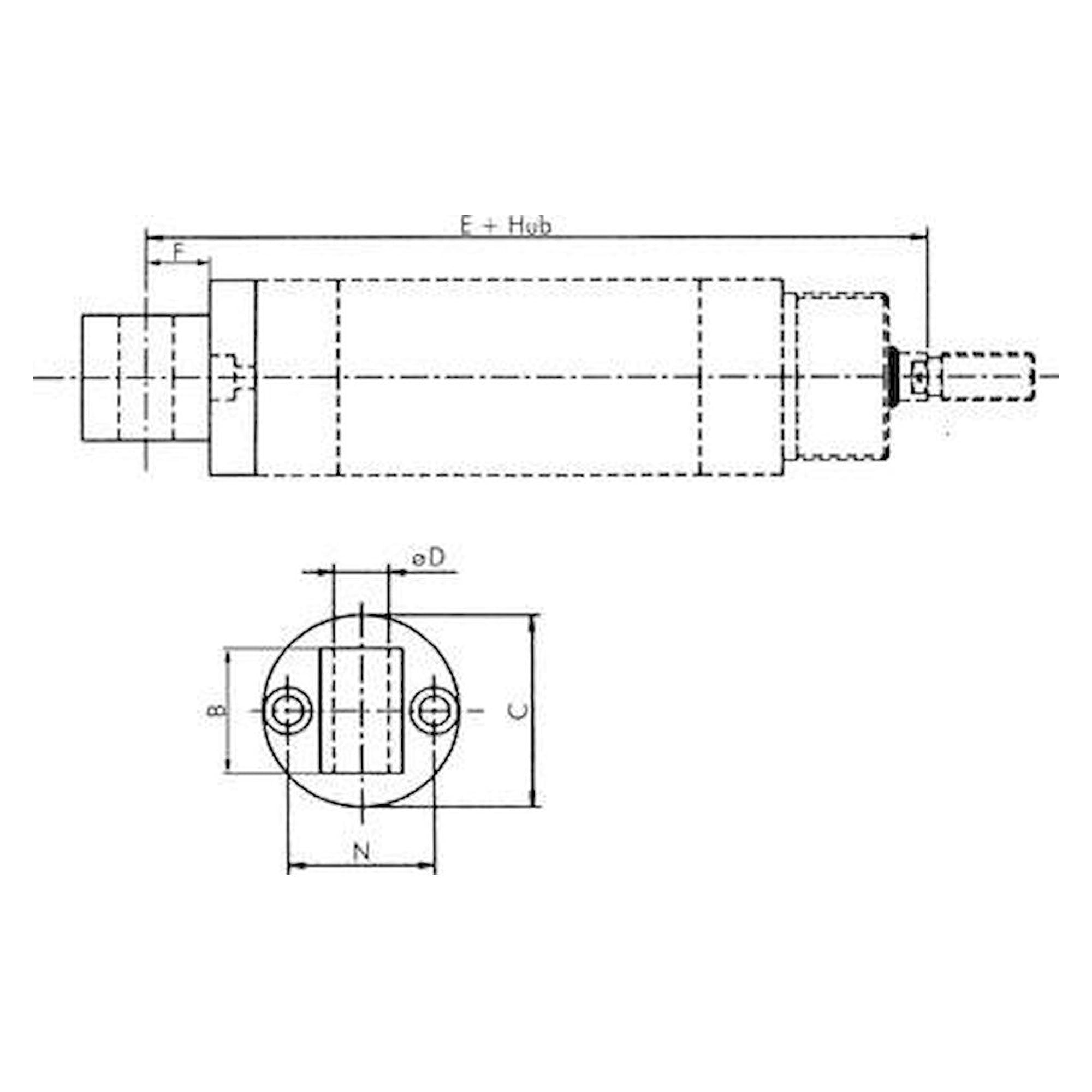

Technical data
| For cylinder diameter [mm] | 40 |
|---|---|
| Material | stainless steel 1.4401 |
| Dimension B [mm] | 28 |
| Dimension D [mm] | 12 |
| Dimension H [mm] | 36 |
| Dimension M [mm] | 15 |
| Dimension N [mm] | 45 |
| Dimension S [mm] | 6.5 |
| Dimension W1 [mm] | 25 |
| Dimension W2 [mm] | 44 |
Applications
In machine and plant construction the 90 degree clevis swivel mounting holds a cylinder with a 40 mm piston diameter in place.
Standards and conformity
The interface dimensions are based on ISO 6431.
| Weight | 0.320000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | TDR 40 ES |
| EAN | 4050571691080 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | ISO 6431 |
