Built to ISO 15552, the swivel eye mounting holds the cylinder and carries its forces into the machine frame. What counts here is a piston diameter of 63 mm. Material stainless steel 1.4401, size 67 x 50 x 37 mm.

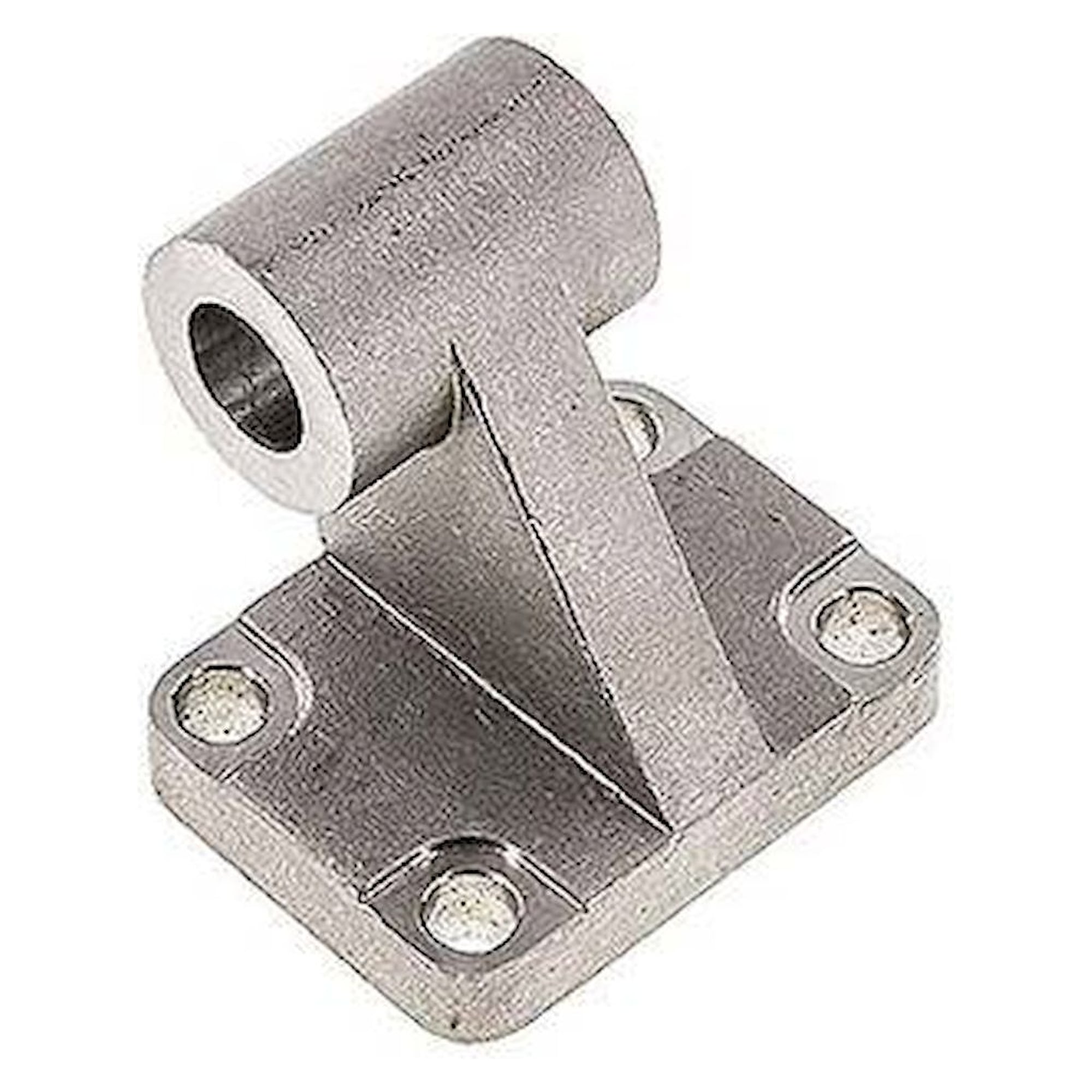

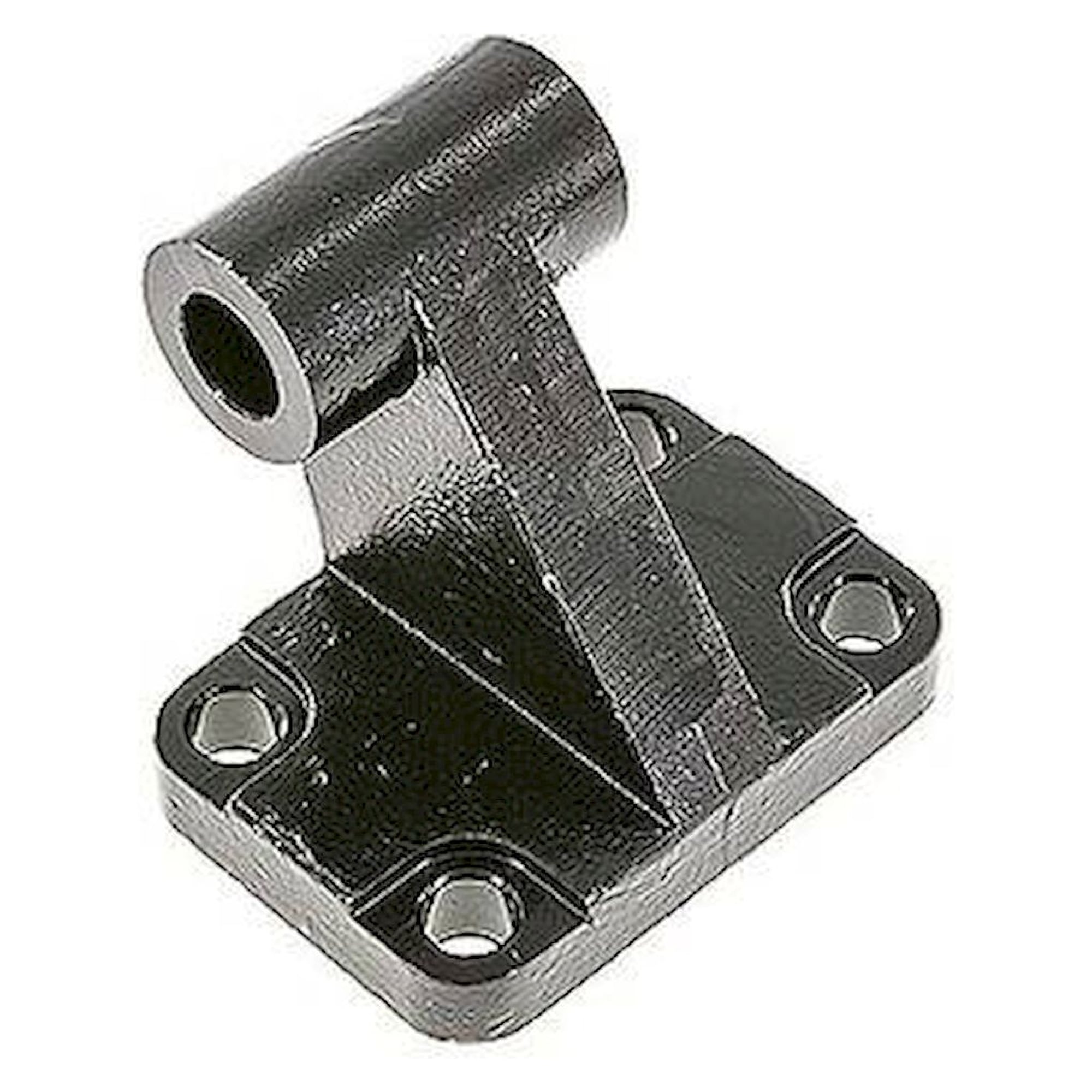

90 degree swivel eye mounting ISO 15552, for piston diameter 63 mm, stainless steel 1.4401
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€229.16
Item
FL-021737
Manufacturer no.
TD 63 ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TD 63 ES
EAN4050571691028
Customs tariff number73269098
ConditionNew
Artikel
FL-021737
Frequently Bought Together
-
This Item:
€229.16
-
90 degree swivel eye mounting ISO 15552, for piston diameter 50 mm, stainless steel 1.4401
€214.54
-
90 degree swivel eye mounting ISO 15552, for piston diameter 100 mm, stainless steel 1.4401
€379.31
Total price
Made to ISO 15552, this swivel eye mounting holds the cylinder and carries its forces into the machine frame. This version is listed with 67 mm for dimension M, 50 mm for dimension H and 37 mm for dimension G. Decisive for the selection is a piston diameter of 63 mm.
Benefits
- Designed for cylinders with a 63 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material stainless steel 1.4401 for size 63 mm.
- Dimension H comes to 50 mm for size 63 mm.
- Dimension W1 comes to 35 mm for size 63 mm.
- Dimension W2 comes to 50 mm for size 63 mm.
Technical data
| Material | stainless steel 1.4401 |
|---|---|
| For piston diameter [mm] | 63 |
| Dimension B [mm] | 40 |
| Dimension D [mm] | 16 |
| Dimension G [mm] | 37 |
| Dimension H [mm] | 50 |
| Dimension K [mm] | 12 |
| Dimension M [mm] | 67 |
| Dimension N [mm] | 52 |
| Dimension S [mm] | 9.0 |
| Dimension W1 [mm] | 35 |
| Dimension W2 [mm] | 50 |
Applications
In machine and plant construction the 90 degree swivel eye mounting holds a cylinder with a 63 mm piston diameter in place.
Standards and conformity
The interface dimensions are based on ISO 15552.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TD 63 ES |
| Manufacturer | Fluidics equipment |
| EAN | 4050571691028 |
| Weight | 0.600000 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
