This clevis swivel mounting holds the cylinder and carries its forces into the machine frame. A key figure is a piston diameter of 32 mm. Size 142 x 45 x 45 mm, material burnished steel.

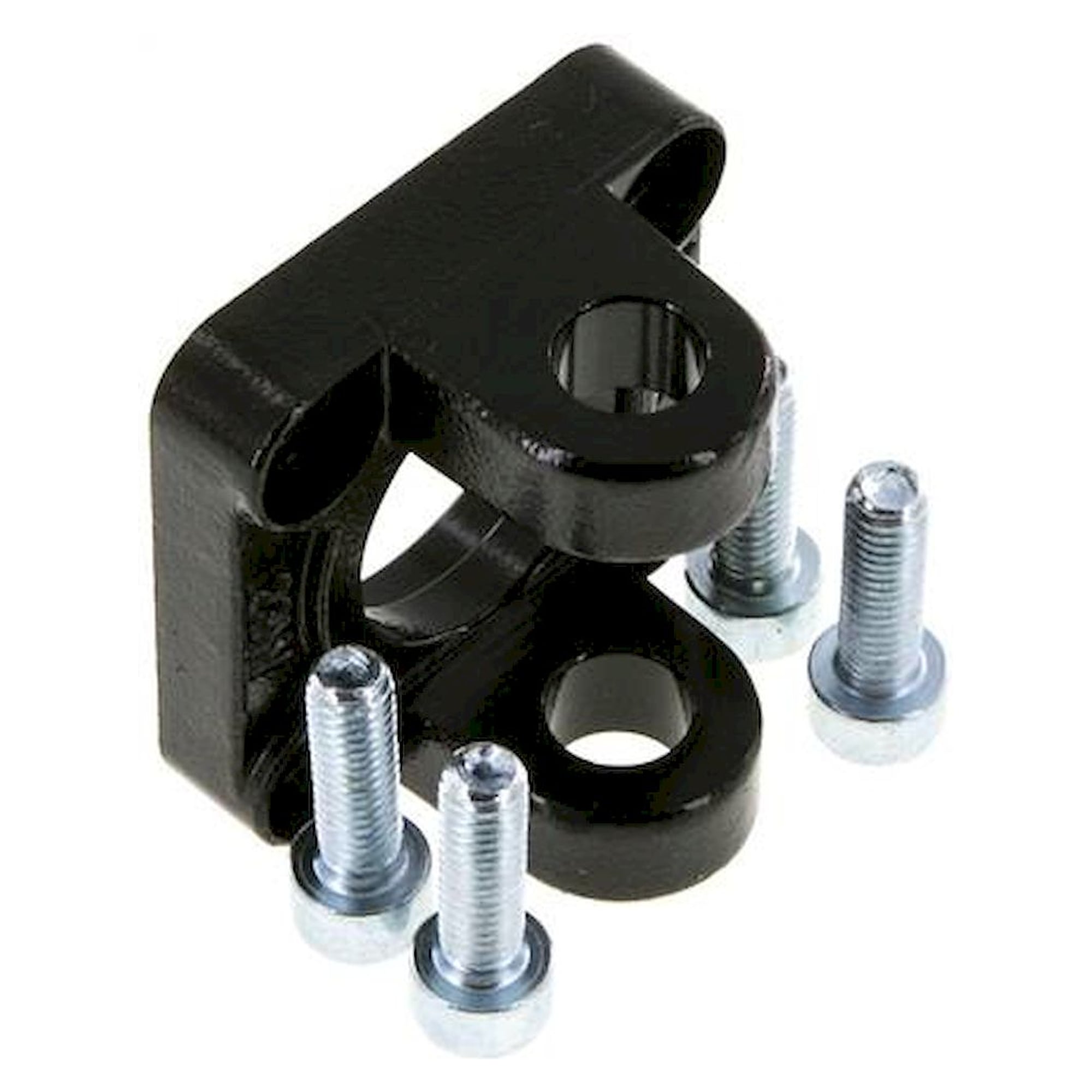

Clevis swivel mounting ISO 15552, for piston diameter 32 mm, burnished steel
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€28.81
Item
FL-438898
Manufacturer no.
TC 32 ST
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TC 32 ST
EAN4050571872854
Customs tariff number73269098
ConditionNew
Artikel
FL-438898
Frequently Bought Together
-
This Item:
€28.81
-
ISO 15552 Clevis Swivel Mount 125 mm, Stainless Steel 1.4401 - Airtec TC 125 ES
€674.80
-
ISO 15552 Clevis Swivel Mount 250 mm, Aluminium with Bushing - Airtec TC 250
€420.91
Total price
The clevis swivel mounting holds the cylinder and carries its forces into the machine frame and follows ISO 15552. The article is listed with a piston diameter of 32 mm. Material burnished steel is listed for this version.
Benefits
- Designed for cylinders with a 32 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material burnished steel for size 32 mm.
- Dimension A comes to 45 mm for size 32 mm.
- Dimension B comes to 26 mm for size 32 mm.
Technical data
| Material | burnished steel |
|---|---|
| For piston diameter [mm] | 32 |
| Dimension A [mm] | 45 |
| Dimension B [mm] | 26 |
| Dimension D [mm] | 10 |
| Dimension L [mm] | 142 |
| Dimension F [mm] | 22 |
| Dimension M [mm] | 45 |
| Dimension N [mm] | 32.5 |
| Scope of delivery | 1 swivel mounting incl. 4 fixing screws |
Applications
In handling and clamping equipment the clevis swivel mounting transfers the forces of the 32 mm cylinder into the frame.
Standards and conformity
The main dimensions follow ISO 15552 and therefore suit any cylinder of this size.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TC 32 ST |
| Manufacturer | Fluidics equipment |
| EAN | 4050571872854 |
| Weight | 0.140000 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
