Built to ISO 15552, the foot bracket holds the cylinder and carries its forces into the machine frame. What counts here is a piston diameter of 80 mm. Material zinc-plated steel, size 255 x 95 x 55 mm.

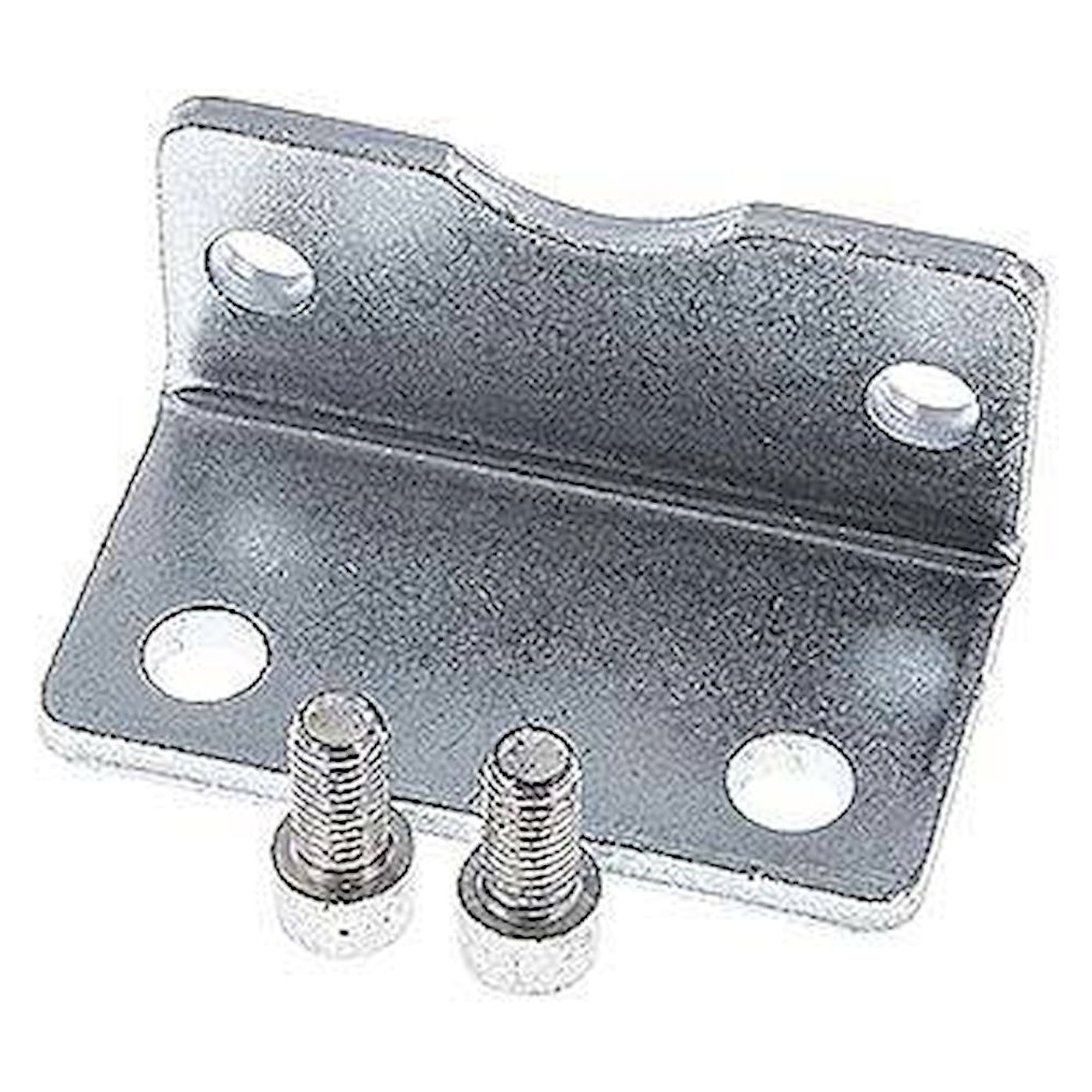

Foot bracket ISO 15552, for piston diameter 80 mm, zinc-plated steel
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€9.78
Item
FL-014516
Manufacturer no.
TA 80
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TA 80
EAN4050571688981
Customs tariff number84129080
ConditionNew
Artikel
FL-014516
Frequently Bought Together
-
This Item:
€9.78
-
Foot bracket ISO 15552, for piston diameter 100 mm, zinc-plated steel
€12.89
-
Foot bracket ISO 15552, for piston diameter 32 mm, stainless steel 1.4401
€47.76
Total price
Made to ISO 15552, this foot bracket holds the cylinder and carries its forces into the machine frame. This version comes with 255 mm for dimension L5, 95 mm for dimension M and 55 mm for dimension HH.
Benefits
- Designed for cylinders with a 80 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material zinc-plated steel for size 80 mm.
- Dimension HH comes to 55 mm for size 80 mm.
- Dimension AA comes to 63 mm for size 80 mm.
Technical data
| Material | zinc-plated steel |
|---|---|
| For piston diameter [mm] | 80 |
| Dimension AA [mm] | 63 |
| Dimension D [mm] | 12 |
| Dimension FA [mm] | 63 |
| Dimension G [mm] | 6 |
| Dimension HH [mm] | 55 |
| Dimension L3 [mm] | 210 |
| Dimension L5 [mm] | 255 |
| Dimension M [mm] | 95 |
| Dimension N [mm] | 72.0 |
| Dimension Q [mm] | 14 |
| Scope of delivery | 1 bracket incl. 2 fixing screws |
Applications
On feed and infeed units the foot bracket carries the cylinder of size 80 mm.
Standards and conformity
Made to ISO 15552 and matched to a piston diameter of 80 mm.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TA 80 |
| Manufacturer | Fluidics equipment |
| EAN | 4050571688981 |
| Weight | 0.430000 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
