This foot bracket holds the cylinder and carries its forces into the machine frame. A key figure is a piston diameter of 63 mm. Size 222 x 75 x 45 mm, material zinc-plated steel.

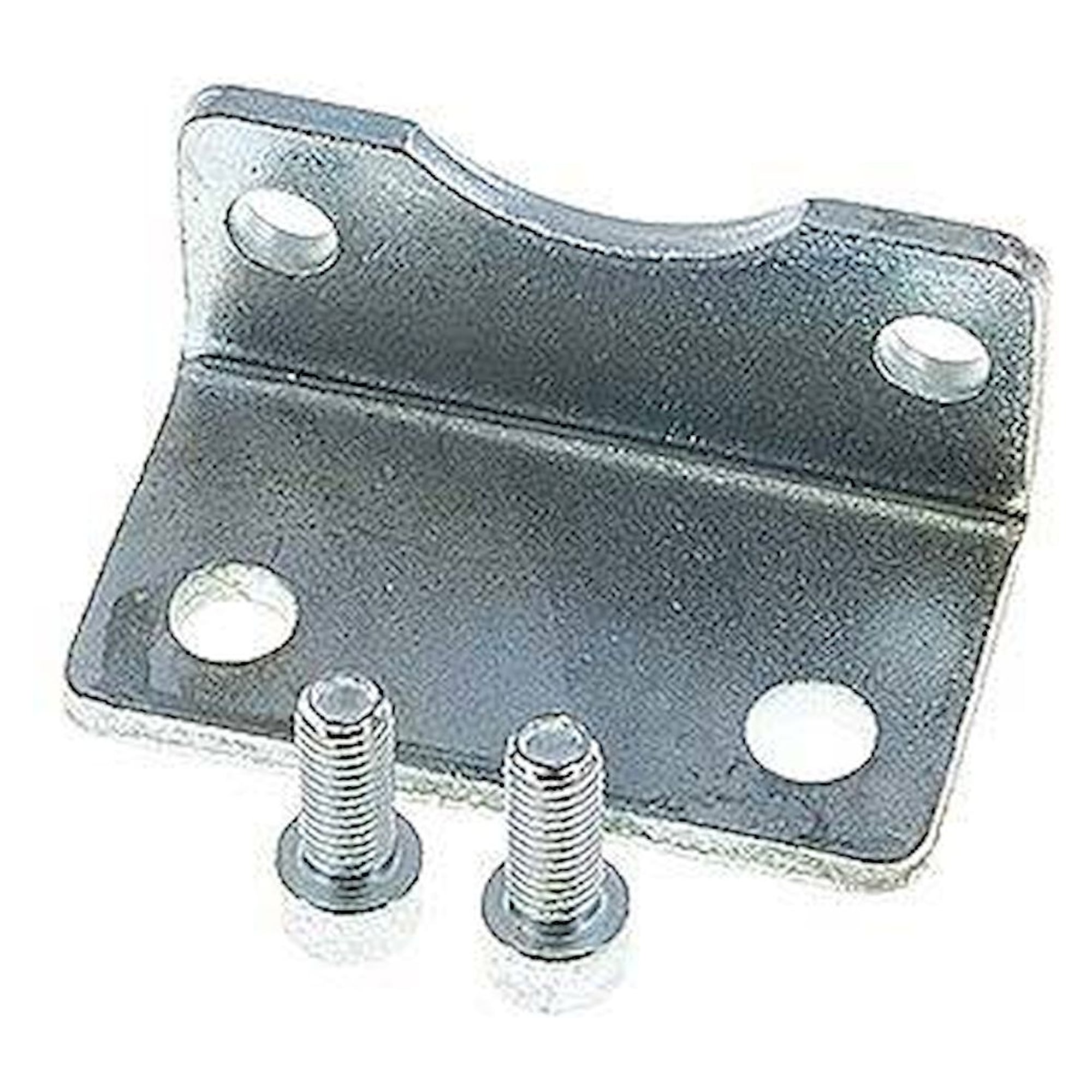

Foot bracket ISO 15552, for piston diameter 63 mm, zinc-plated steel
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€6.72
Item
FL-014515
Manufacturer no.
TA 63
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TA 63
EAN4050571688929
Customs tariff number84129080
ConditionNew
Artikel
FL-014515
As a foot bracket the article holds the cylinder and carries its forces into the machine frame. The data state a piston diameter of 63 mm. This version is listed with 222 mm for dimension L5, 75 mm for dimension M and 45 mm for dimension HH. Material zinc-plated steel is listed for this version.
Benefits
- Designed for cylinders with a 63 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material zinc-plated steel for size 63 mm.
- Dimension HH comes to 45 mm for size 63 mm.
- Dimension AA comes to 50 mm for size 63 mm.
Technical data
| Material | zinc-plated steel |
|---|---|
| For piston diameter [mm] | 63 |
| Dimension AA [mm] | 50 |
| Dimension D [mm] | 10 |
| Dimension FA [mm] | 50 |
| Dimension G [mm] | 5 |
| Dimension HH [mm] | 45 |
| Dimension L3 [mm] | 185 |
| Dimension L5 [mm] | 222 |
| Dimension M [mm] | 75 |
| Dimension N [mm] | 56.5 |
| Dimension Q [mm] | 13 |
| Scope of delivery | 1 bracket incl. 2 fixing screws |
Applications
On feed and infeed units the foot bracket carries the cylinder of size 63 mm.
Standards and conformity
Made to ISO 15552 and matched to a piston diameter of 63 mm.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TA 63 |
| Manufacturer | Fluidics equipment |
| EAN | 4050571688929 |
| Weight | 0.210000 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
