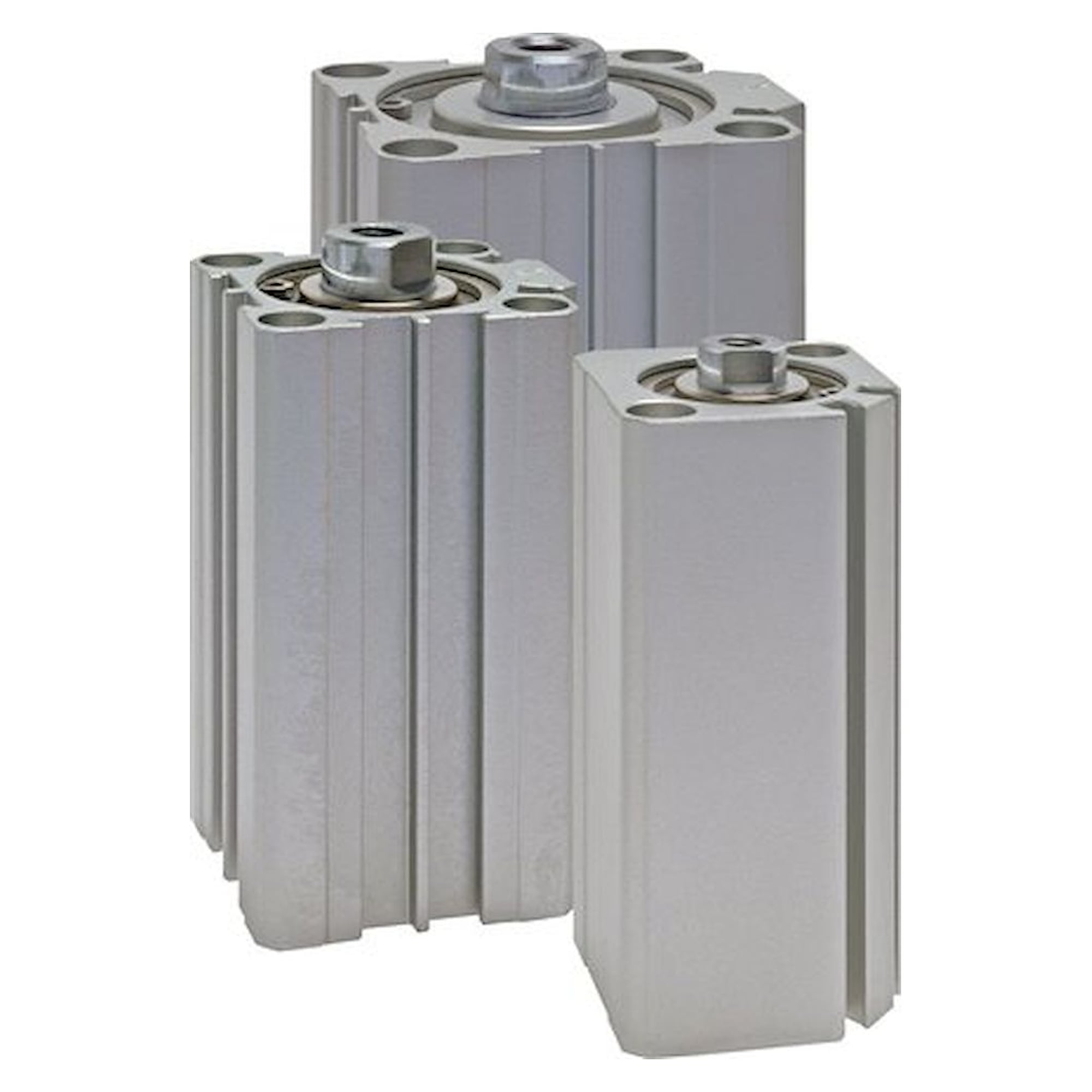

Compact cylinders, double acting, piston 63 mm, stroke 20 mm
Compact cylinders, double acting, piston 63 mm, stroke 20 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€100.44
€84.40
excl. Shipping Cost
Available
Fast shipping
Item
FL-142675
Manufacturer no.
LCDQ 63/20
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.LCDQ 63/20
EAN4050571461270
Customs tariff number84123100
ConditionNeu
Artikel
FL-142675
Frequently Bought Together
-
This Item:
€100.44 €84.40excl. Shipping Cost
-
Compact cylinders, double acting, piston 25 mm, stroke 80 mm
€64.40 €54.12excl. Shipping Cost
-
Compact cylinders, double acting, piston 40 mm, stroke 5 mm
€58.30 €48.99excl. Shipping Cost
Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-5 to +80 °C
Operating pressure:
max. 10 bar
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-5 to +80 °C
Operating pressure:
max. 10 bar
| Piston diameter [mm] | 63 |
| Stroke [mm] | 20 |
| K (piston rod thread) | M 10 |
| G (compressed air port) | G 1/4" |
| A [mm] | 54,0 |
| B [mm] | 8,0 |
| C [mm] | 46,0 |
| D [mm] | 20 |
| E [mm] | 15 |
| F [mm] | 84,0 |
| M [mm] | 6,5 |
| N1 [mm] | 15,0 |
| N2 [mm] | 10,5 |
| P1 [mm] | M 10 / Ø 8,7 |
| P2 [mm] | 14,0 |
| P3 [mm] | 28,5 |
| P4 [mm] | 10,5 |
| S [mm] | 77 |
| T1 [mm] | 60,0 |
| SW [mm] | 17 |
| Hersteller-Nr | LCDQ 63/20 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571461270 |
| Weight | 85.000000 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
