Compact cylinders, double acting, piston 25 mm, stroke 90 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€70.17
€58.97
excl. Shipping Cost
Available
Fast shipping
Item
FL-142622
Manufacturer no.
LCDQ 25/90
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.LCDQ 25/90
EAN4050571460976
Customs tariff number84123100
ConditionNeu
Artikel
FL-142622

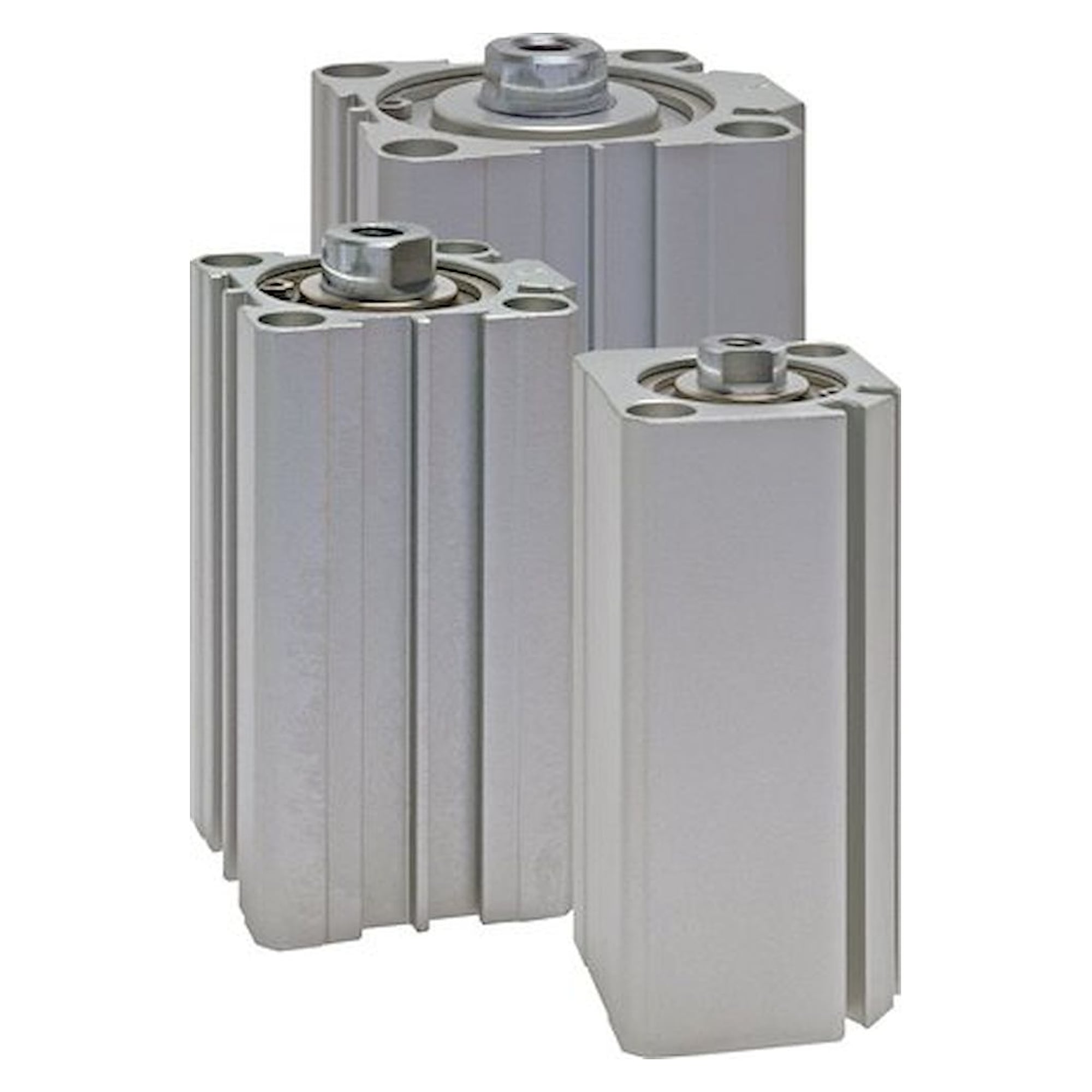

Pictures are for reference and may not be accurate, actual product may differ
Compact cylinders, double acting, piston 25 mm, stroke 90 mm
Frequently Bought Together
-
This Item:
€70.17 €58.97excl. Shipping Cost
-
Compact cylinders, double acting, piston 25 mm, stroke 45 mm
€52.81 €44.38excl. Shipping Cost
-
Compact cylinders, double acting, piston 16 mm, stroke 5 mm
€36.94 €31.04excl. Shipping Cost
Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-5 to +80 °C
Operating pressure:
max. 10 bar
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-5 to +80 °C
Operating pressure:
max. 10 bar
| Piston diameter [mm] | 25 |
| Stroke [mm] | 90 |
| K (piston rod thread) | M 6 |
| G (compressed air port) | M 5 |
| A [mm] | 37,5 |
| B [mm] | 5,0 |
| C [mm] | 32,5 |
| D [mm] | 12 |
| E [mm] | 12 |
| M [mm] | 4,5 |
| N1 [mm] | 11,0 |
| N2 [mm] | 5,5 |
| P1 [mm] | M 6 / Ø 5,2 |
| P2 [mm] | 9,0 |
| P3 [mm] | 17,0 |
| P4 [mm] | 7,0 |
| S [mm] | 40 |
| T1 [mm] | 28,0 |
| T2 [mm] | 40 |
| SW [mm] | 10 |
| Hersteller-Nr | LCDQ 25/90 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571460976 |
| Weight | 5.000000 |
| Size | - |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
