Built to ISO 15552, the pivot pin connects the swivel mounting to the cylinder. What counts here is a piston diameter of 80 mm. Material zinc-plated steel, size 91.0 x 98 x 16 mm.

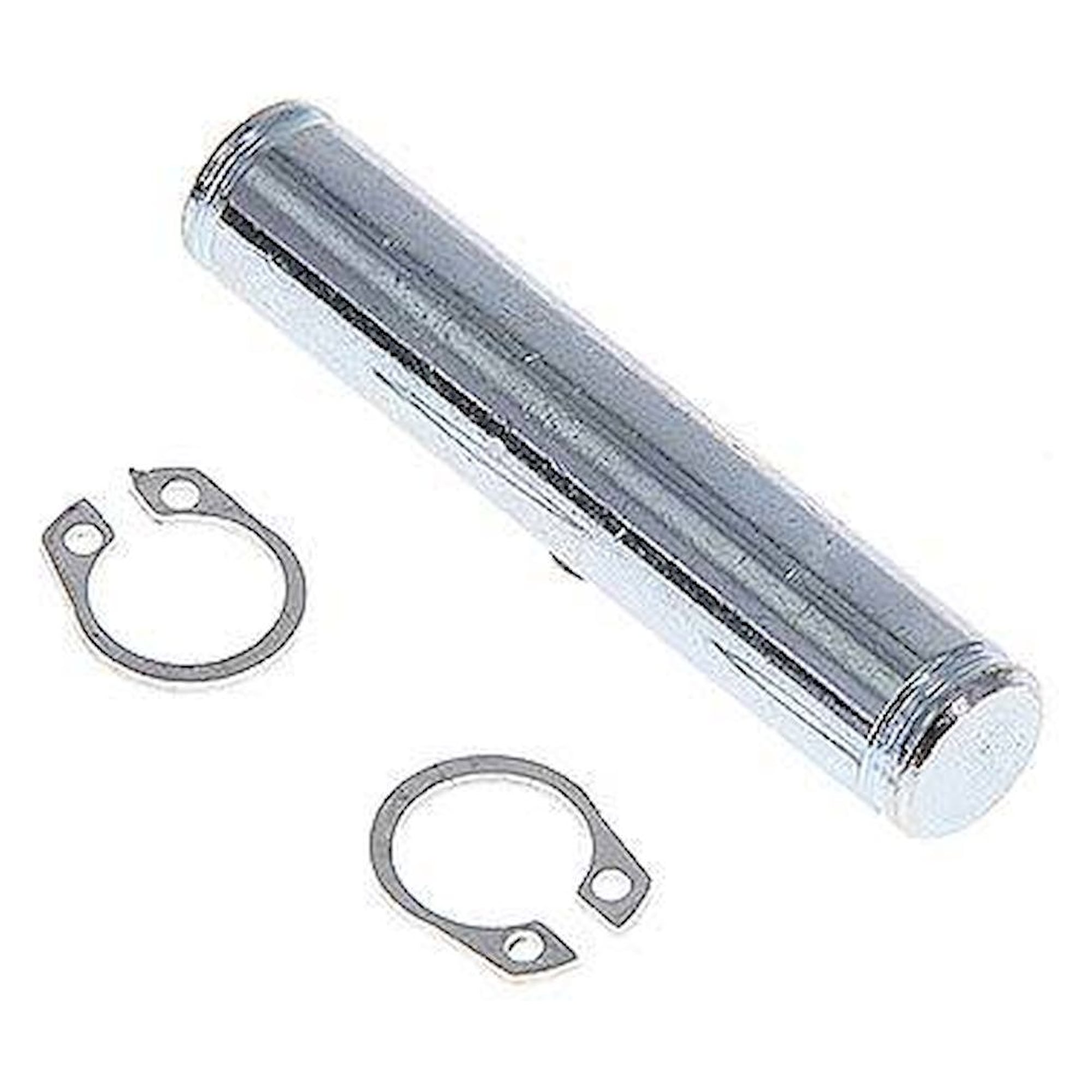

Pivot pin ISO 15552, for piston diameter 80 mm, zinc-plated steel
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€3.79
Item
FL-004094
Manufacturer no.
FF 80
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.FF 80
EAN4050571295967
Customs tariff number73182900
ConditionNew
Artikel
FL-004094
Made to ISO 15552, this pivot pin connects the swivel mounting to the cylinder. This version comes with 91.0 mm for dimension A, 98 mm for dimension B and 16 mm for dimension D.
Benefits
- Designed for cylinders with a 80 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material zinc-plated steel for size 80 mm.
- Dimension D comes to 16 mm for size 80 mm.
- Dimension B comes to 98 mm for size 80 mm.
Technical data
| Material | zinc-plated steel |
|---|---|
| For piston diameter [mm] | 80 |
| Dimension A [mm] | 91.0 |
| Dimension B [mm] | 98 |
| Dimension D [mm] | 16 |
| Scope of delivery | pin complete with clamping ring and split pins |
Applications
On feed and infeed units the pivot pin carries the cylinder of size 80 mm.
Standards and conformity
Made to ISO 15552 and matched to a piston diameter of 80 mm.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | FF 80 |
| Manufacturer | Fluidics equipment |
| EAN | 4050571295967 |
| Weight | 0.155000 |
| Zolltarifnummer | 73182900 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
