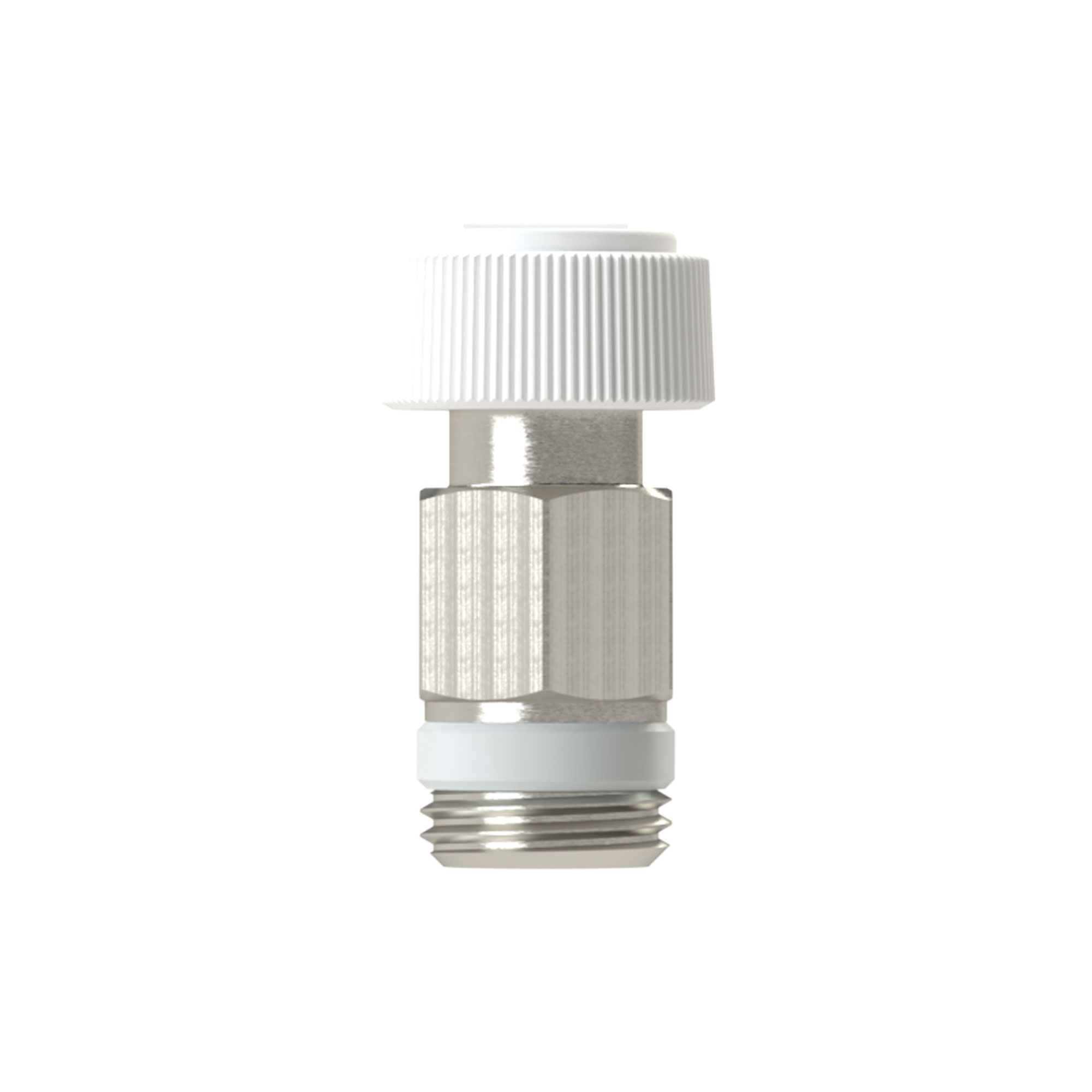

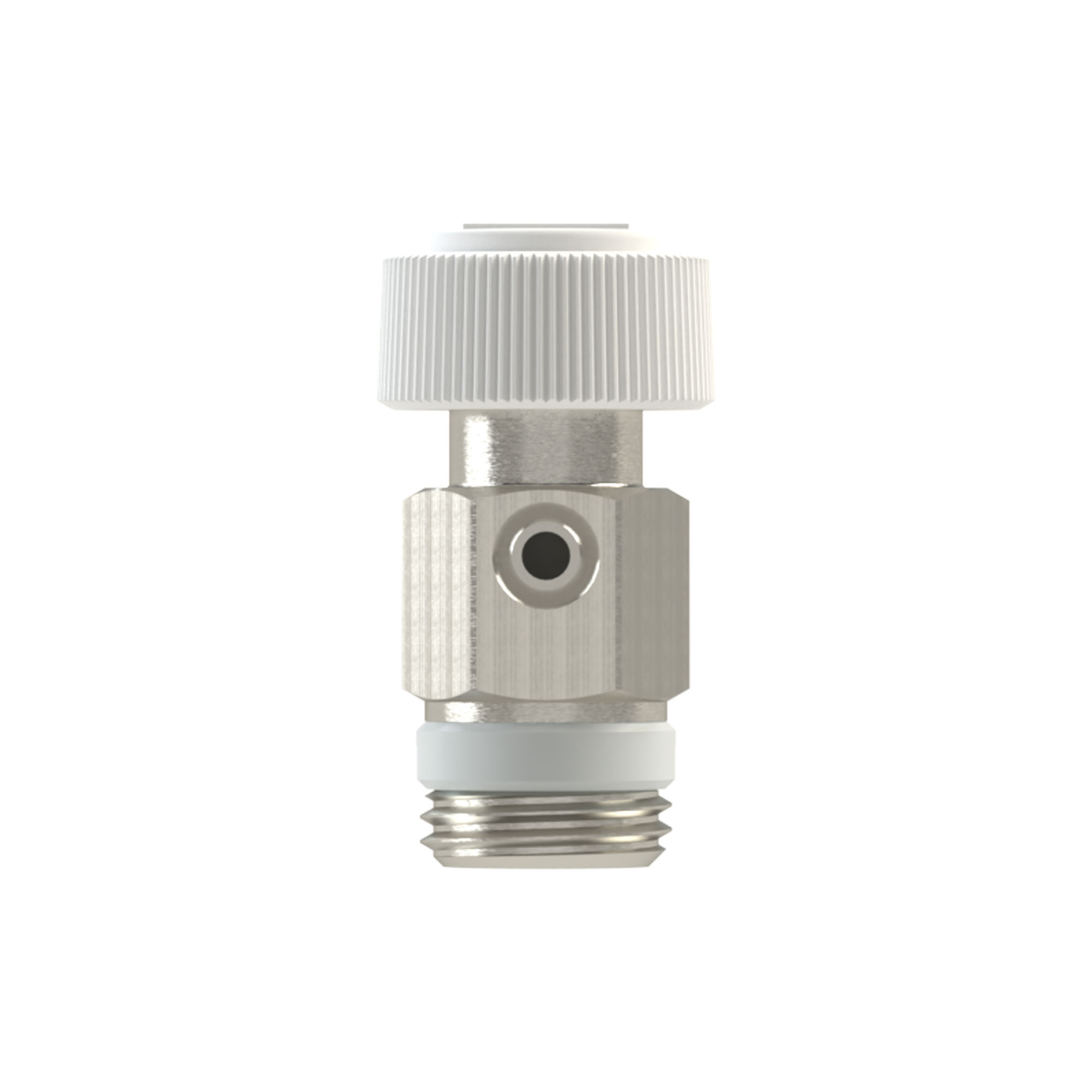

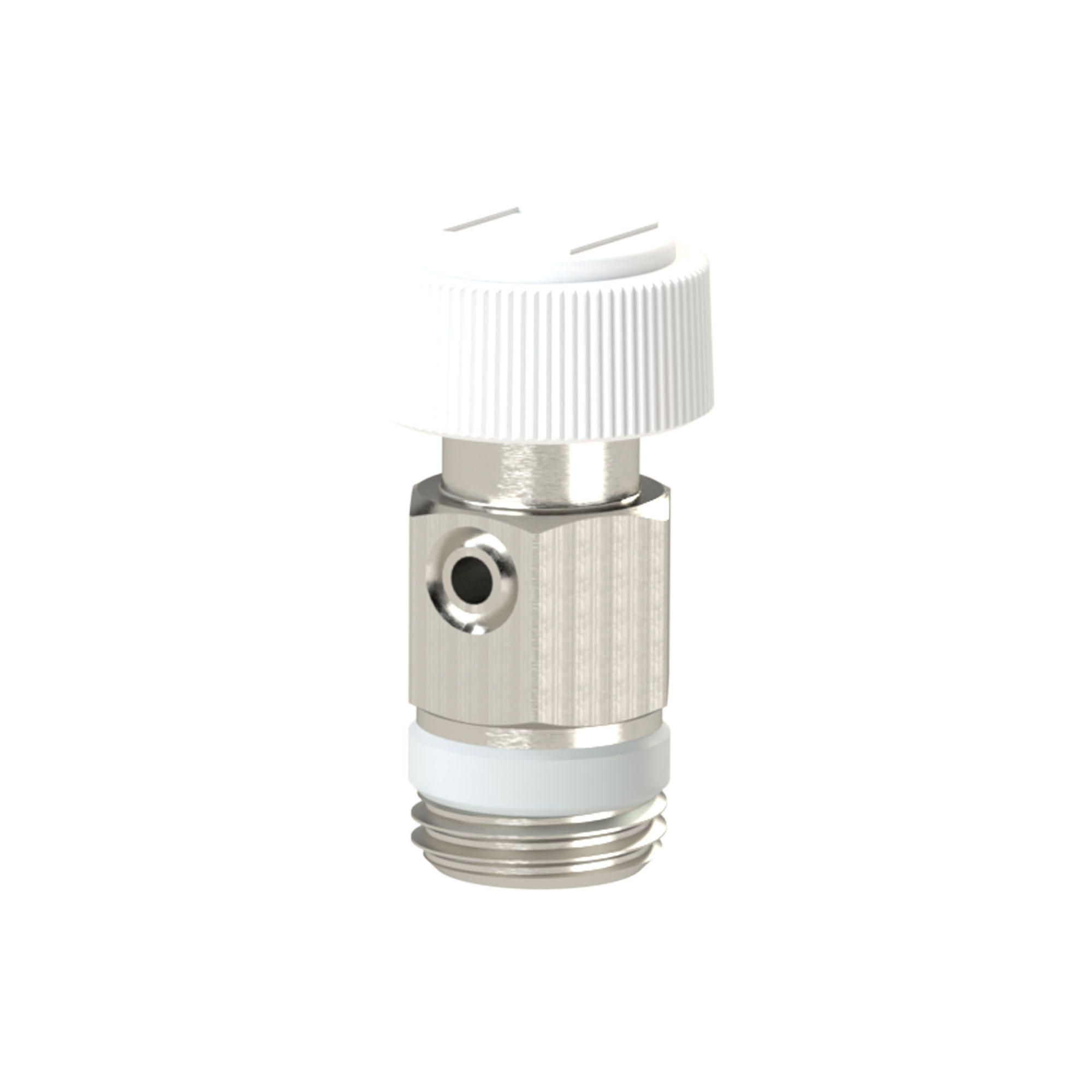

Venting valve, chrome-plated brass, G 1/4, 10 bar - Riegler 163000

Venting valve, chrome-plated brass, G 1/4, operating temperature max. 90 °C, PN max. 10 bar For venting water-filled heating circuits.

Technical data

Standards and origin

• Customs tariff number: 84219990
• Country of origin: IT

About Globe valves

Shut off valves isolate a section of pipework by hand so that a machine or a fitting can be worked on without stopping the whole plant. The group covers DN 5 to DN 50 and is rated up to 40 bar depending on version. Straight bodied and angle valves are available with female or male thread.

What matters when choosing

• DN from 5 to 50 mm sets the flow. The nominal bore should match the line, a restriction inside the valve costs pressure permanently.
• Thread: from G 1/8 male up to G 2, as female or male thread. Together with the straight or angle body this decides how the line is routed.
• Maximum operating pressure ranges from 10 to 40 bar. The figure depends on body style and nominal bore and is stated individually per article.
• Body: brass or stainless steel 1.4401 / 1.4408. Stainless steel is the choice wherever medium or surroundings attack brass.
• Sealing material NBR or PTFE. Together with the operating temperature of -10 °C to 120 °C it limits which media are permitted.

Typical applications

• Isolating individual machines from the compressed air network before maintenance
• Manual isolation in water and cooling circuits
• Shutting off gauge lines ahead of pressure gauges
• Bypass and drain points in pipework
• Isolation ahead of filter and regulator units in air preparation

Bodies are made of brass or stainless steel 1.4401 / 1.4408, sealing is by NBR or PTFE. Production takes place in Germany, Italy, China and Taiwan.
