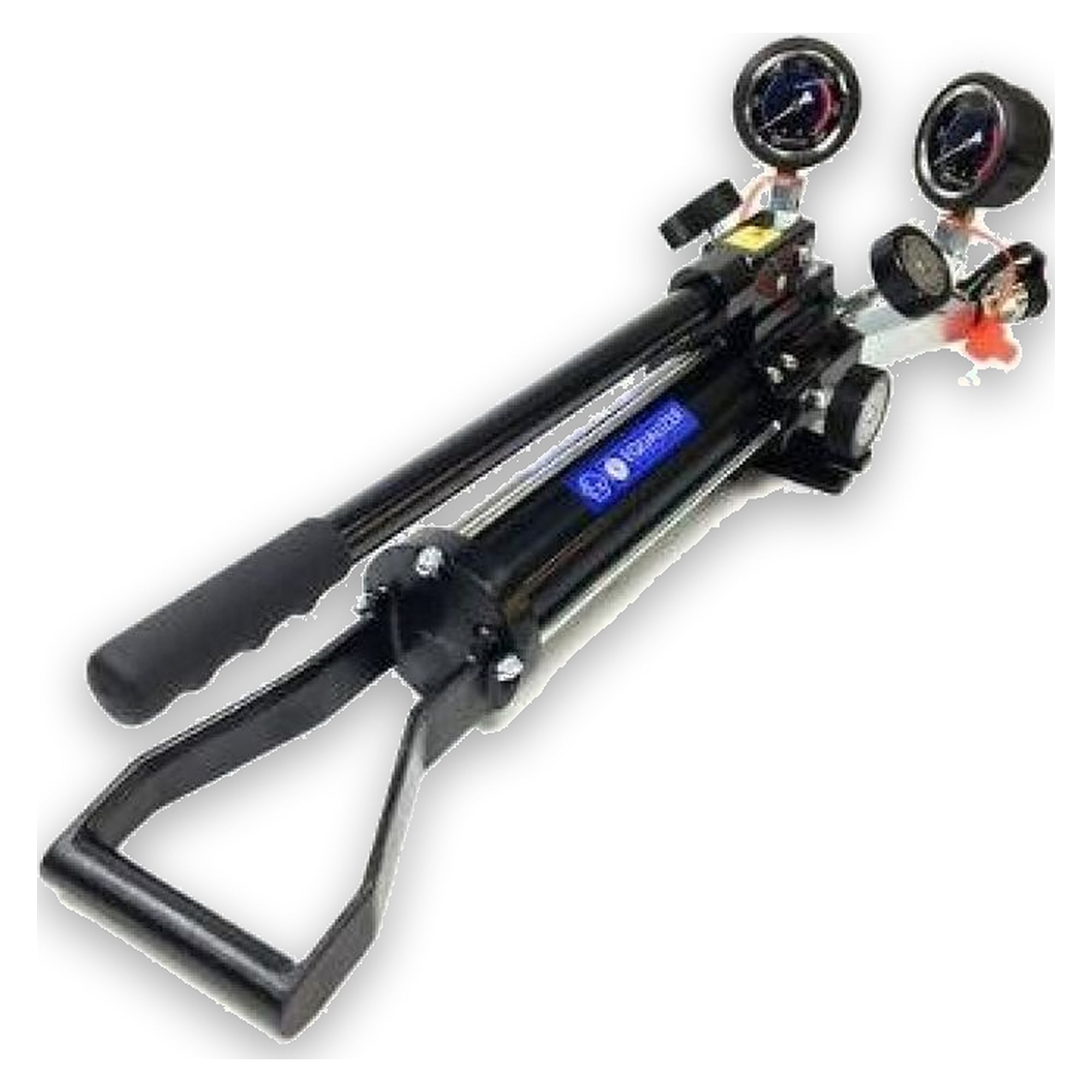

Hydraulic Hand Pump, twin-port, 300 cm³, ATEX - Enerpac HP350DMINEX

The HP350D hydraulic hand pump drives two single-acting cylinders at once through two ports, at up to 700 bar with a usable oil volume of 300 cm³. The ports can be isolated individually or used together.

Benefits

• Two individually isolatable ports for two single-acting cylinders
• 700 bar working pressure for equipment with an oil capacity up to 350 cm³
• Usable in any orientation, on- or offshore
• Designed for hazard reduction, safety and ease of use
• Antistatic ATEX hose in 2 m, 4 m or 6 m with quick couplings and a 90-degree elbow fitting

Technical data

• Working pressure: 700 bar
• Usable oil volume: 300 cm³
• Ports: 2 (single-acting)
• Suitable for equipment up to 350 cm³ oil capacity
• Series: HP
• Weight: 7.2 kg

In the box

• 1 x HP350D pump unit
• 2 x 700 bar gauges
• 2 x 3/8" port gauge adaptors
• 1 x instruction manual
• 1 x cardboard packaging

Standards

• ATEX certified to EU directive 2014/34/EU for potentially explosive atmospheres
• Permanent antistatic hose sheath to PN-EN 13463-1
