Single ring supports, for G 1/8, for hose 8/6 mm, POM - Riegler 110760

Single ring supports, for G 1/8, for hose 8/6 mm, Operating pressure 0 - 10 bar, Temperature -10 °C to 60 °C, POM

Standards and origin

• Customs tariff number: 39174000
• Country of origin: DE

About Single ring socket

The single ring connector takes a hose line onto a threaded port and forms the transition from the fitting to a device or valve connection. The four versions cover the male threads G 1/8 and G 1/4 with hose 6/4 and 8/6 mm. Operating pressure runs from 0 to 10 bar.

What matters when choosing

• Thread: G 1/8 or G 1/4 as a parallel male thread. A parallel thread does not seal in the thread itself, sealing takes place on the contact face.
• Hose size: tube outside diameter 6 or 8 mm with inside diameter 4 and 6 mm respectively. The connector is matched to the wall thickness of the hose concerned.
• Operating pressure: 0 to 10 bar for all four items. The range is not designed for higher pressures.
• Material POM: light and abrasion resistant, the temperature range stated for the items is -10 °C to 60 °C.

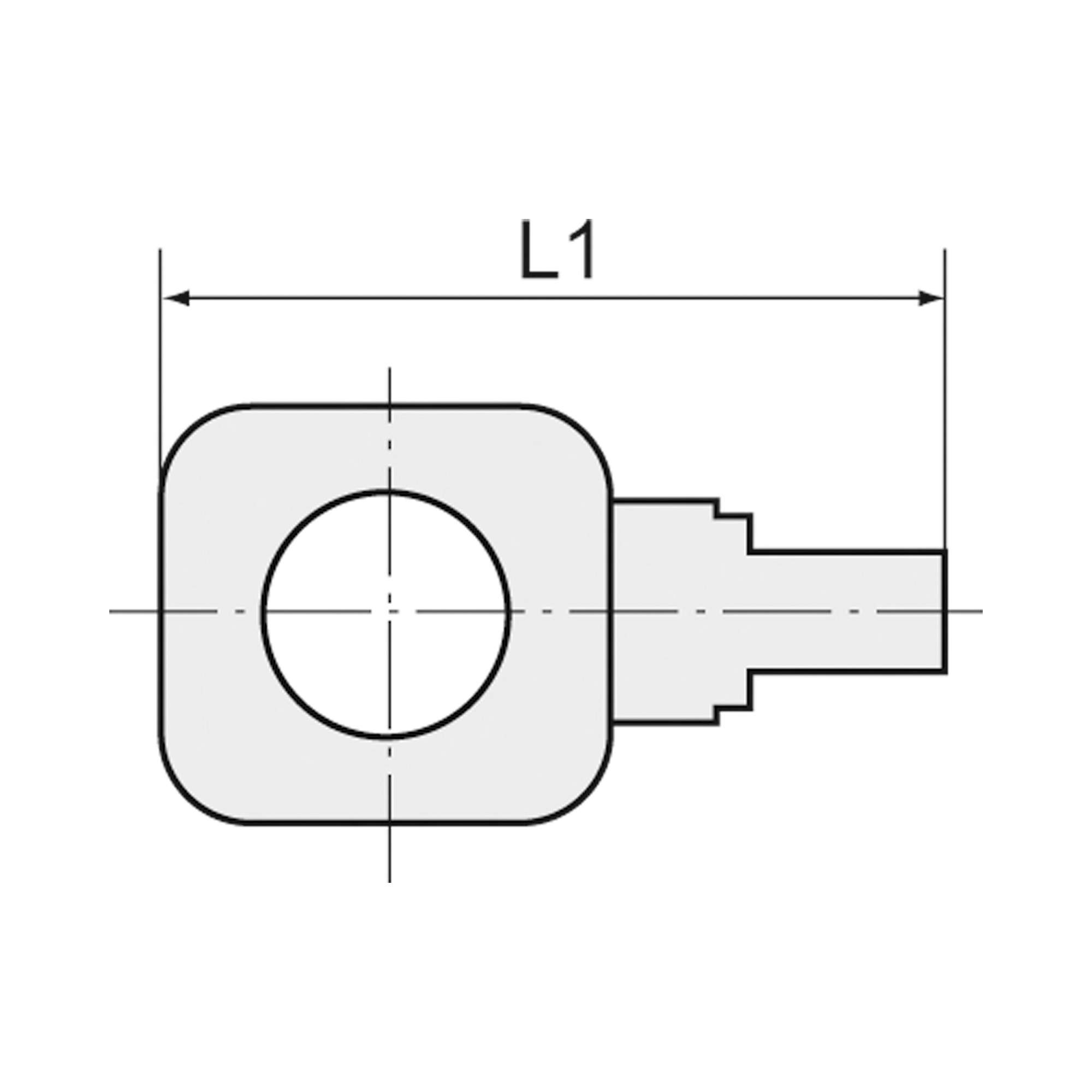

• Installed length: dimension L1 appears in the table and decides whether the connector fits the space available below the device.

Typical applications

• Connecting soft hose to valves and cylinders in low pressure pneumatics
• Transition from hose to a threaded bore on housings and manifold rails
• Water and coolant lines at low pressure
• Dosing and laboratory setups
• Maintenance of existing POM fittings

The four items are made from POM and are produced in Germany.
