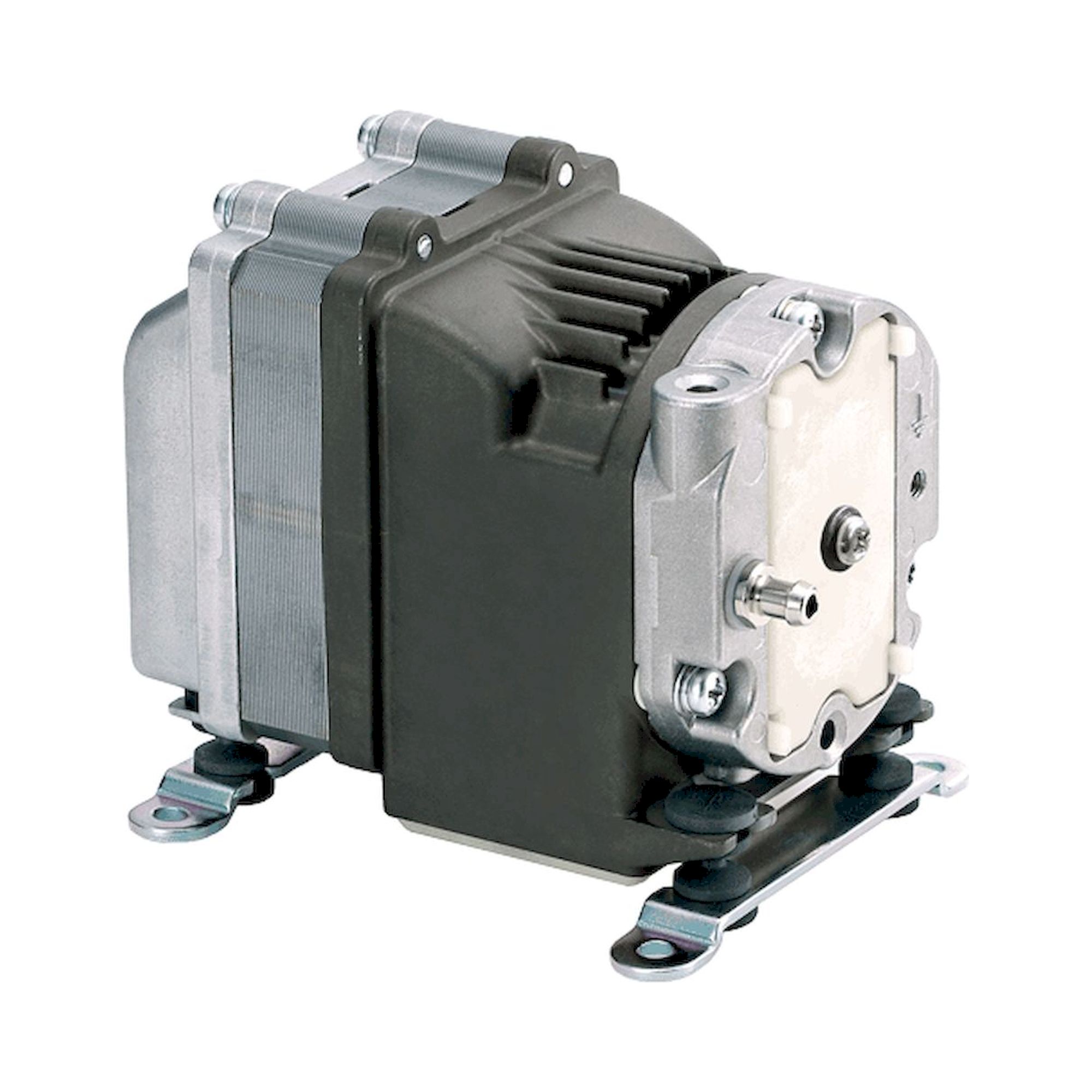

DC compressor DAH102-X1 12V, 5 l/min - Nitto Kohki 191115252

For equipment supplied from a battery or an on-board system, this series runs on 12 V or 24 V DC and delivers rated pressures of 0.2 to 1.0 bar at 1.0 to 5 l/min. Every model is rated for continuous duty and shares the same 76 x 70 mm mounting pattern.

• Mains-independent operation, as the compressors run directly on 12 V or 24 V DC
• Predictable current draw between 0.27 and 0.81 A mean value, which simplifies battery and fuse sizing
• All models in the series are rated for continuous duty, so no rest periods have to be planned
• Replacement and retrofit without new drilling patterns, since every version shares the 76 x 70 mm mounting dimensions and a weight of 0.91 kg
• Maintenance can be scheduled against the stated service life of 5,000 to 10,000 operating hours
• Direct hose connection via barbs of 4.5 or 6 mm outside diameter

Applications

• Compressed air in portable measuring and sampling instruments
• Air supply in vehicle bodies and special purpose vehicles
• Battery powered test and service cases
• Aeration and circulation in off-grid installations
• Control air for small pneumatic actuators on 24 V systems

Operating principle

A coil-driven piston compresses the air inside the cylinder and delivers it at the hose barb. The coil winding is rated to insulation class A.

Standards and compliance

Coil insulation is classified as class A or equivalent to JETL.
