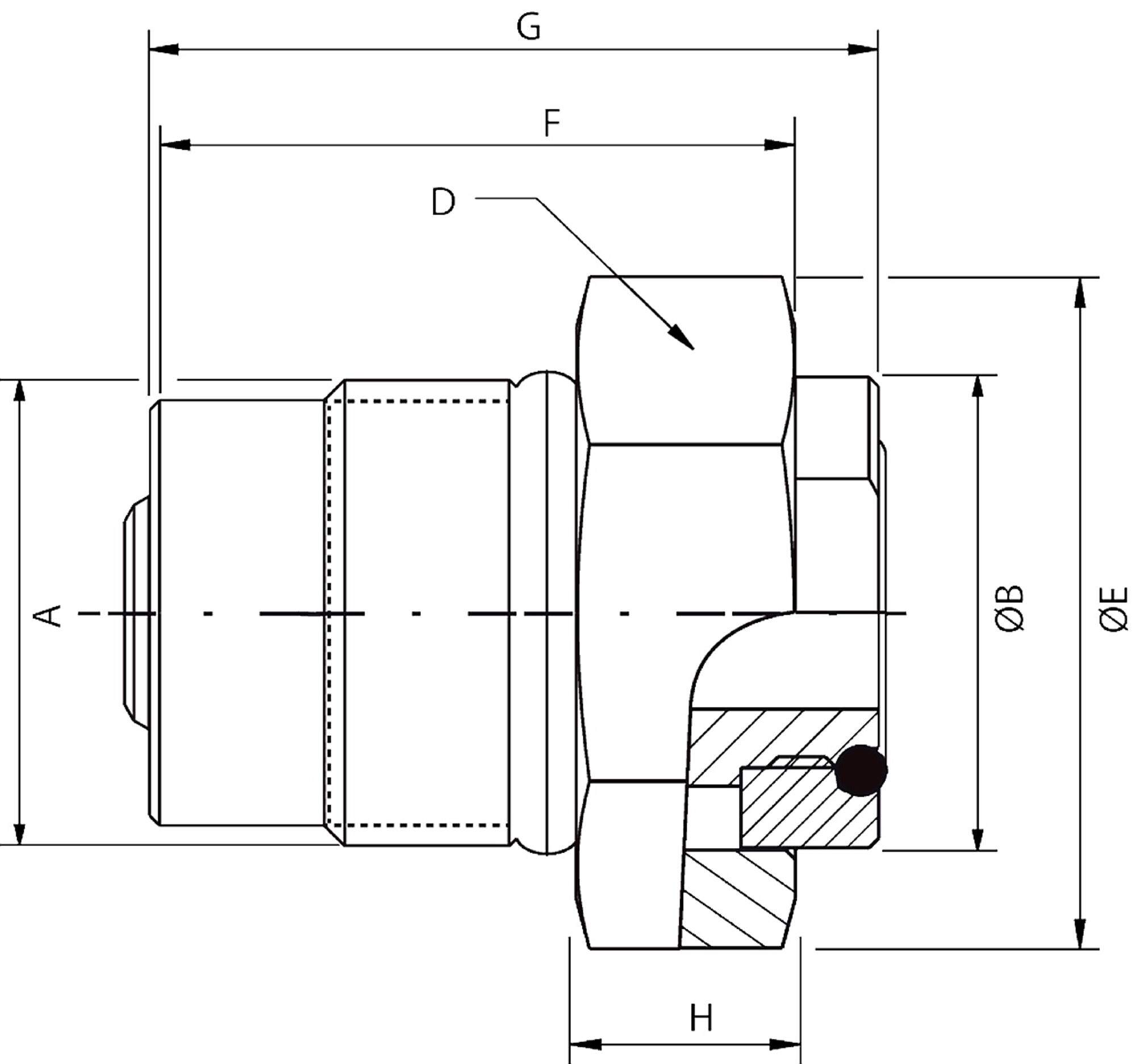

Auto-coupling, male thread, M24x1.5, DN 10, 2100 l/min, brass - Cejn 109811588

The auto-coupling DN 10 is mounted through the male thread M24x1.5 and reaches 2100 l/min at 10 bar.

Benefits

• Air flow 2100 l/min at a working pressure of 10 bar.
• Valve design that seals against a mating block.
• Nominal flow diameter 10 mm at the male thread M24x1.5.
• Main material brass for use in manifold systems.
• Matching nipples belong to the range when double shut-off is required.

Applications

It is intended for compressed air manifold systems, for example on transfer presses, tool-changing systems and palletizing equipment.

Material and series

The manufacturer lists the nominal flow diameter 10 mm as series 981. Main material brass. Seal material NBR. The flat-face, non-drip design is the hallmark of the Cejn auto-couplings.
