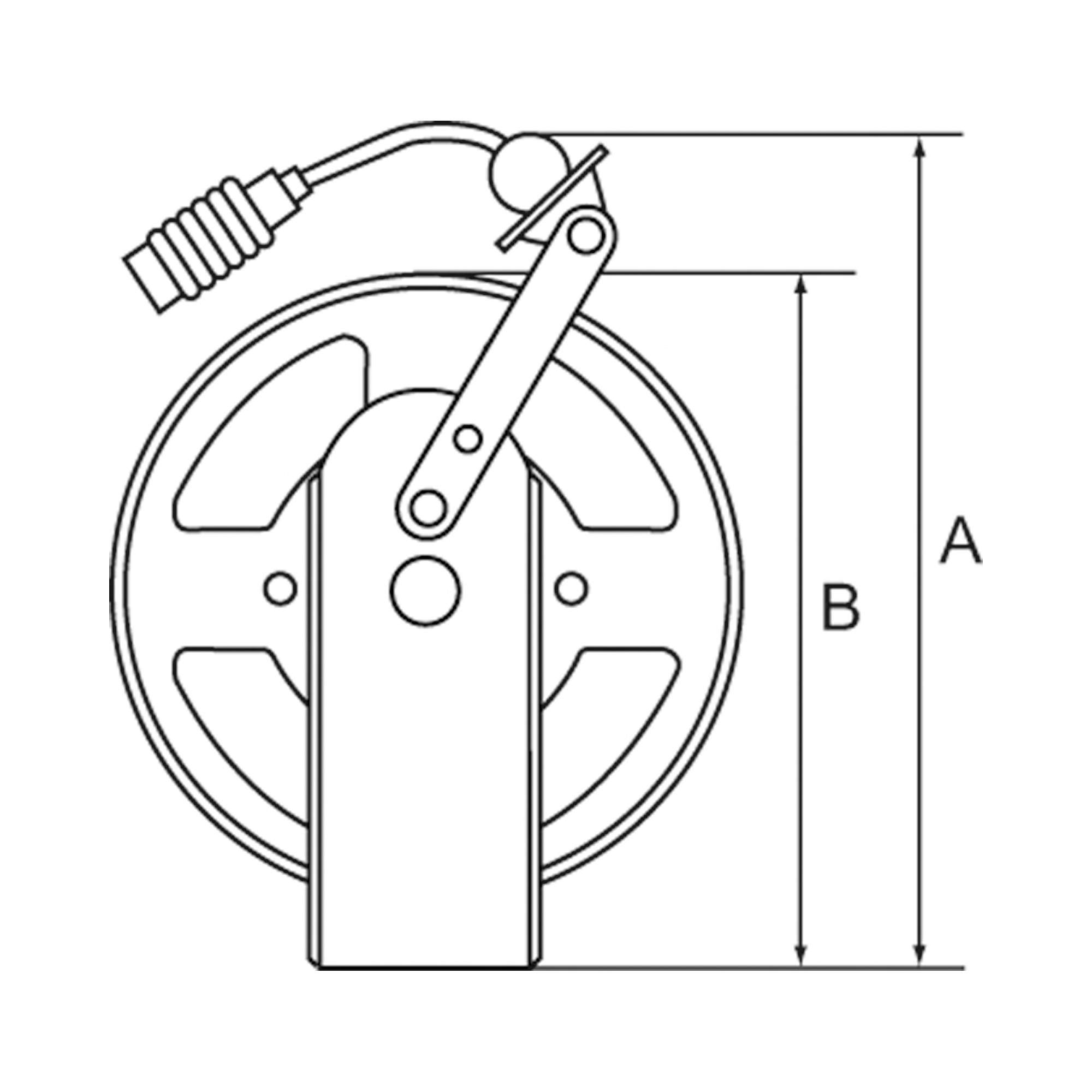

Hose reel for compressed air / water, PU hose ø 12x8, 15 m - Riegler 113972

Hose reel for compressed air / water, PU hose ø 12x8, Operating temperature -10 °C to 40 °C, PN max. 10 bar, Hose length 15 m Heavy-duty steel design for industrial applications. Blue, powder-coated housing. An automatic latching mechanism allows the hose to be engaged at any length. Enclosed spring. Precise locking device for continuous feeding or latching mechanism. Reel guide prevents excessive wear on the hose.

Technical data

Standards and origin

• Customs tariff number: 39173900
• Country of origin: NL

About Hose reels

A hose reel keeps the compressed air or water line off the floor at the workstation and pulls the hose back in after use. The 25 items in this group are rated for operating pressures of 9 to 20 bar. Taken together, the series cover a permitted temperature range from -45 °C to 85 °C.

What matters when choosing

• Max. operating pressure 9 to 20 bar: what counts is the highest pressure at the point of use, including peaks. Water applications sit at the lower end of the range, workshop compressed air at the upper end.
• Housing in powder-coated blue steel or in impact-resistant polypropylene: steel suits permanent wall and ceiling mounting in workshop service, polypropylene where low weight matters.
• Operating temperature: lower limits across the series run from -45 °C to 5 °C, upper limits from 40 °C to 85 °C. For unheated halls and outdoor mounting the lower limit decides.
• Hose length and hose material are listed per item. Length follows the distance between mounting point and the furthest point of use, the material follows the medium.
• Swivel capability and the inlet and outlet threads are given per item. A swivelling reel follows the working area without the hose chafing against the housing.

Typical applications

• Compressed air supply to assembly and fastening stations in production
• Car and commercial vehicle workshops where the hose is pulled out many times a day
• Water draw-off for cleaning work in halls and wash bays
• Ceiling mounting above assembly lines where hoses must not lie on the floor
• Mobile use on changing construction sites with a portable frame

Depending on the series the housing is powder-coated steel or impact-resistant polypropylene. The 25 items in this group come from production in the Netherlands, Sweden, Germany, Italy and India.
