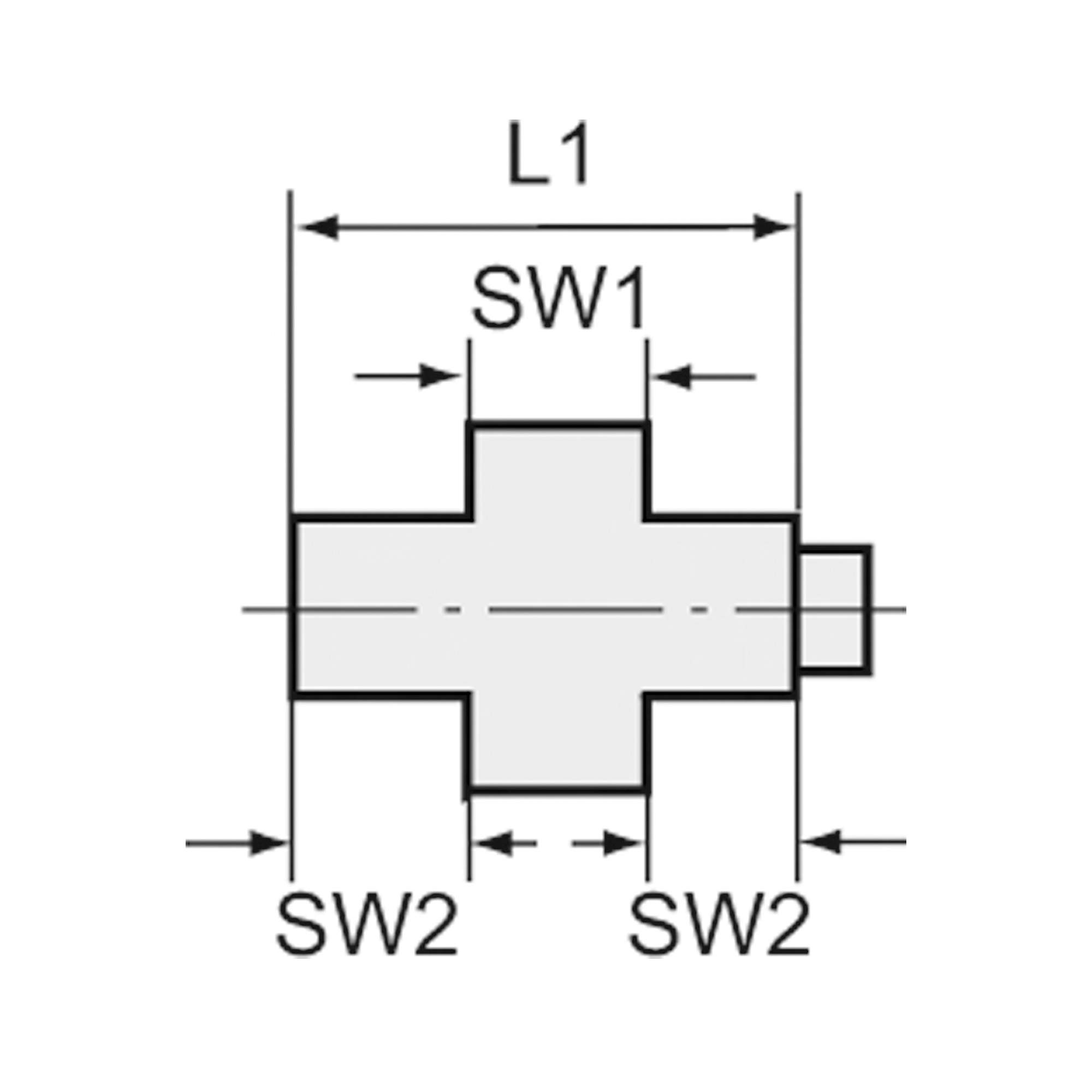

Removable Double threaded nipple, IT / ET, conical sealing, G 1/4 - Riegler 111938

Rem. Double threaded nipple, Interior / exterior thread, con. sealing, G 1/4, Working pressure max. 10 bar, Stainless steel 1.4408

Technical data

Standards and origin

• Standard thread: DIN EN ISO 228-1
• Customs tariff number: 73072910
• Country of origin: CN

About Detachable double nipples

Removable double threaded nipples join two connections and can be undone later without turning or dismantling the pipe run. The series holds 105 items with threads from G 1/4 female to G 2 female and a maximum working pressure of 10 to 25 bar.

What matters when choosing

• Thread 1 runs from G 1/4 female to G 2 female, or Rp 1/4 to Rp 2, and follows the fixed port on the component.
• Thread 2 defines the body style. R 1/4 male to R 2 male gives a female to male transition, a second female thread joins two nipples together.
• The thread standard is DIN EN ISO 228-1 or ISO 7-1. Parallel threads seal flat on the shoulder, tapered threads seal in the thread itself, so the mating part decides.
• Maximum working pressure lies between 10 and 25 bar. Check it against the line pressure before fixing the size.
• Material and seal set the temperature range. The catalogue lists brass CW614N, electroplated nickel-plated brass CW614N and PTFE, with the seal made of PTFE.

Typical applications

• Break points in compressed air lines that are opened for servicing
• Mounting valves and pressure gauges that have to be swapped without turning the pipe
• Joining two pipe ends in plant construction where neither side can rotate
• Female to male transitions on manifolds
• Test rigs and measuring setups that are rebuilt frequently

The materials given are brass CW614N and electroplated nickel-plated brass CW614N, with PTFE as the seal. Where an operating temperature is stated, the upper limit is 150 °C.
