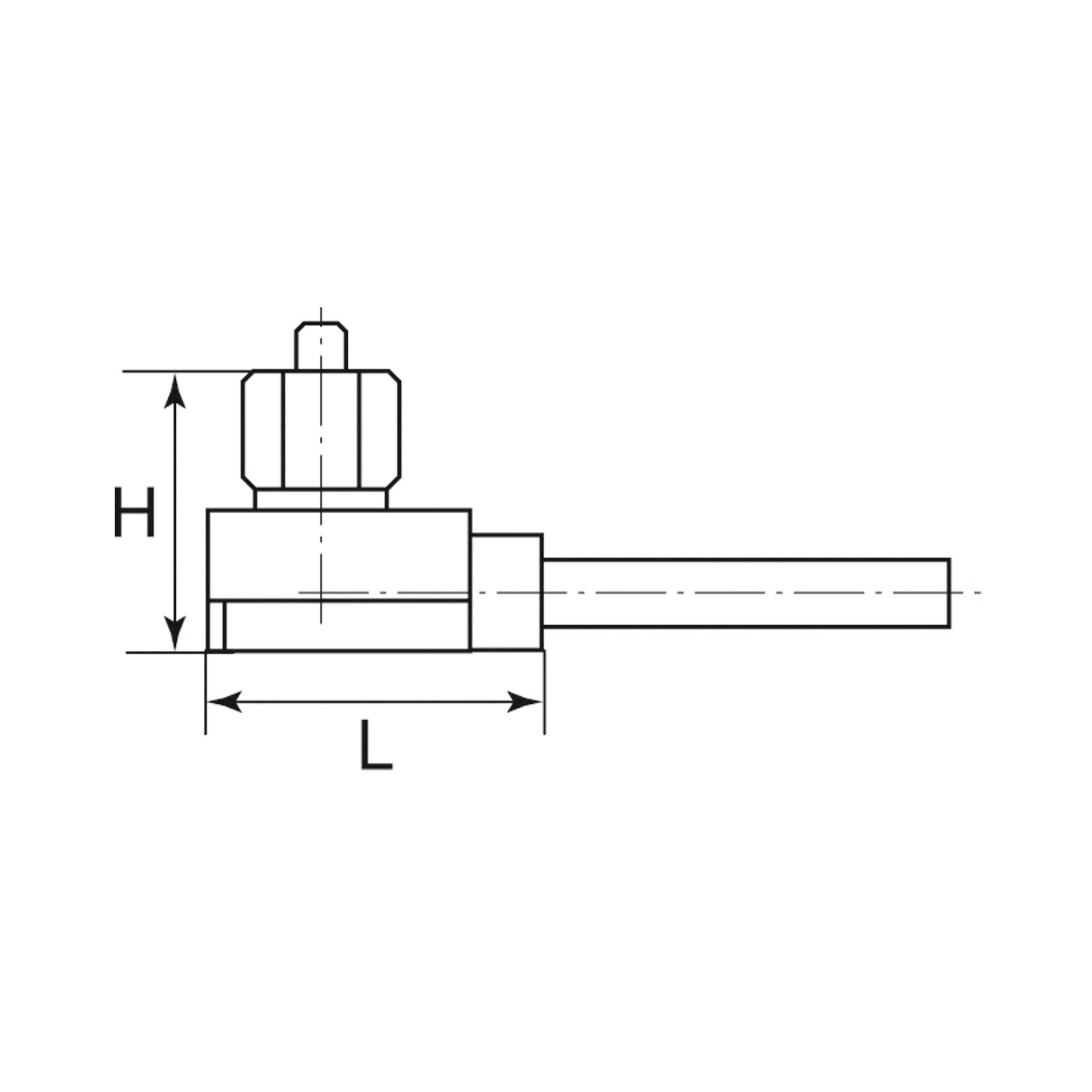

Vacuum sensor, Mini design, Analogue sensor - Riegler 108422

Vacuum sensor, Mini design, Analogue sensor, Measurement range -1 - 0 bar, 10-24 V DC, Connection M5 ET, Temp. 0°C to 50°C, IP 40 Mini-sensor with housing and connection cable, analogue or digital output signal. Minimum size and low weight combined with high measuring accuracy. Applications: Measurement of vacuum values close to the suction padRemote evaluation of the signalsProcessing of the output signals in a PLC, for example

Technical data

Standards and origin

• Customs tariff number: 90262020
• Country of origin: DE

About System additions

System accessories brings together the parts used to monitor, connect and level a vacuum system: sensors, pressure switches, spring plungers and connecting pieces. The 24 items use threads from M5 to G 1/2 and overall lengths of 15.5 to 154 mm. The electrical devices are rated for 0 °C to 80 °C.

What matters when choosing

• Thread 1 and thread 2: available as M5 ET, M10x1.25 ET and G 1/8, G 1/4 and G 1/2, each as internal and external thread. Both ends have to match the suction cup and the vacuum generator.
• Length 15.5 to 154 mm: on spring plungers the overall length together with the spring travel sets how much height difference can be levelled out at the workpiece and how much installation space is needed.
• Housing in aluminium or polycarbonate: aluminium for mechanically loaded positions, polycarbonate for light devices mounted right at the gripper.
• Measuring range max. 0 to 10 bar: sensors for pure vacuum monitoring end at 0 bar, pressure switches also cover positive pressure. The working point of the system has to fall inside the range.
• Protection IP 40 and M5 ET connection on the mini sensors: both limit the mounting position and the ambient conditions and should be checked before selection.

Typical applications

• Measuring the vacuum level at the suction cup itself instead of centrally at the generator
• Safety monitoring and cycle time optimisation on handling systems
• Handling workpieces with height differences such as curved sheet metal parts
• Placing suction cups gently on sensitive workpieces through the spring travel
• Connecting suction cups and vacuum lines where installation space is tight

The devices are released for dry, oil-free air and non-aggressive gases, the sensors with IP 40 protection. All 24 items in this group are manufactured in Germany.
