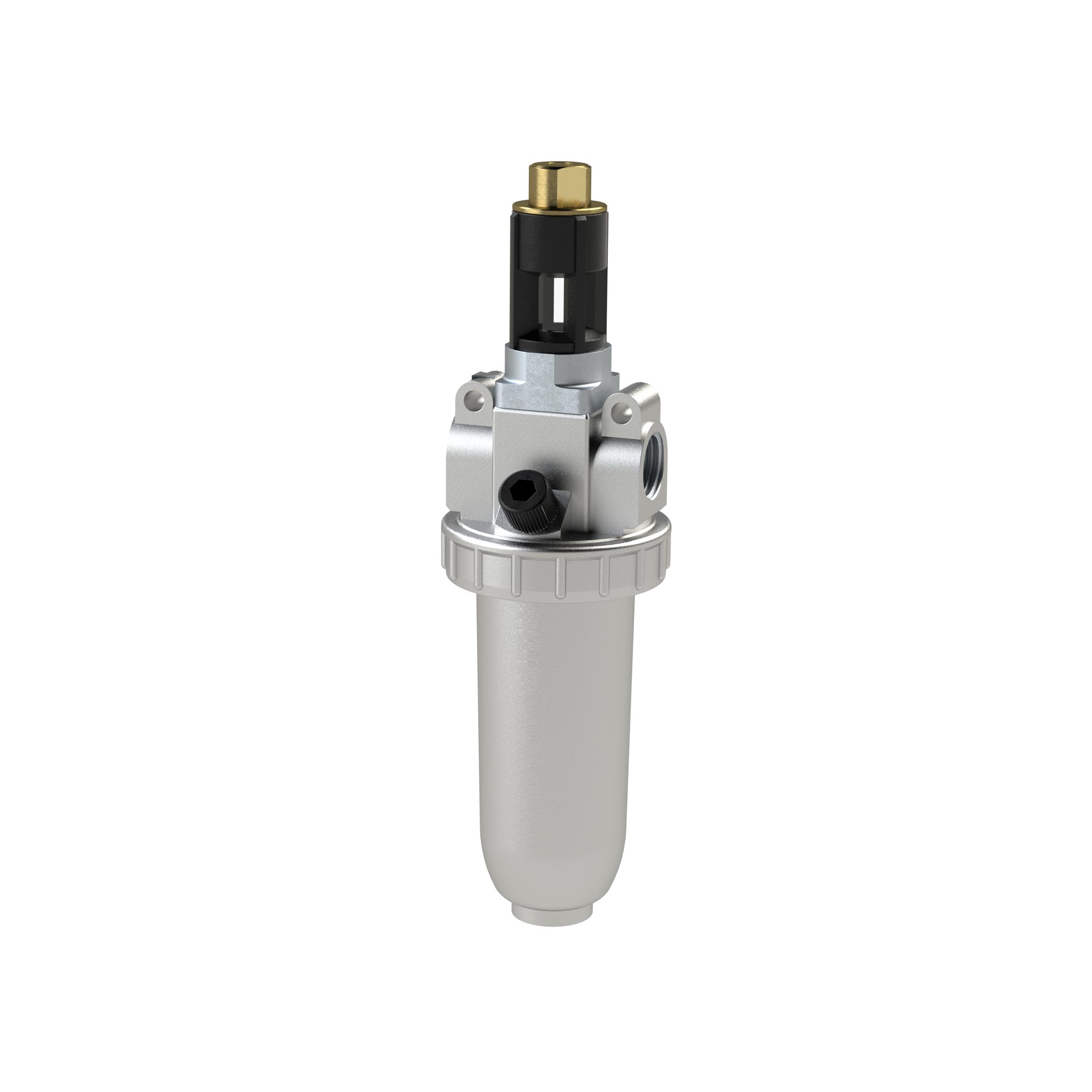

Mist oiler »Standard« with Metal container, Size 3, G 1 - Riegler 101035

Mist oiler »Standard«, metal cont., metal drip cap, size 3, G 1, input pressure max. 16 bar, med./ambient temp. max. 60 °C Proportional lubricators, oil can be filled under pressure.

Technical data

Standards and origin

• Customs tariff number: 84243010
• Country of origin: DE

About Oilers

A lubricator adds a metered amount of oil to the compressed air so that cylinders, valves and air tools stay lubricated. It sits at the end of the FRL assembly behind filter and regulator and accepts inlet pressures up to 25 bar. Flow ranges from 650 to 19000 l/min, which covers single tools as well as whole distribution lines.

What matters when choosing

• Size sets the throughput. The range runs from BG 0 to BG 600 with port threads from G 1/8 to G 1 1/2.
• Flow of 650 to 19000 l/min has to match the air demand of the connected equipment. A lubricator chosen too small becomes the bottleneck for the whole line.

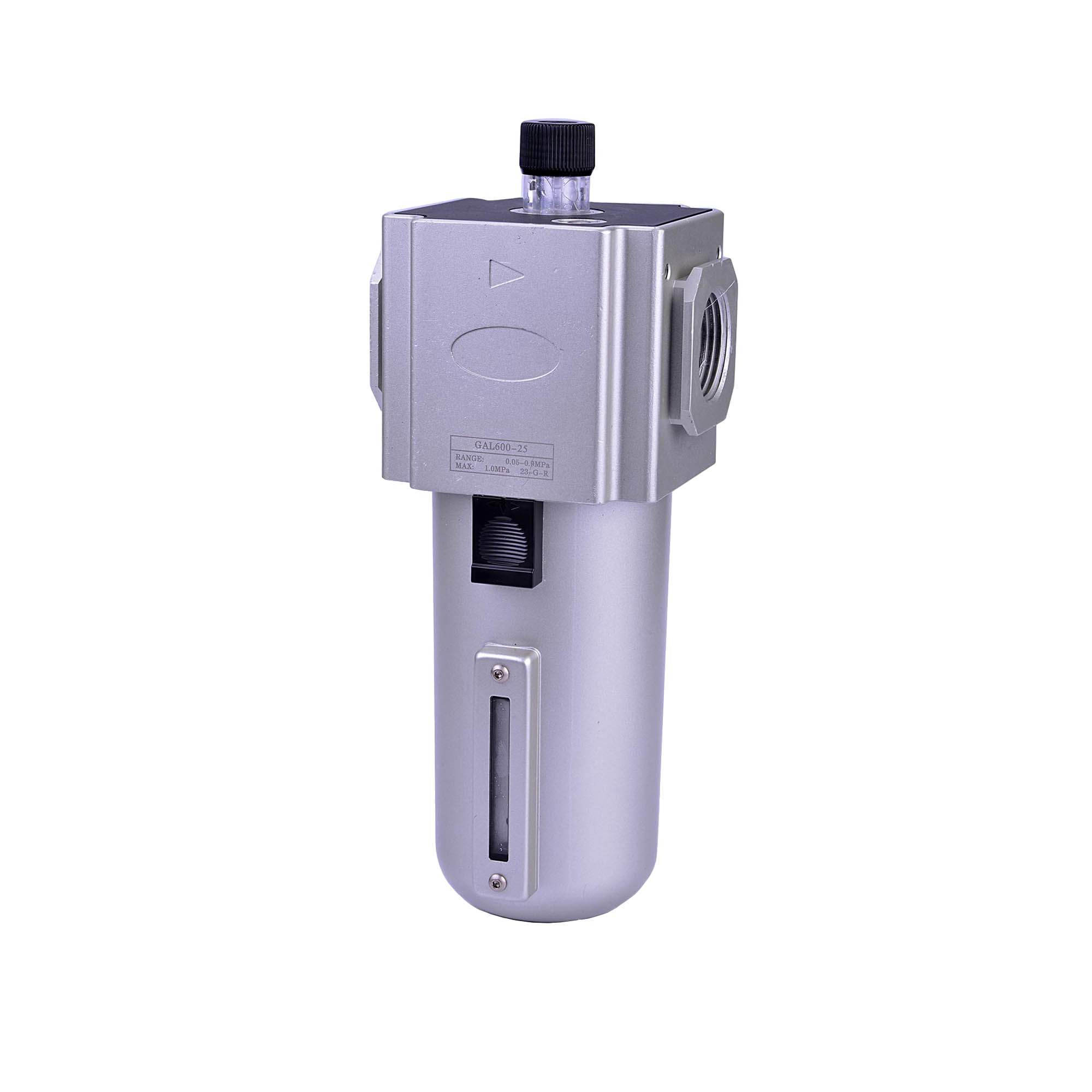

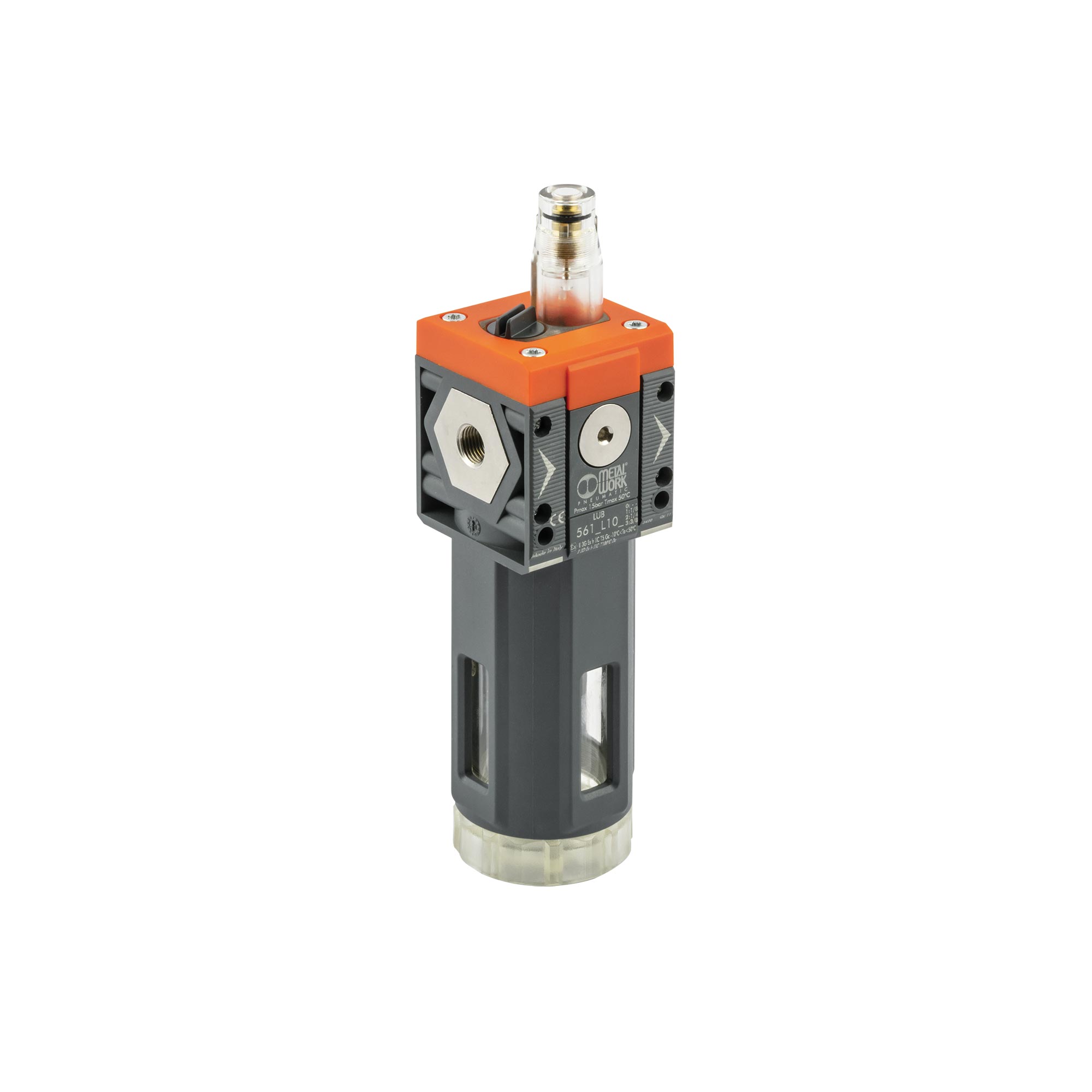

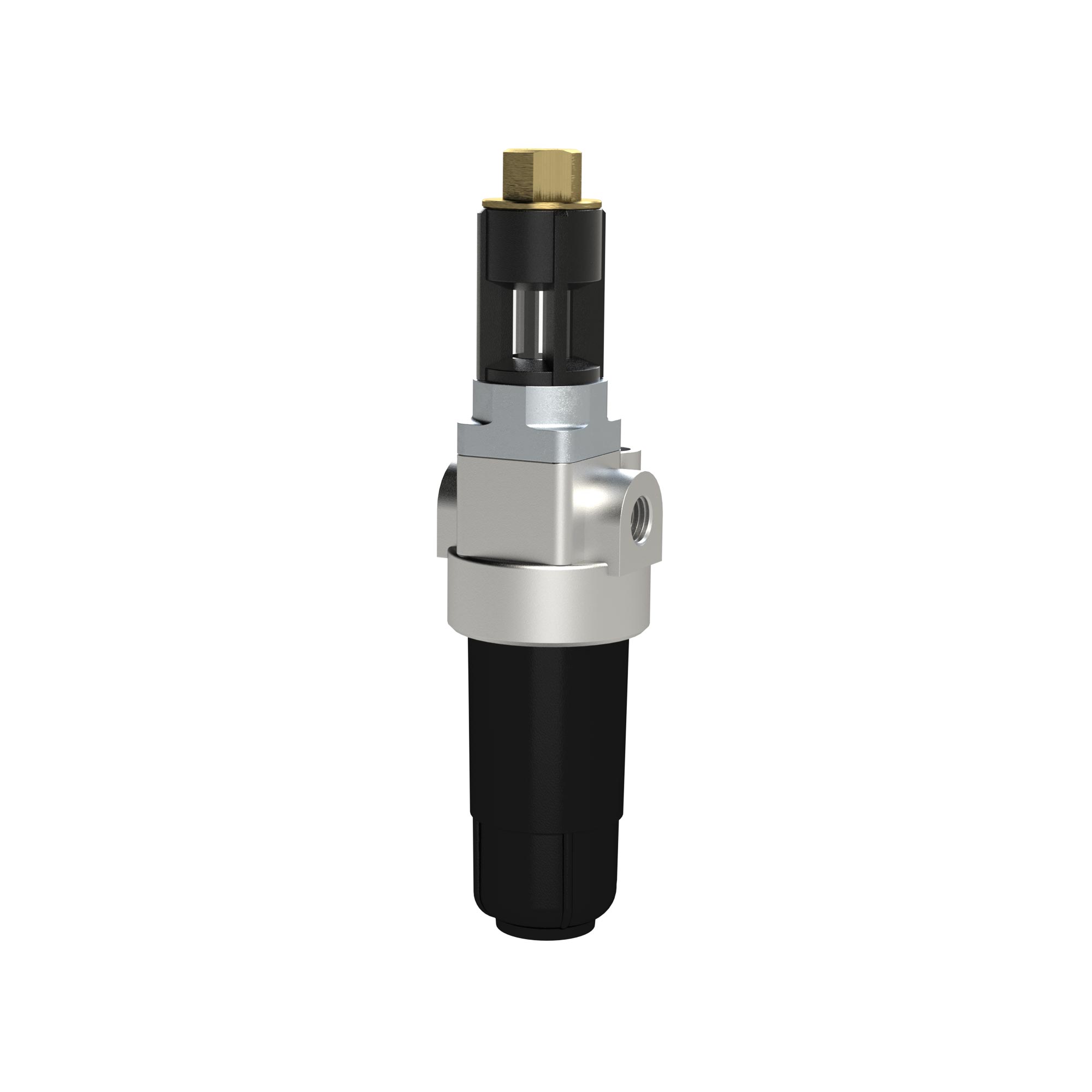

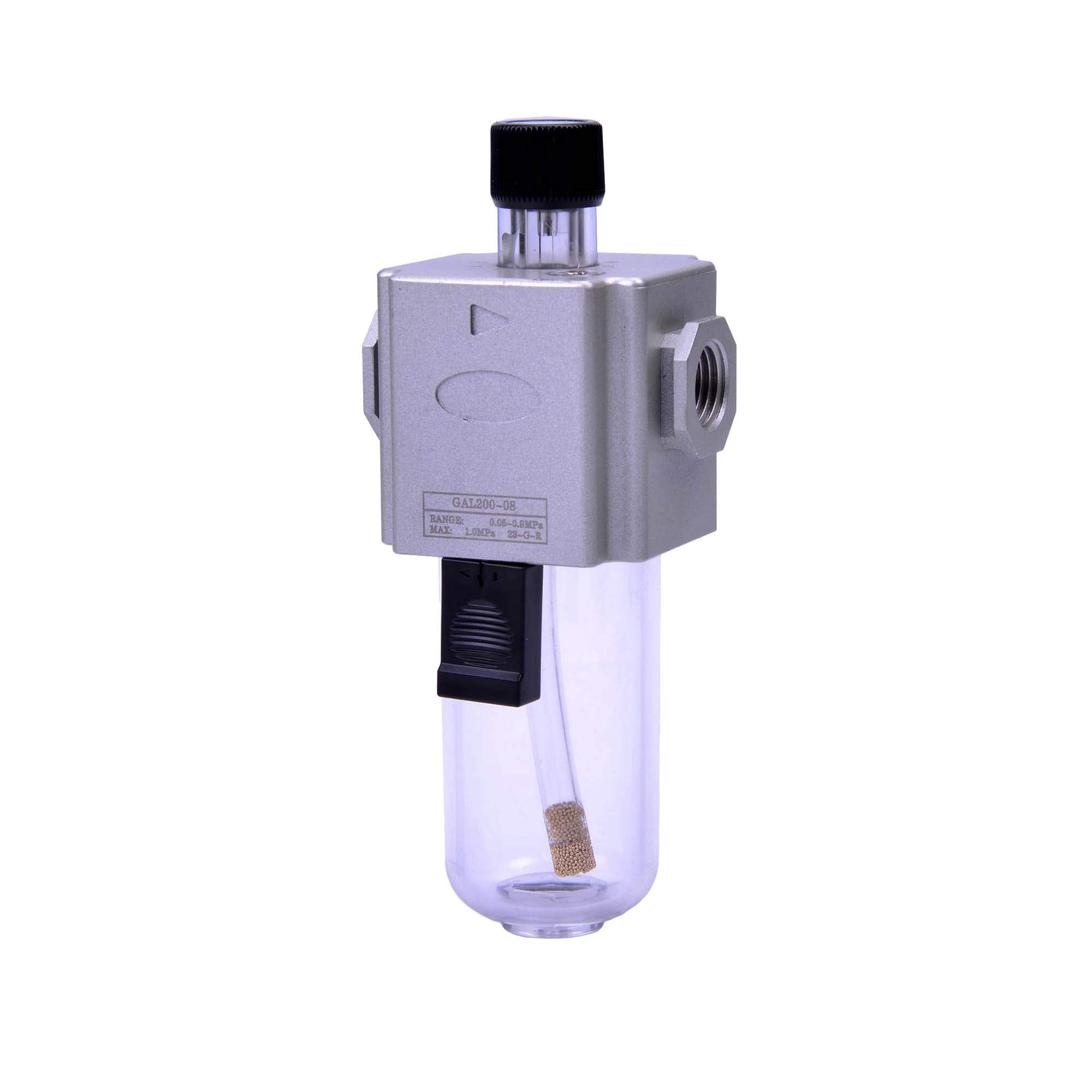

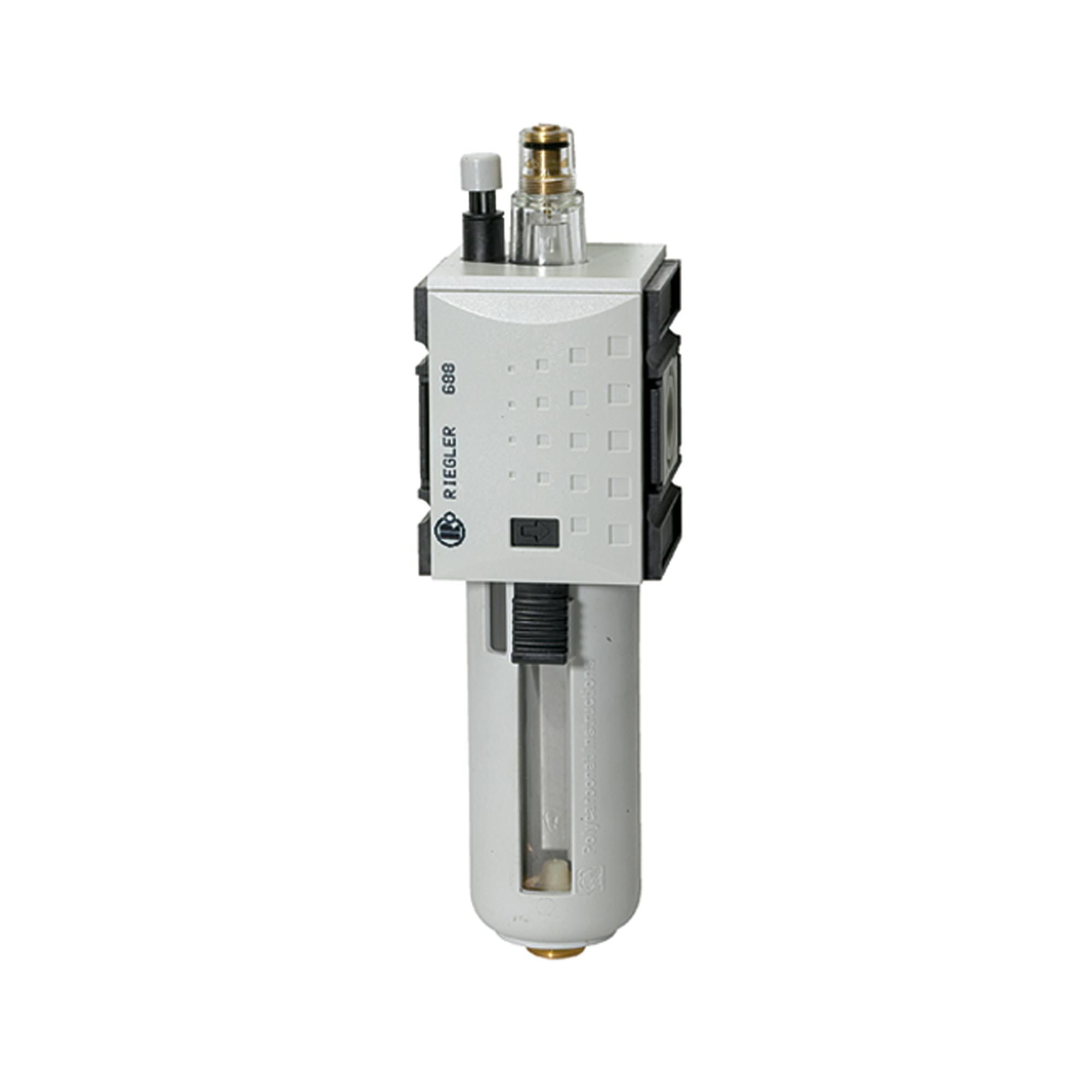

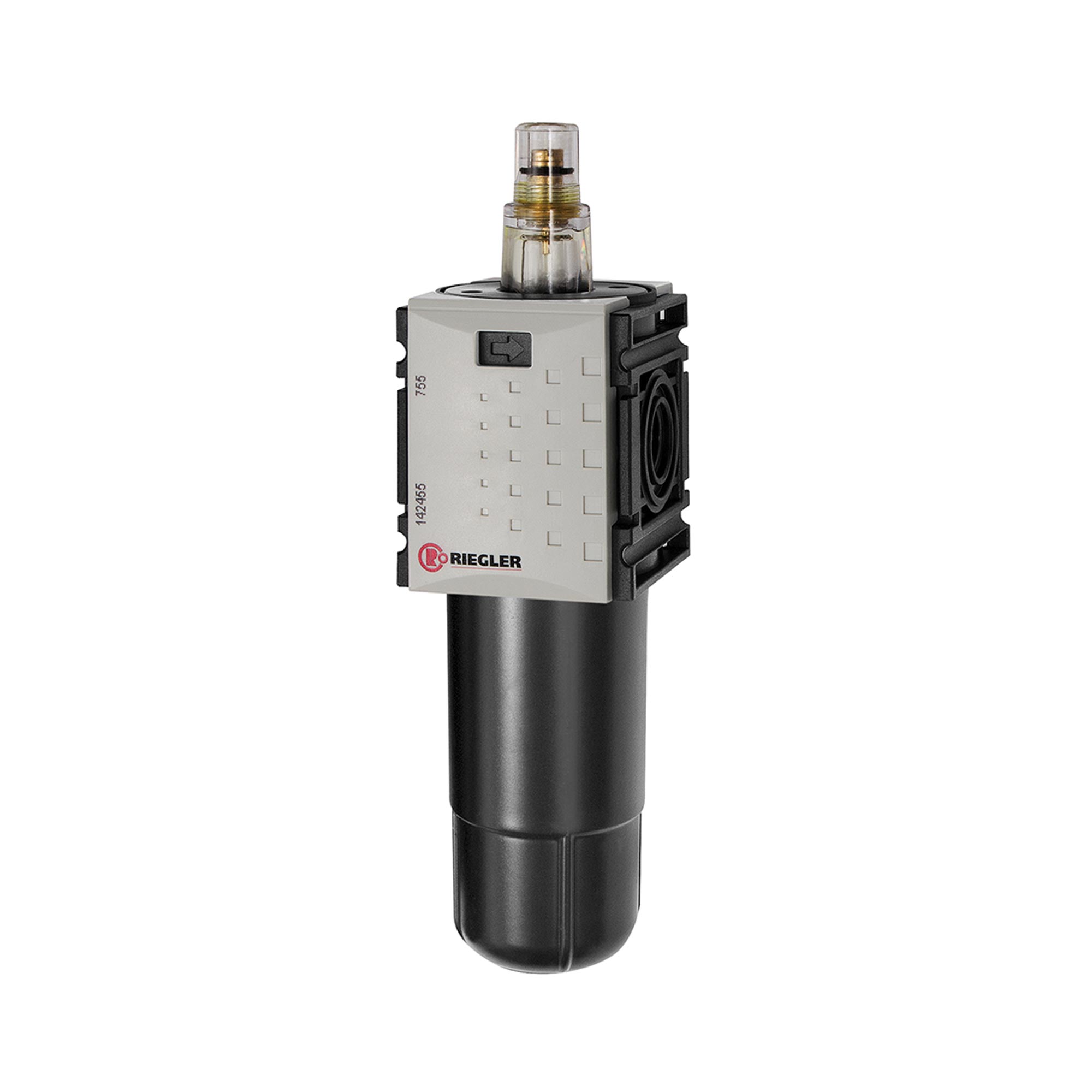

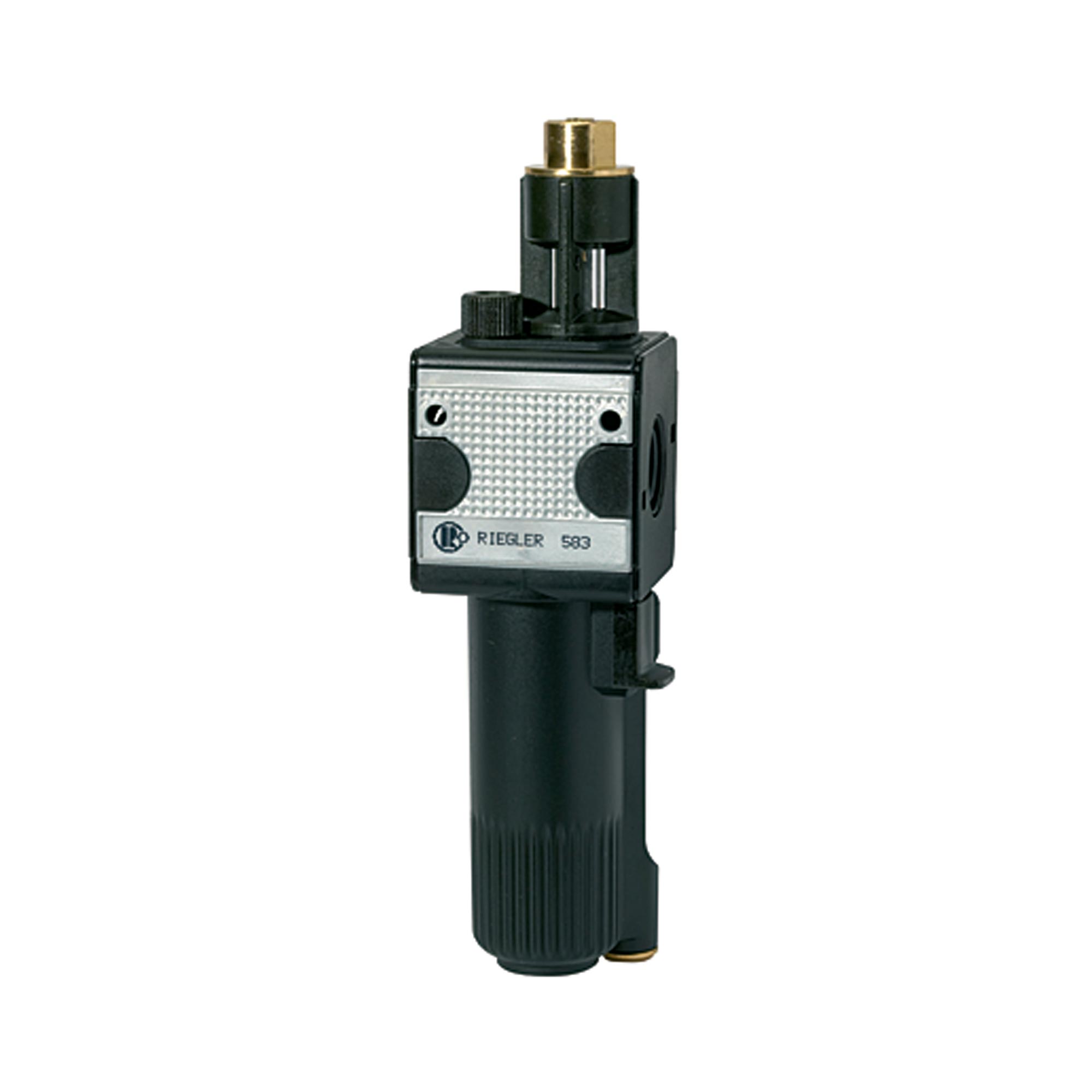

• The unit should fit the FRL assembly already installed. Available series include Standard, multifix, FUTURA, SYNTESI, GA and variobloc, plus the mini versions of each.
• Housings come in zinc die-cast, aluminium die-cast and aluminium as well as in technopolymer and PA66 GF60. Installation position and mechanical load decide the choice.
• Medium temperature runs from -10 °C to 80 °C depending on version, with nominal sizes between DN 5 and DN 45.

Typical applications

• FRL assemblies at the machine inlet, together with filter and pressure regulator
• Air tool supply at assembly benches and workshop stations
• Lubrication of cylinders and valves in handling and packaging equipment
• Workshop air distribution where several consumers share one line
• Retrofit and replacement in existing plant that continues a series such as multifix or variobloc

All versions seal with NBR and are rated for compressed air and neutral gases. Housing materials range from zinc and aluminium die-cast to PA66 GF60 and technopolymer, with production in Germany, Italy, China and Taiwan.
