Provides a steady secondary pressure and thus smooth machine operation. The connection is made via thread R 3/4". The pressure setting range covers 1.5 - 6 bar.
Pressure reducing valve, R 3/4", 1.5 - 6 bar, brass, temperature range +5 to +30 °C
RESIDEO BRAUKMANN
Original product
Net price (excl. VAT)
€139.43
Item
FL-003161
Manufacturer no.
DRW 34
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.DRW 34
EAN4050571274566
Customs tariff number84811005
ConditionNew
Artikel
FL-003161
Frequently Bought Together
-
This Item:
€139.43
-
Digital pressure gauge, G 1/4", 0 - 4 bar, plastic, accuracy class 0.5, protection IP 65
€361.59
-
Safety relief valve G 1", factory set and sealed, DN 20, 4 bar, stainless steel 1.4404
€505.10
Total price
The pressure reducing valve keeps the working pressure downstream constant even when the inlet pressure fluctuates. The pressure setting range extends over 1.5 - 6 bar. The body is made of brass. The device is screwed in with R 3/4". The temperature range extends over +5 to +30 °C.
Benefits
- Released for drinking water, Betriebswasser (neutral)
- Pressure setting range 1.5 - 6 bar as the leading rating of the device
- Connection thread R 3/4" for direct installation in the line
- Temperature range +5 to +30 °C for use in the workshop and in the plant
- Material brass determines strength and resistance of the part
Technical data
| Property | Value |
|---|---|
| Thread | R 3/4" |
| Max. flow rate [l/min] | 52 |
| Pressure setting range [bar] | 1.5 - 6 |
| L1 [mm] | 90 |
| L2 [mm] | 160 |
| H [mm] | 147 |
| H1 [mm] | 89 |
| Kv value [m³/h] | 2.3 |
| Body material | brass |
| Temperature range | +5 to +30 °C |
| Media | drinking water, Betriebswasser (neutral) |
Applications
Assembly lines and manual workstations, pneumatic drives, painting and cleaning technology, laboratory supply.
| Hersteller-Nr | DRW 34 |
|---|---|
| Manufacturer | Resideo Braukmann |
| EAN | 4050571274566 |
| Weight | 0.850000 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Druckregelbereich [bar] | 1,5 - 6 |
| Thread | R 3/4 |
Customers Who Bought This Item Also Bought

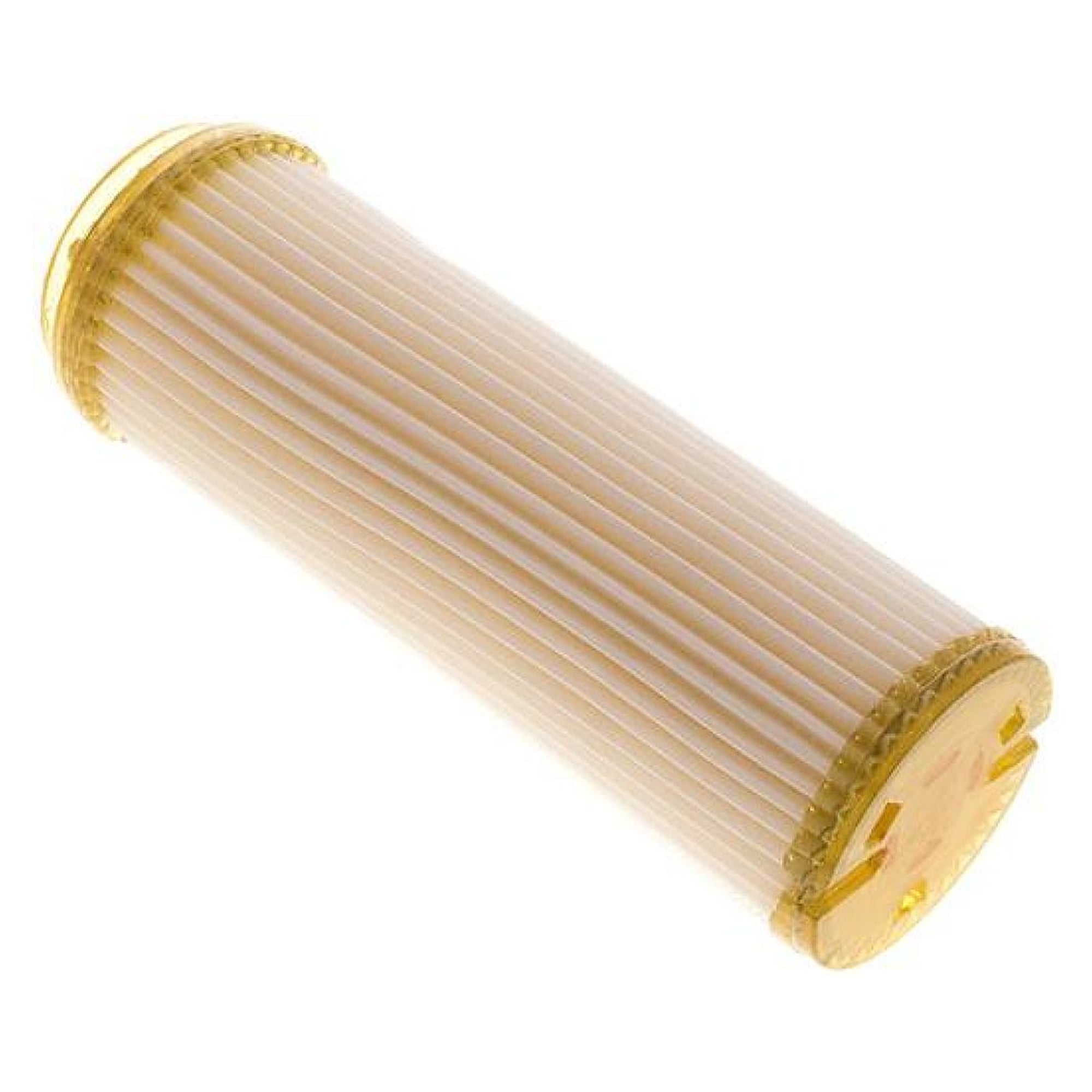

FILTERELEMENT VORFILTER
