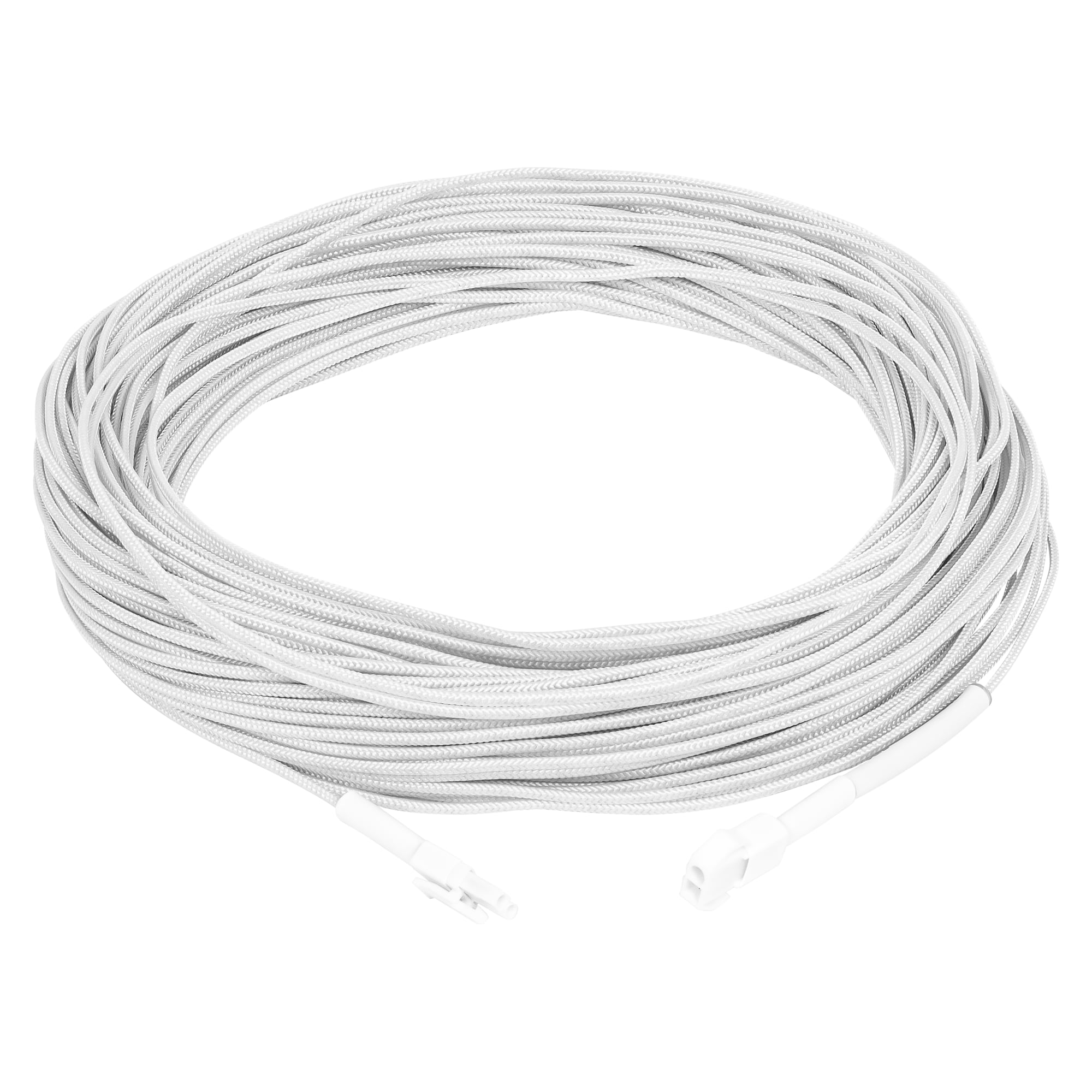

Water leak sensing cable WLD-Sensing cable B, 50 m, Type B, connecting cable not included - HW group 600915

Large raised-floor areas, long pipe runs or whole basements are hard to cover without gaps using spot sensors. The WLD-Sensing cable B monitors a continuous 50 m run and reports just a few drops of conductive liquid to the connected WLD device.

Benefits

• Wide coverage with one cable: 50 m of sensing length in a single zone, and any point along it triggers the alarm.
• Easy to route: No minimum bend radius. The cable keeps working even when knotted or twisted.
• No false alarms from pressure: Stepping on it or pressing it within reasonable limits does not trigger an alarm, so it can run under door thresholds.
• Reusable: Clean, dry and reinstall after a leak. Type B has a smaller diameter than Type A and dries faster.
• Expandable: Same 2-pin locking connector as Type A, so both types can share one WLD zone. Non-sensing extension cables take a zone up to 185 m.

Applications

• Data centres: raised floors of entire rooms and spaces above suspended ceilings
• Liquid cooling: long pipe runs between CDUs, manifolds and racks
• HVAC: air conditioners, chillers and condensate lines
• Basements exposed to flooding or groundwater ingress
• Industrial sites along pipelines, tanks and production lines
• Archives, warehouses and commercial buildings along walls

Compatibility

• Devices with a WLD zone input such as WLD2, SD-WLD, Sensor WLD Relay 1W-UNI and WLD-ECHO
• NB-WLD only with a maximum zone length of 60 m
• Can be combined with WLD sensing cable Type A and WLD-Extension cable AB in the same zone
