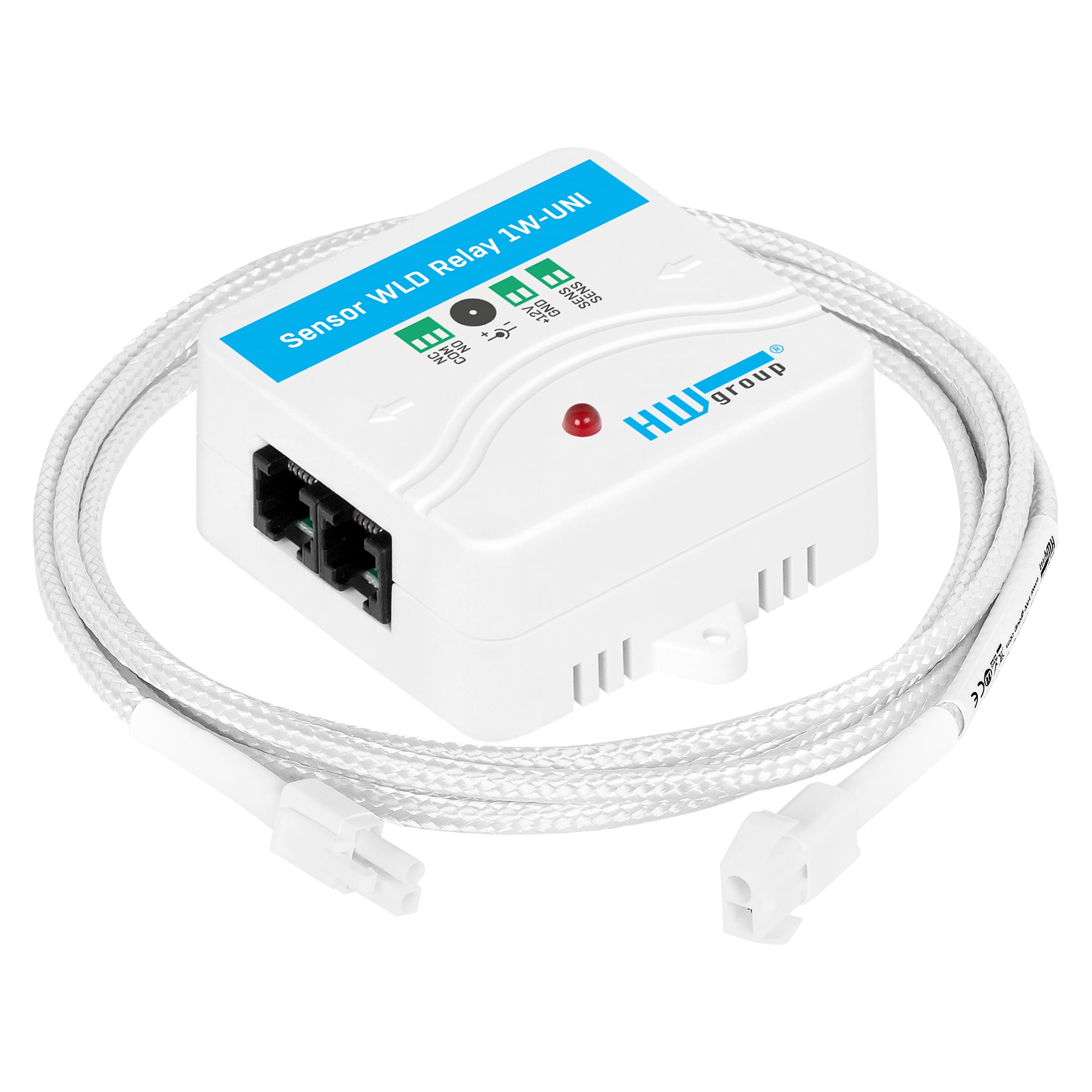

Water leak set HWg-WLD Relay with sensor WLD Relay 1W-UNI, sensing cable A 2+2 m, J-clips, adapter - HW group 600514

This kit covers one leak detection zone completely: sensor, cable, mounting clips and power adapter are all in the box. With the supplied adapter the WLD Relay 1W-UNI switches a relay on its own, while on the RJ11 port of an HW group unit it runs as a standard sensor without separate power. The zone can be extended to 185 m.

Benefits

• Everything in one package: sensor, 2+2 m sensing cable A, 2 J-clips and power adapter.
• Two operating modes: NO/NC relay output rated 50 V and 1 A, or RJ11 sensor powered by the host unit.
• Early warning: a few drops of water, ethylene glycol or other conductive liquid trigger the alarm.
• Expandable: one zone with up to 185 m of cable.
• J-clips hold the sensing cable to the floor so it does not shift after installation.
• Reusable sensing cable with no bend, twist or grip limits.

Applications

• Water detector for security and alarm systems via the relay output
• Water detection under raised floors in server rooms and data centers
• Leak monitoring on pipes and cooling circuits
• Drip trays and air-conditioning outlets
• Adding a leak detection zone to STE2, Poseidon2 or Perseus

Compatibility

• HW group units with RJ11 sensor port (1W-UNI), e.g. STE2, Poseidon2, HWg-Ares, Perseus
• Additional J-clips in packs of 10: HW group 600492
• Longer sensing cable A with connecting cable: HW group 600467 (2+10 m), 600468 (2+50 m)
• Sensor only: WLD Relay 1W-UNI, HW group 600513
