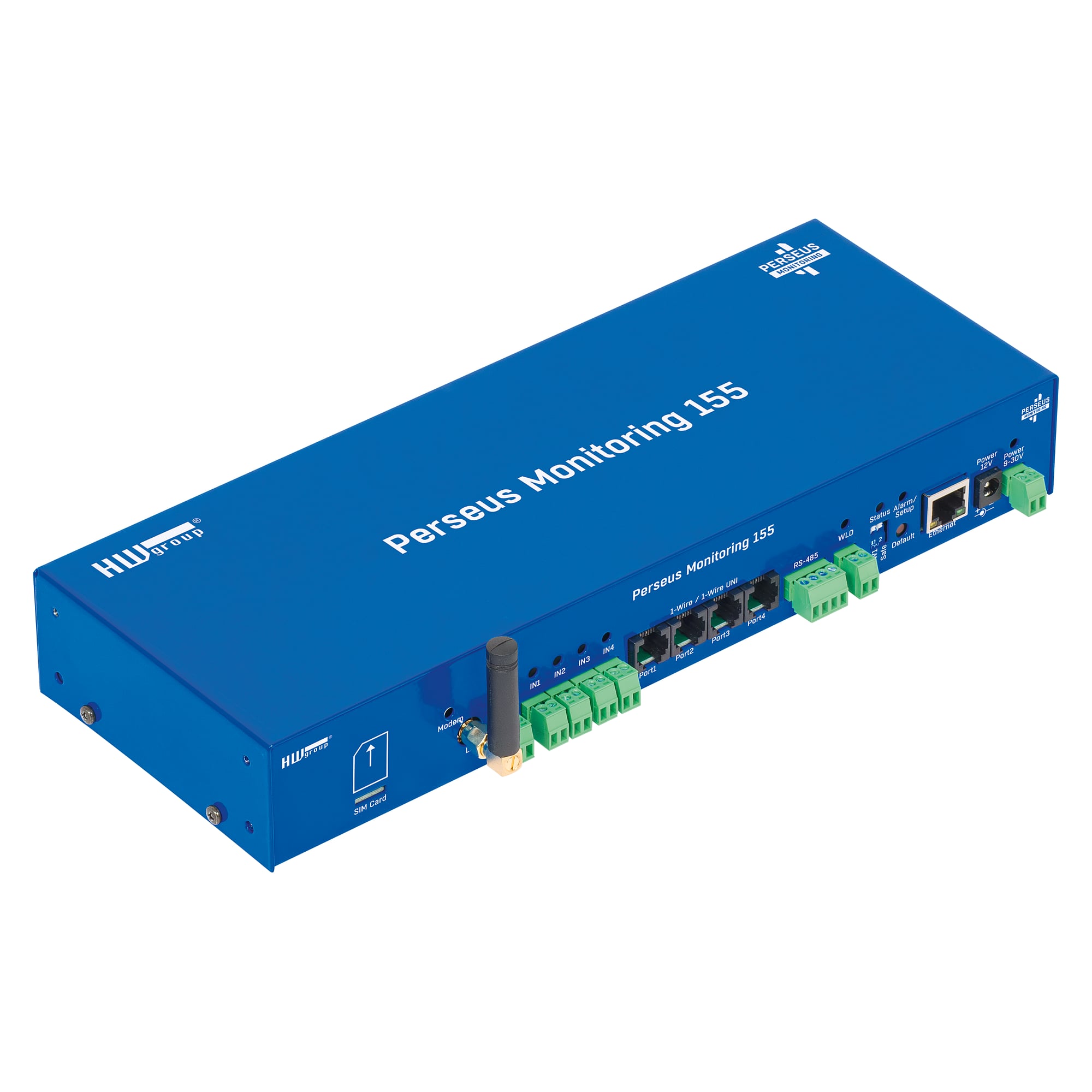

Rack monitoring system Perseus Monitoring 155 Tset with LTE, temperature starter set with antenna - HW group 600865

Rack temperature monitoring that still alerts by SMS or call during a network outage can start with this set, no extra order needed. Unit, power adapter, sensor and LTE antenna ship together, and Perseus Monitoring 155 then grows to up to 100 meters with 1000 variables.

Benefits

• Everything for the first measuring point: 1WR-Temp IP67 sensor with 3 m cable, 12 V, 1.5 A universal power adapter and quad-band LTE pigtail antenna.
• Resilient connectivity: LTE backup keeps the unit operational during an Ethernet outage.
• SMS and call alerts via the internal modem, which can also serve other HW group devices as SMS gateway.
• Plenty of headroom in 1U: 8 RJ11 ports, 16 digital inputs, 4 relays (max. 50 V, 1000 mA), 1 WLD zone and RS-485 for Modbus/RTU.
• Flexible power: besides the adapter, PoE or 48 V DC at 250 mA can be used.

Applications

• Server cabinet temperature monitoring with an alert path independent of the LAN
• Telecommunication installations and base stations with unreliable LAN links
• Remote unmanned server rooms and technical rooms
• Leak monitoring around CDUs and quick disconnects in liquid cooling once a WLD sensing cable is added

Compatibility

• Additional HW group 1-Wire UNI sensors on the RJ11 ports
• HW group WLD sensing cables on the WLD zone
• SMS gateway for other HW group devices on the network
• Meters API: HWg devices such as STE2 R2 via XML, plus devices using SNMP, Modbus/TCP, MQTT or Modbus/RTU
• Portal based on SensDesk technology and the HWg Monitor app for Android and iOS
