Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.

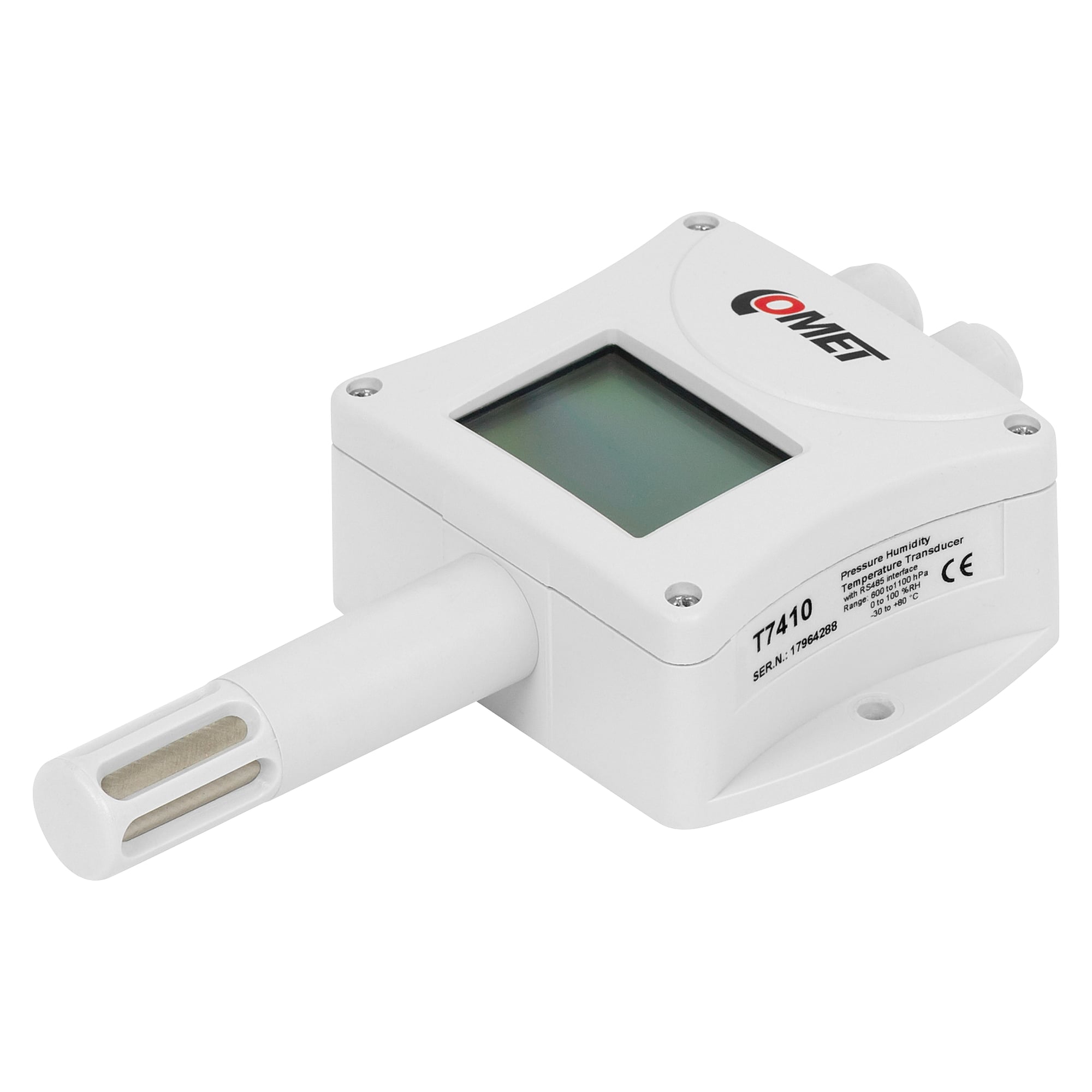

RTU-PHTemp T7410 combination sensor for temperature, relative humidity and barometric pressure with LCD display and RS-485 Modbus RTU. It also calculates dew point, absolute and specific humidity. Rated from -30 to +80 °C and suitable for outdoor use.
Barometric pressure, humidity and temperature sensor RTU-PHTemp T7410, LCD, dew point, RS-485 Modbus RTU - HW group 600876
HW GROUP
Original product
Net price (excl. VAT)
€715.20
Item
HWG-600876
Manufacturer no.
600876
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.600876
Country of originCzechia
Customs tariff number90259090
ConditionNew
Artikel
HWG-600876
Frequently Bought Together
-
This Item:
€715.20
-
Pt100 resistance thermometer, protection IP 69, G 1/2", 1.4571, screw-in thread G 1/2"
€137.29
-
Mini resistance thermometer, TR33, Pt1000, 4-20 mA, M12x1, 100 mm - Riegler 148311
€100.42
Total price
Adding barometric pressure to temperature and humidity readings normally means a second device. The RTU-PHTemp T7410 covers all three, delivers 6 values over Modbus RTU, shows readings on its display and operates from -30 to +80 °C.
Benefits
- Three quantities in one unit: temperature, relative humidity and barometric pressure.
- Calculated dew point, absolute and specific humidity, 6 values in total.
- Readings shown on the display and available in the control system via Modbus RTU at the same time.
- Works standalone with any Modbus RTU master or together with Perseus.
- Draws 10 mA at 12 V, with IP65/40 protection for outdoor use.
Technical data
| Measured values | temperature, relative humidity, barometric pressure, calculated dew point, absolute and specific humidity |
|---|---|
| Number of values | 6 |
| Temperature range | -30 to +80 °C |
| Interface | RS-485, Modbus RTU |
| Display | LCD |
| Connection | terminal block |
| Probe | on housing, no cable |
| Power supply / consumption | 12 V / 10 mA |
| Galvanic isolation | no |
| Operating conditions | -30 to +80 °C, 0-100 % RH |
| Storage conditions | -30 to +60 °C, 5-95 % RH |
| Dimensions (W x H x D) | 168 x 90 x 40 mm, 168 g |
| Protection | IP40 (probe), housing IP65 |
| Mounting | wall, desk |
| Warranty | 24 months |
| Manufacturer part number | 600876 |
Applications
- Outdoor climate at data centers and technical buildings, for example to assess free cooling
- Wide-area measuring networks with many points
- Industrial measurement and control
- Storage and production in the food and pharmaceutical industries
Scope of delivery
- RTU-PHTemp T7410 sensor
Compatibility
- HWg Perseus
- Third-party Modbus RTU masters
| Weight | 0.340000 |
|---|---|
| Manufacturer | HW group |
| Hersteller-Nr | 600876 |
| Zolltarifnummer | 90259090 |
| GPSR Herstellerdaten | HW group s.r.o., Rumunská 26, CZ-120 00 Praha 2, www.hw-group.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Czechia |
| Warranty | 2 years |
| Digital display | Ja |
| Interface | RS-485 |
| Operating voltage | 12 V DC |
| Protection rating | IP40 |
