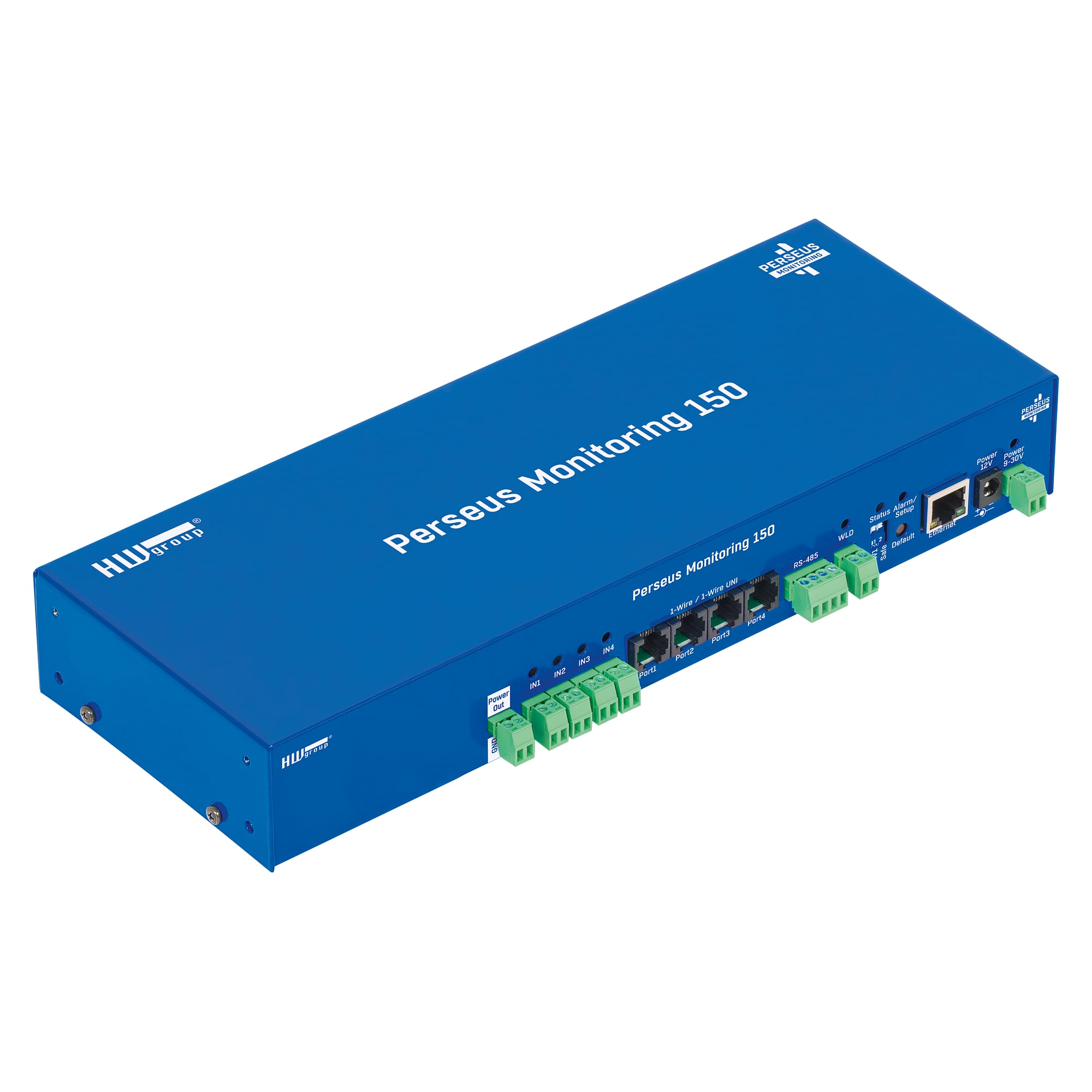

Rack monitoring set Perseus Monitoring 150 Rack Tset with 19-inch brackets, WLD cable and door contact - HW group 600869

A server cabinet needs three checks at minimum: temperature, water and an open door. This set supplies a matching sensor for each, plus a power adapter and brackets for 1U installation. Perseus Monitoring 150 then handles up to 100 meters with 1000 variables.

Benefits

• Three risks covered from day one: 1WR-Temp Rack19 2p temperature sensor, type A WLD sensing cable (2+2 m) and MK4 door contact.

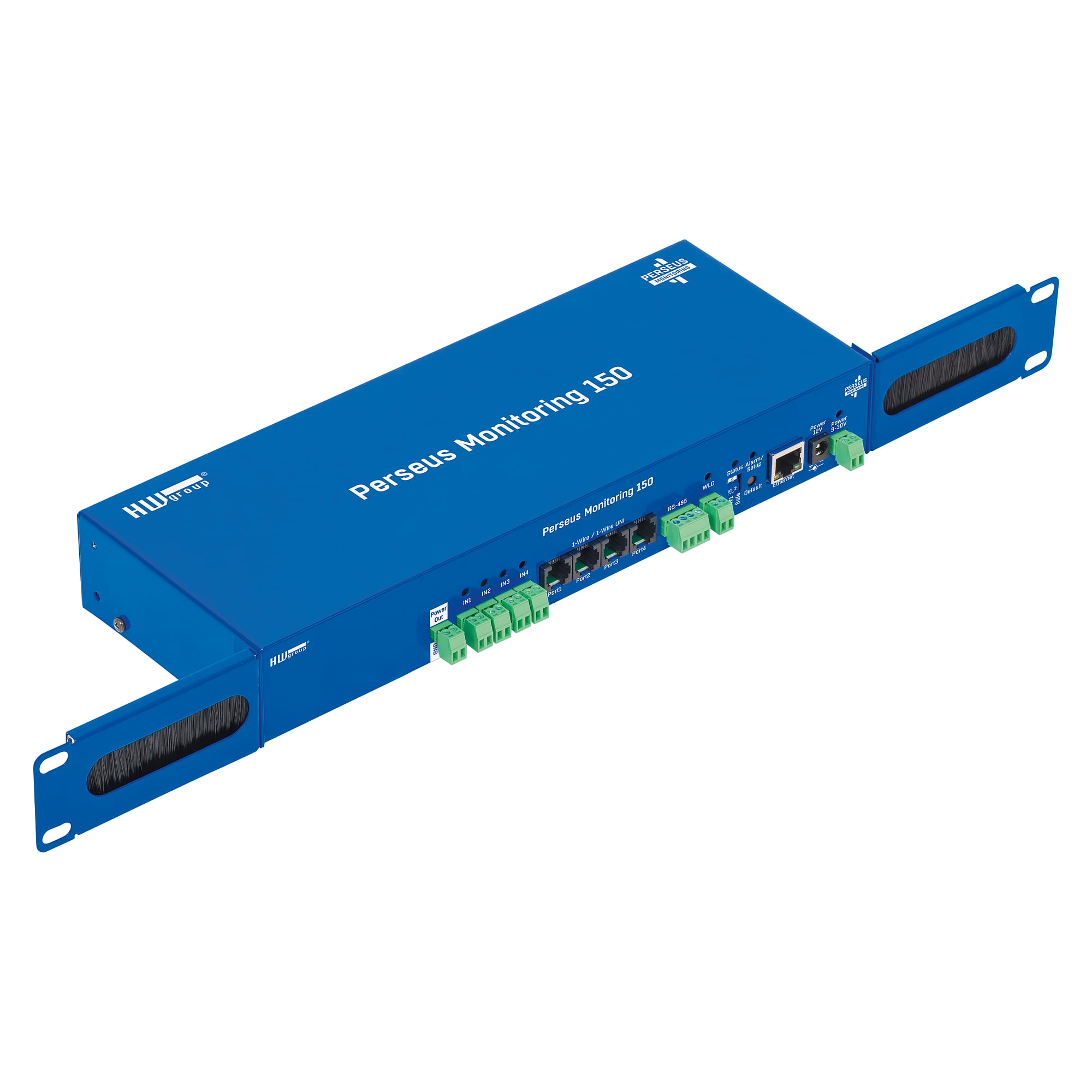

• Straight into the rack: RM2 19-inch brackets for 1U mounting included.
• Plenty of headroom: 8 RJ11 ports for 1-Wire UNI sensors and 16 digital inputs for more doors, smoke detectors or fan failure signals.
• Flexible power: 12 V, 1.5 A universal adapter in the set, or PoE and 48 V DC at 250 mA.
• Local reaction: 4 relay outputs (max. 50 V, 1000 mA) switch cooling or ventilation based on readings.
• DCIM and BMS integration via SNMP v1 and v3, Modbus/TCP, MQTT, BACnet/TCP and XML, Modbus/RTU for third-party devices.

Applications

• Server cabinets and rack rows in data centers, cold and hot aisles
• Liquid-cooled racks: leak monitoring under CDUs and quick disconnects
• Network and telecom cabinets with door access monitoring
• Server rooms and technical rooms with raised floors

Compatibility

• Additional HW group 1-Wire UNI sensors on the RJ11 ports
• Additional dry contact detectors on the 16 digital inputs
• Meters API: HWg devices such as STE2 R2 via XML, plus devices using SNMP, Modbus/TCP, MQTT or Modbus/RTU
• Portal based on SensDesk technology and the HWg Monitor app for Android and iOS
