Vibration detector SS14-v2, 12 V DC, transistor output for digital input, tamper contact - HW group 600758

A forced rack door or a blow against an outside door should raise an alarm before anyone gets in. The SS14-v2 detects shocks and vibration, switches an alarm output rated up to 100 mA at 30 V DC and draws only 9 to 20 mA.

Benefits

• Early warning: reports break-in attempts from vibration or heavy impact on doors, windows or enclosures.
• Adjustable: sensitivity trimmer, turning towards + makes it more sensitive.
• Tamper protection: a normally closed tamper contact reports opening or tearing off the cover, rated 200 mA at 24 V.
• Interference-proof: RF protection up to 30 V/m from 20 to 2000 MHz.

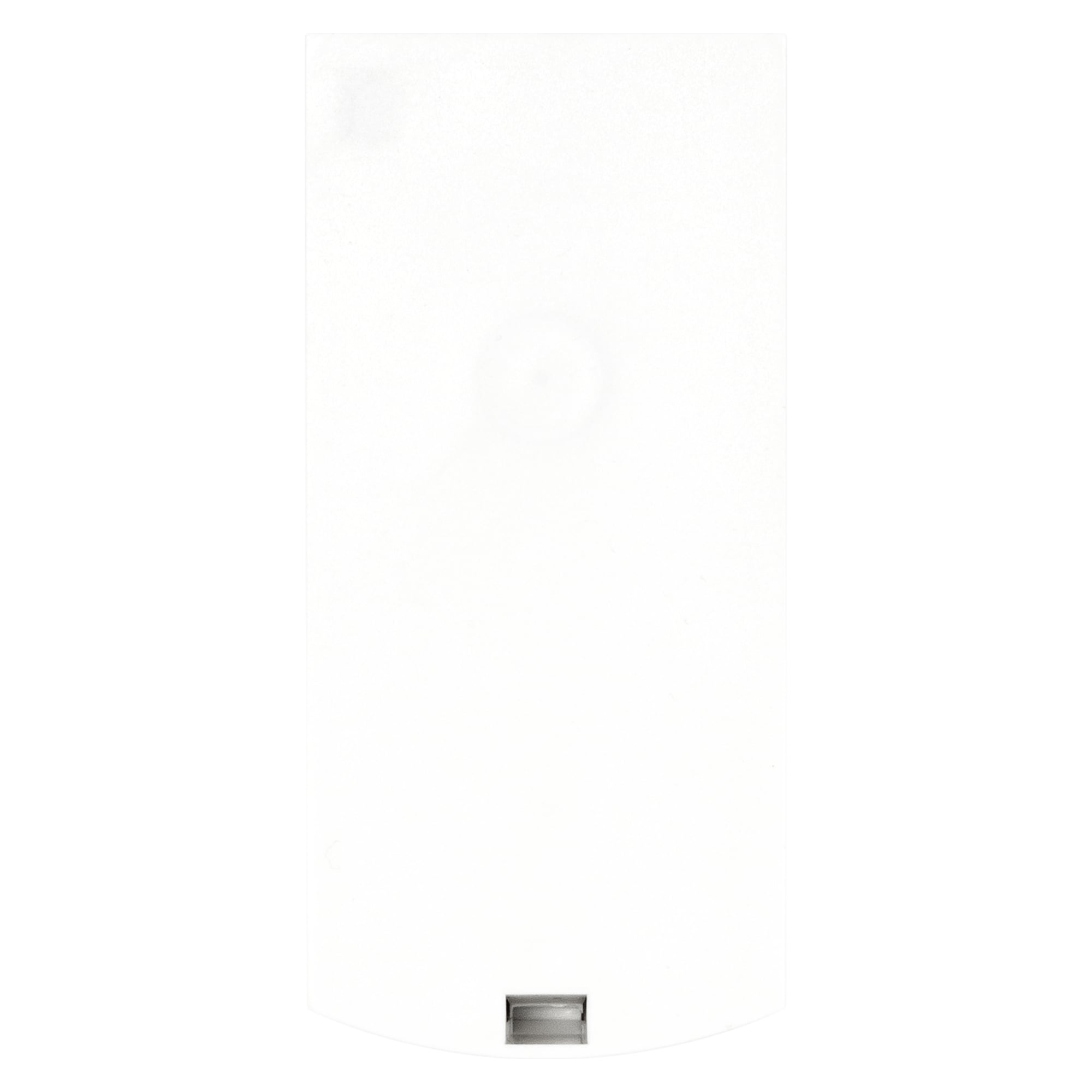

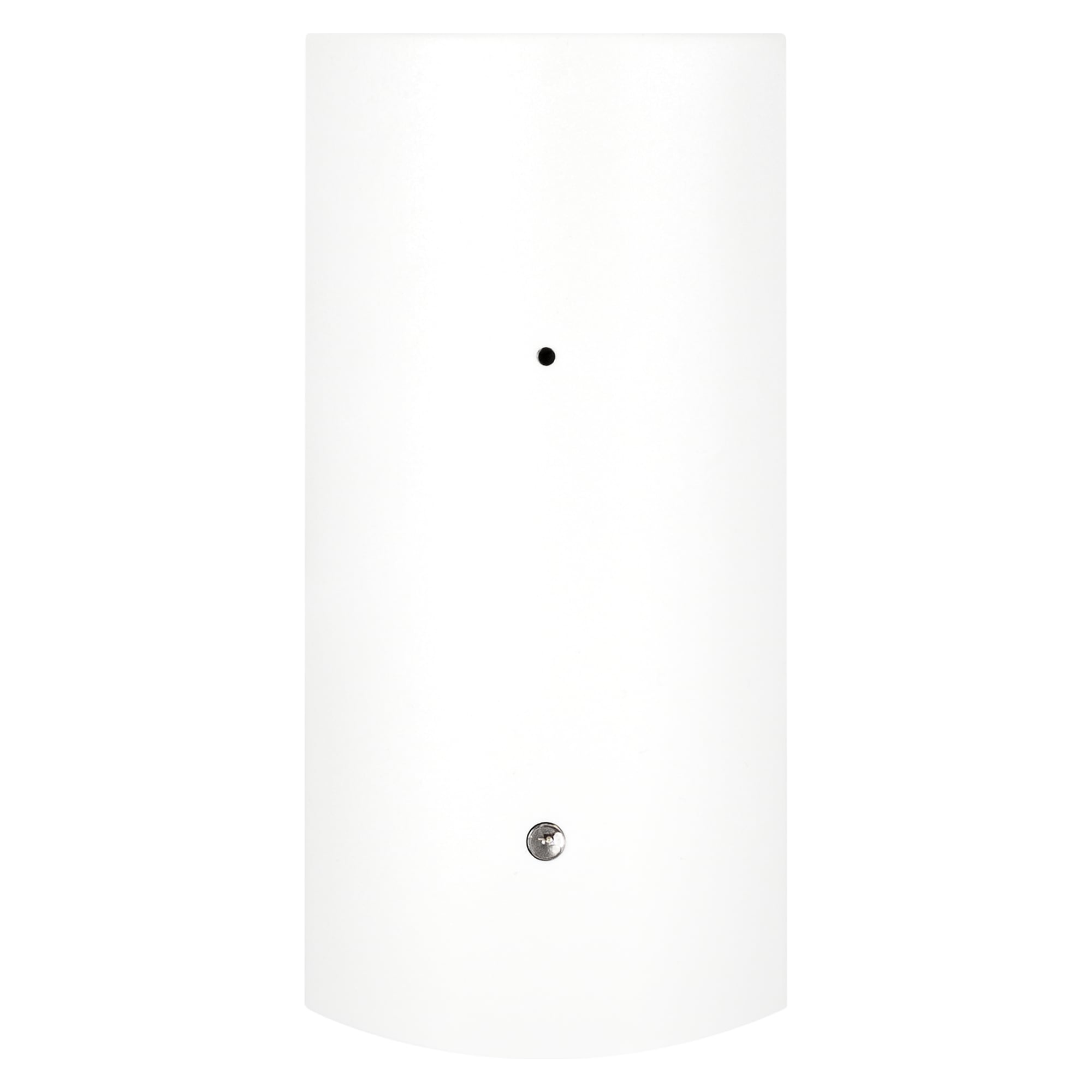

• Compact: 77 x 36 x 20 mm ABS housing with an LED showing the alarm state.

Applications

• Intrusion detection on server room doors and windows
• Protecting racks, control cabinets and distribution boards
• Monitoring cash boxes, enclosures and passages
• Unmanned plant rooms and remote sites

Compatibility

• HW group units with a digital input (DI)
