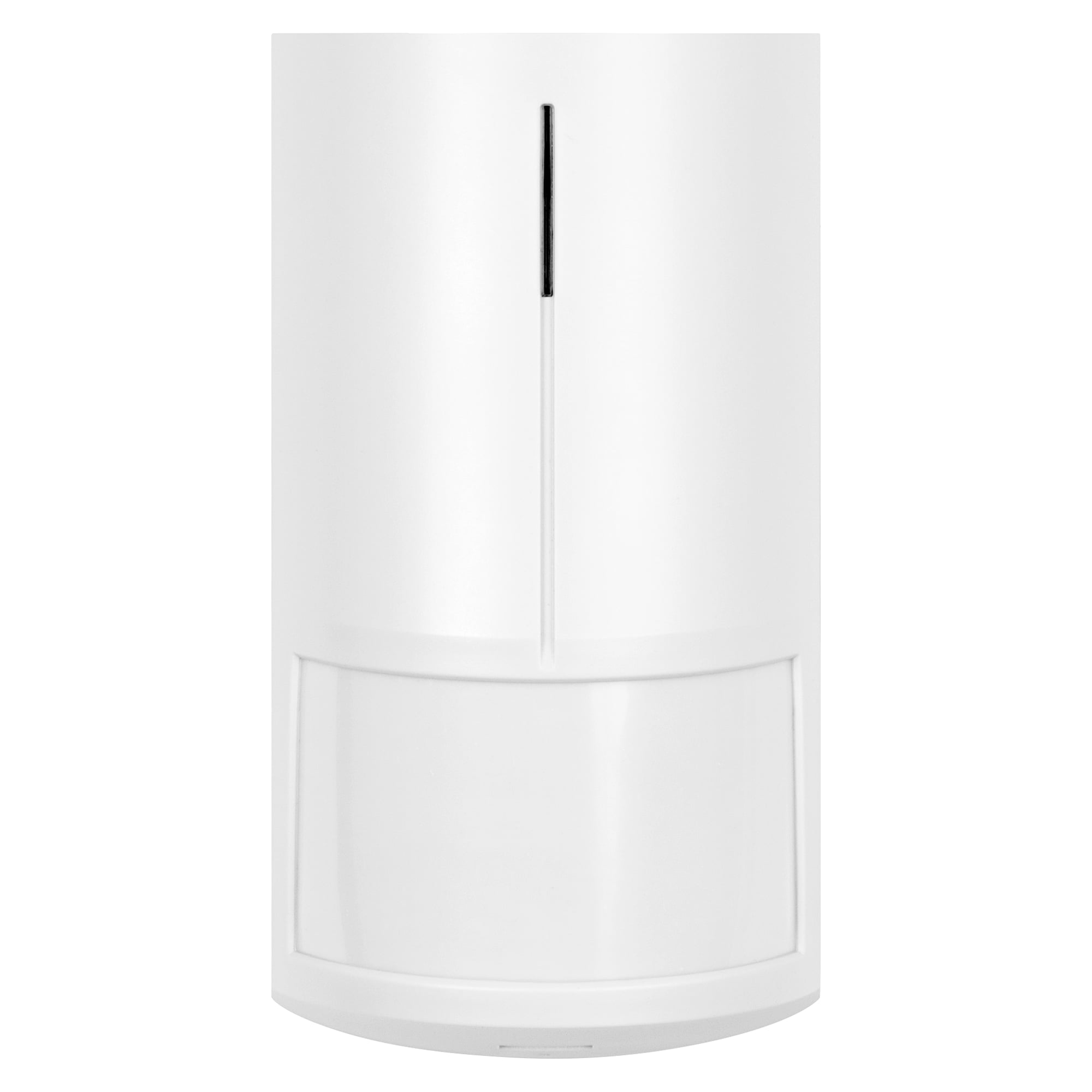

PIR motion detector JS-20, 12 V DC, 120° and 12 m coverage, output for digital input, EN 50131 grade 2 - HW group 600236
PIR motion detector JS-20, 12 V DC, 120° and 12 m coverage, output for digital input, EN 50131 grade 2 - HW group 600236 PIR motion detector JS-20, 12 V DC, 120° and 12 m coverage, output for digital input, EN 50131 grade 2 - HW group 600236 PIR motion detector JS-20, 12 V DC, 120° and 12 m coverage, output for digital input, EN 50131 grade 2 - HW group 600236

Images are examples, some edited with AI. The technical data are authoritative. AI notice

PIR motion detector JS-20, 12 V DC, 120° and 12 m coverage, output for digital input, EN 50131 grade 2 - HW group 600236

HW group ✓ Original product Brand new Made in Czechia

The JS-20 passive infrared motion detector protects indoor areas and connects to the digital input of an HW group monitoring unit. Multiple signal analysis gives high sensitivity with good immunity to false alarms. A common choice for access monitoring in server rooms and plant rooms.

Net
€48.80
excl. VAT
Item HWG-600236
Manufacturer no. 600236
Save Compare
Question about this item
Datasheet (PDF) Declaration of conformity 2 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Anyone entering a server room should show up in the monitoring system, including outside business hours. The JS-20 covers a 120° angle up to 12 m and reports motion through a switched output to the digital input of the monitoring unit.

Benefits

  • Fewer false alarms: multiple signal analysis and strong RF immunity, with a jumper to tighten analysis at difficult mounting spots.
  • Wide coverage: 120° detection angle and 12 m range with the standard lens.
  • Tamper protection: a separate tamper output (TMP), and connection faults are reported as an alarm.
  • Classified: grade 2 and environmental class II (indoor general) to EN 50131-1.
  • Adaptable: the standard lens can be swapped for a long-corridor lens or a lens with a pet alley.

Applications

  • Access monitoring for server rooms and data centers
  • Plant rooms with cooling equipment, CDU and UPS
  • Unmanned telecom sites
  • Storage and utility rooms in buildings

Compatibility

  • HW group units with a digital input (DI)

Technical data

DetectorPIR motion detector JS-20
Coverage120°, 12 m (standard lens)
Recommended mounting height2.5 m above floor
MountingFlat wall or corner
PIR outputSwitch max. 60 V, 50 mA, internal resistance max. 30 Ohm
Tamper output (TMP)Switch max. 60 V, 50 mA, internal resistance max. 16 Ohm
ConnectionTerminal block, conductor cross-section max. 1 mm²
Power supply12 V DC ±25 %
Consumptionmax. 10 mA without LED, max. 35 mA with LED
Stabilisation timemax. 180 s after power-on
ClassificationEN 50131-1 grade 2, environmental class II
Protection ratingIP33
Dimensions (W x H x D)61 x 110 x 53 mm
Weight77 g
ConformityCE
Warranty24 months
Manufacturer part number600236
ManufacturerHW group
Hersteller-Nr600236
Zolltarifnummer85319000
GPSR HerstellerdatenHW group s.r.o., Rumunská 26, CZ-120 00 Praha 2, www.hw-group.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureCzechia
InterfaceDigital I/O
Operating voltage12 V DC

Scope of delivery

  • 1 x PIR motion detector JS-20 with standard lens
  • Not included: 12 V DC power supply and monitoring unit
