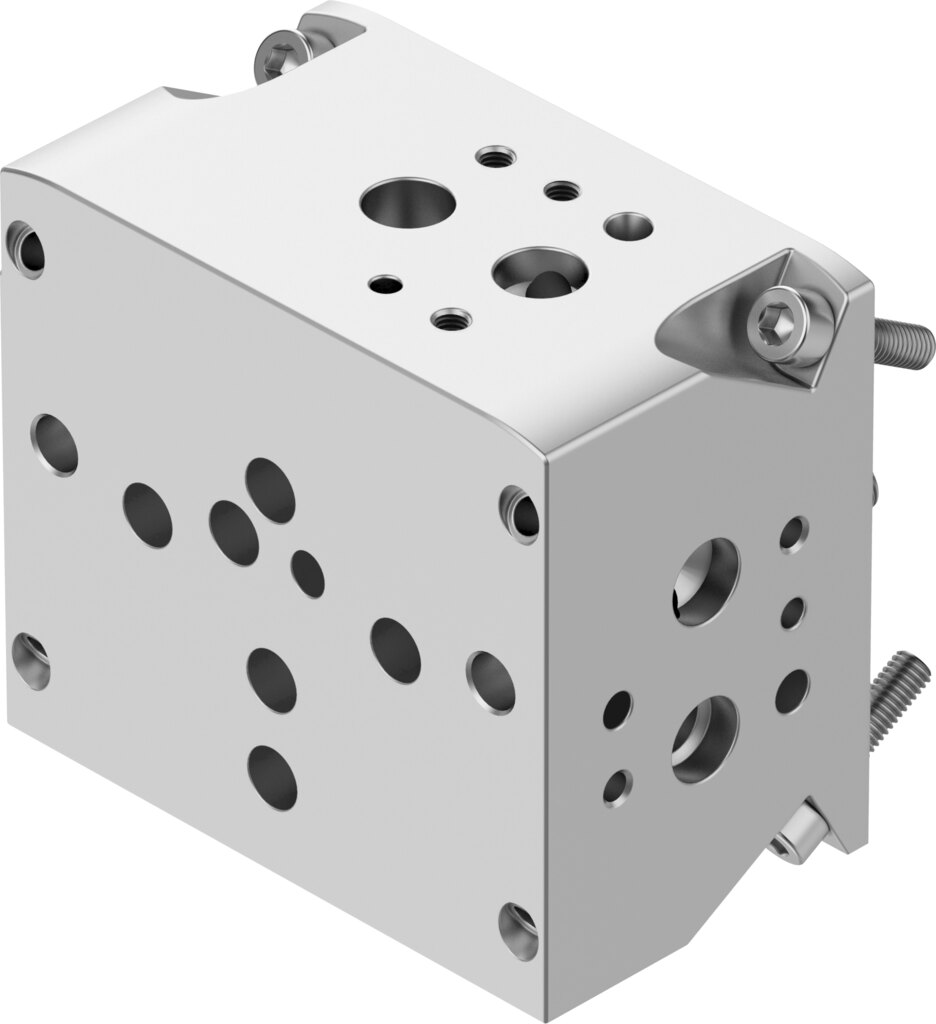

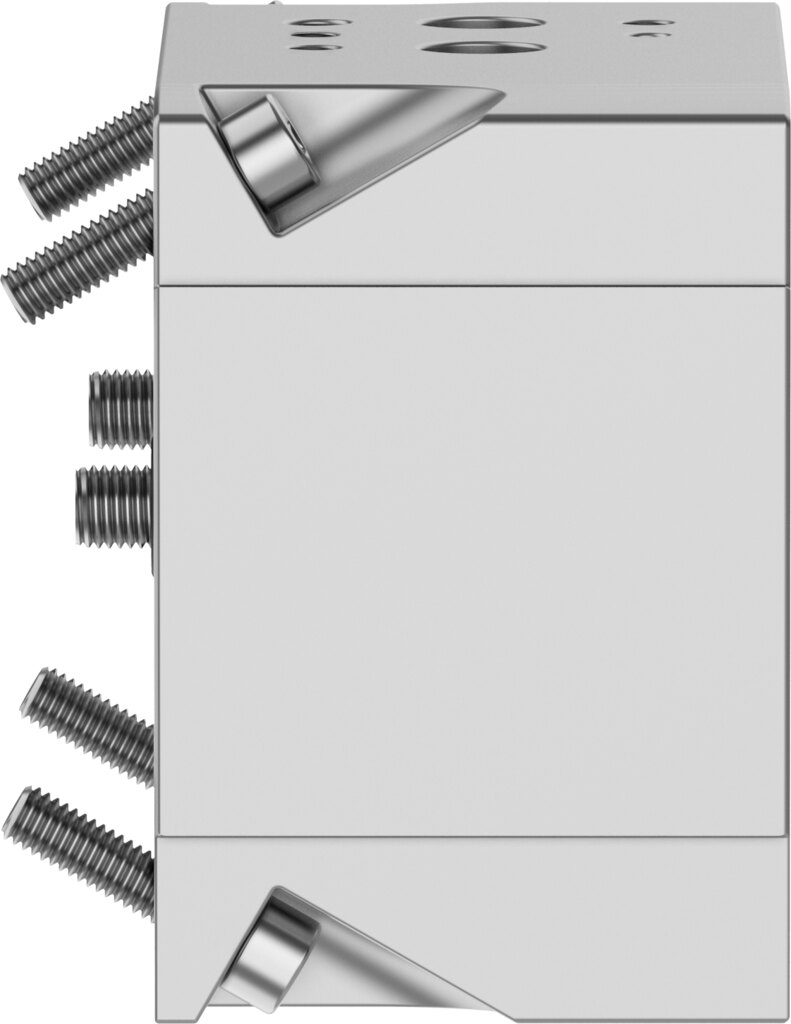

Sub-base 1oo2 channel structure, VDI/VDE 3847-1, ATEX VABP-C13-100HFT1-F90-VDE1E - Festo 8141662
The Festo sub-base VABP-C13-100HFT1-F90-VDE1E accepts valves with a port pattern to VDI/VDE 3847-1, design 1oo2 channel structure. Operating pressure 0 to 8 bar, ATEX Zone 1, Zone 2, Zone 21, Zone 22, ambient temperature -40 to 80 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo sub-base VABP-C13-100HFT1-F90-VDE1E (material smooth-anodised wrought aluminium alloy (20 µm)), part number 8141662.
Benefits
- Pressure range 0 to 8 bar: the VABP-C13-100HFT1-F90-VDE1E works at standard line pressures.
- Corrosion resistance class CRC 3: the VABP-C13-100HFT1-F90-VDE1E is made of smooth-anodised wrought aluminium alloy (20 µm).
- Mounting: VABP-C13-100HFT1-F90-VDE1E with accessories.
- Explosion protection: VABP-C13-100HFT1-F90-VDE1E for Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX).
- Standardised interface: VDI/VDE 3847-1.
Application
The VABP-C13-100HFT1-F90-VDE1E is designed for process automation, with ATEX approval for potentially explosive areas. Designed for compressed air to ISO 8573-1:2010 [7:7:-], Inert gas at -40 to 80 °C ambient temperature, Festo part number 8141662. LABS (PWIS) conformity to VDMA24364 zone III.
Technical data
| Type | VABP-C13-100HFT1-F90-VDE1E |
|---|---|
| Festo part number | 8141662 |
| Mounting position | Any |
| Design | 1oo2 channel structure |
| Valve connection conforms to standard | VDI/VDE 3847-1 |
| Operating pressure | 0 to 8 bar |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:7:-], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Medium temperature | -40 to 80 °C |
| Ambient temperature | -40 to 80 °C |
| Product weight | 1365 g |
| Mounting type | With accessories |
| Pneumatic connection | Sub-base design, airing |
| Note on materials | RoHS compliant |
| Cover material | Smooth-anodised wrought aluminium alloy (20 µm) |
| Material seals | EPDM, NBR |
| Housing material | Smooth-anodised wrought aluminium alloy (20 µm) |
| Material screws | High-alloy stainless steel |
| Weight (price list) | 1.4 kg |
| Weight | 1.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABP-C13-100HFT1-F90-VDE1E |
| EAN | 4052568580537 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -40-80 °C |
| Temperature (max.) | 80 |
