Pneumatic interface for Type 44, VTSA, 24 V DC VABA-S6-1-X2-3V-CB-AL - Festo 8152438

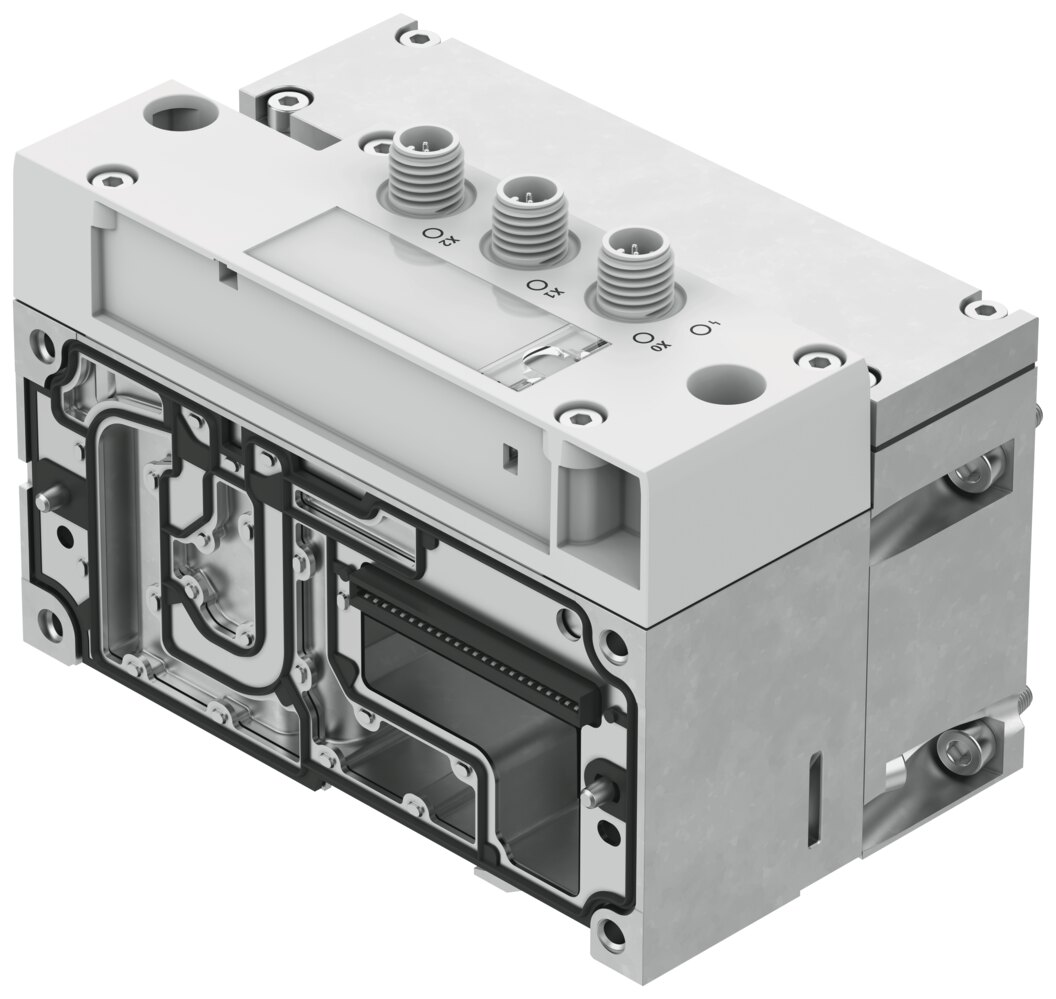

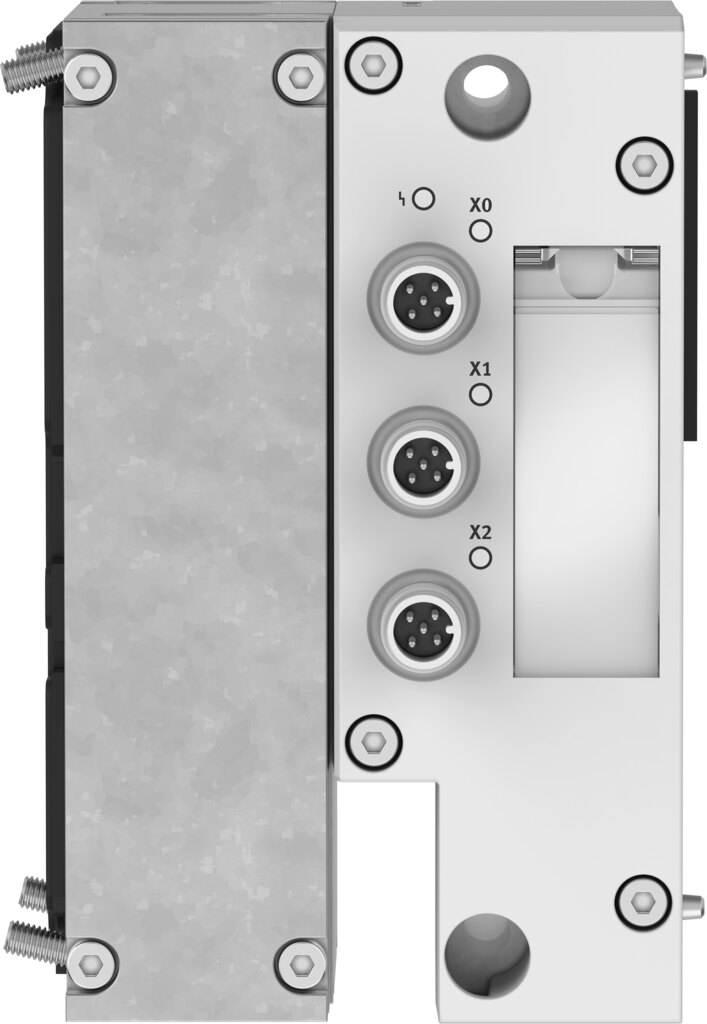

The pneumatic interface VABA-S6-1-X2-3V-CB-AL connects the valve terminal (Type 44, VTSA) to the CPX electrical terminal. Valve positions: 12 with double solenoid valves, 24 with single solenoid valves, 24 V DC, degree of protection IP65, NEMA 4.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo pneumatic interface VABA-S6-1-X2-3V-CB-AL, made of die-cast aluminium.
Benefits
- Corrosion resistance class CRC 0: the VABA-S6-1-X2-3V-CB-AL is made of die-cast aluminium.
- Electrics: 24 V DC, degree of protection IP65, NEMA 4.
- Diagnostics: the VABA-S6-1-X2-3V-CB-AL reports wire break per valve coil, short circuit of valves, undervoltage of valves.
Application
The VABA-S6-1-X2-3V-CB-AL is used on Festo valve terminals with electrical control, for example in assembly and packaging systems. Permissible ambient temperature -5 to 50 °C. LABS (PWIS) conformity to VDMA24364-B1/B2-L.
Technical data
| Type | VABA-S6-1-X2-3V-CB-AL |
|---|---|
| Festo part number | 8152438 |
| Valve terminal interface | Type 44, VTSA |
| Diagnosis | Wire break per valve coil, Short circuit of valves, Undervoltage of valves |
| Number of valve positions (max.) | 12 with double solenoid valves, 24 with single solenoid valves |
| LED display | 1 Group diagnostics, 3 load supply, Channel status on valves |
| Parameterisation | Fail-safe per channel, Forcing per channel, Idle mode per channel, Module monitoring |
| Fuse protection (short circuit) | Internal electronic fuse protection per valve output |
| Operating voltage range DC | 21.6 to 26.4 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 11 mA (power supply for electronics), Typ. 45 mA (load voltage supply for valve) |
| Power supply per channel (max.) | 0.2 A |
| Total current per module (max.) | 6 A |
| Nominal operating voltage DC | 24 V |
| Isolation channel - internal bus | Yes |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65, NEMA 4 |
| Ambient temperature | -5 to 50 °C |
| Product weight | 1388 g |
| Electrical control | Fieldbus |
| Electrical connection | 3x M12x1, A-coded, 5-pin, Plug, Via CPX |
| Note on materials | RoHS compliant |
| Cover material | PA |
| Housing material | Die-cast aluminium |
| Manufacturer | Festo |
| Hersteller-Nr | VABA-S6-1-X2-3V-CB-AL |
| EAN | 4052568580735 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 24 V DC |
| Series | VABA |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
