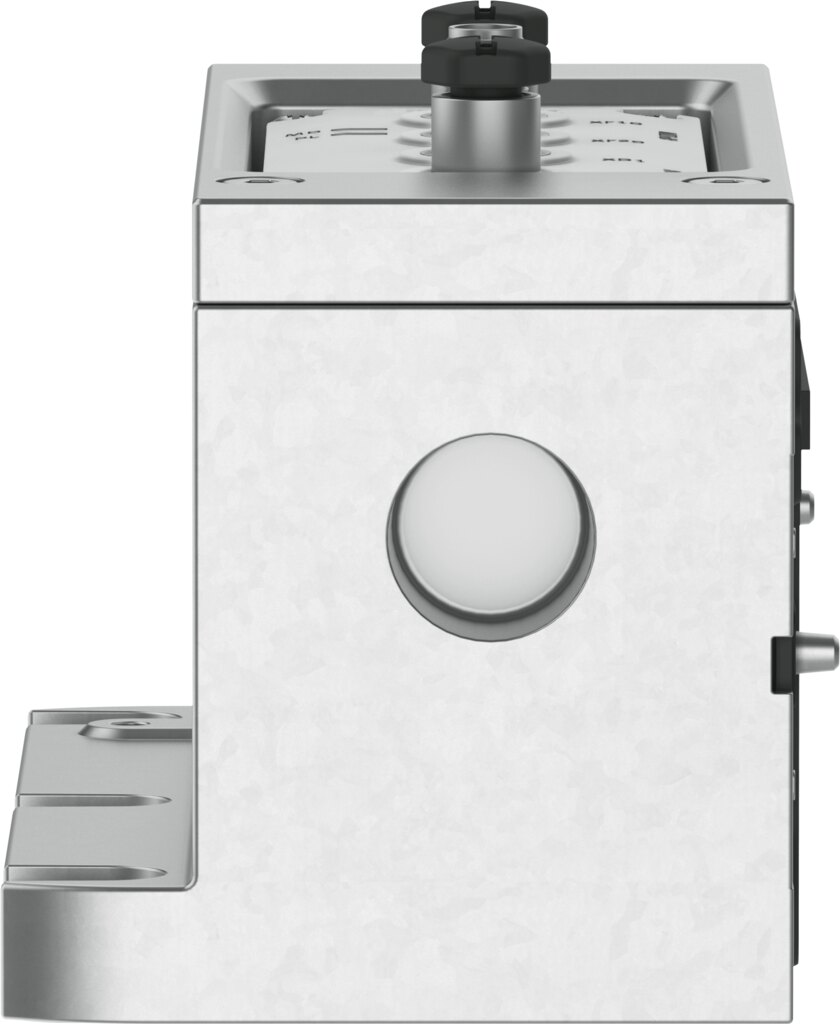

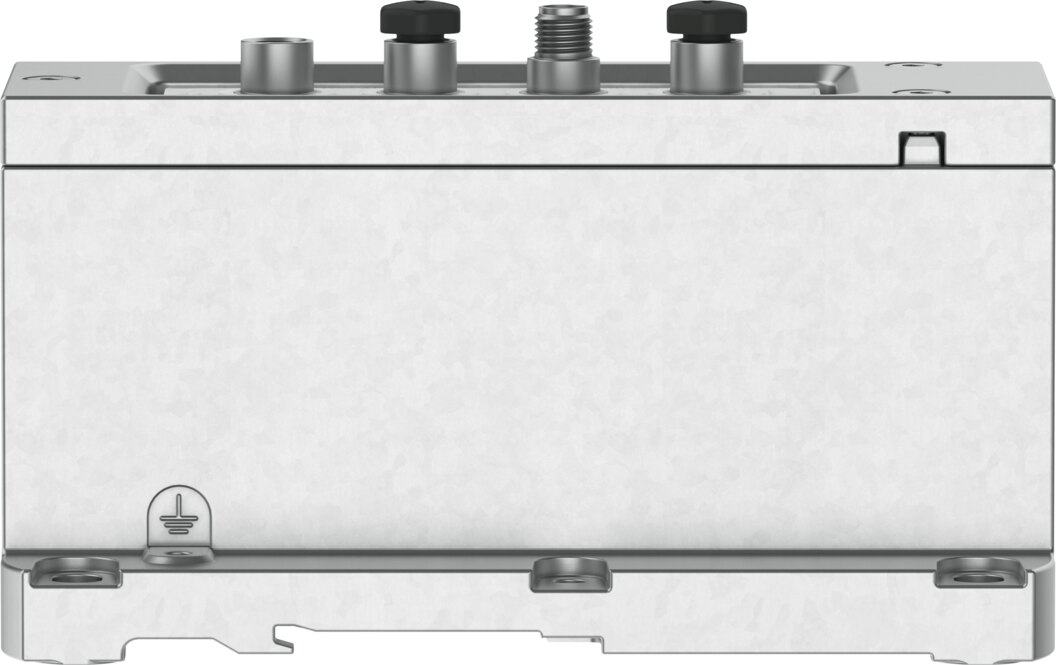

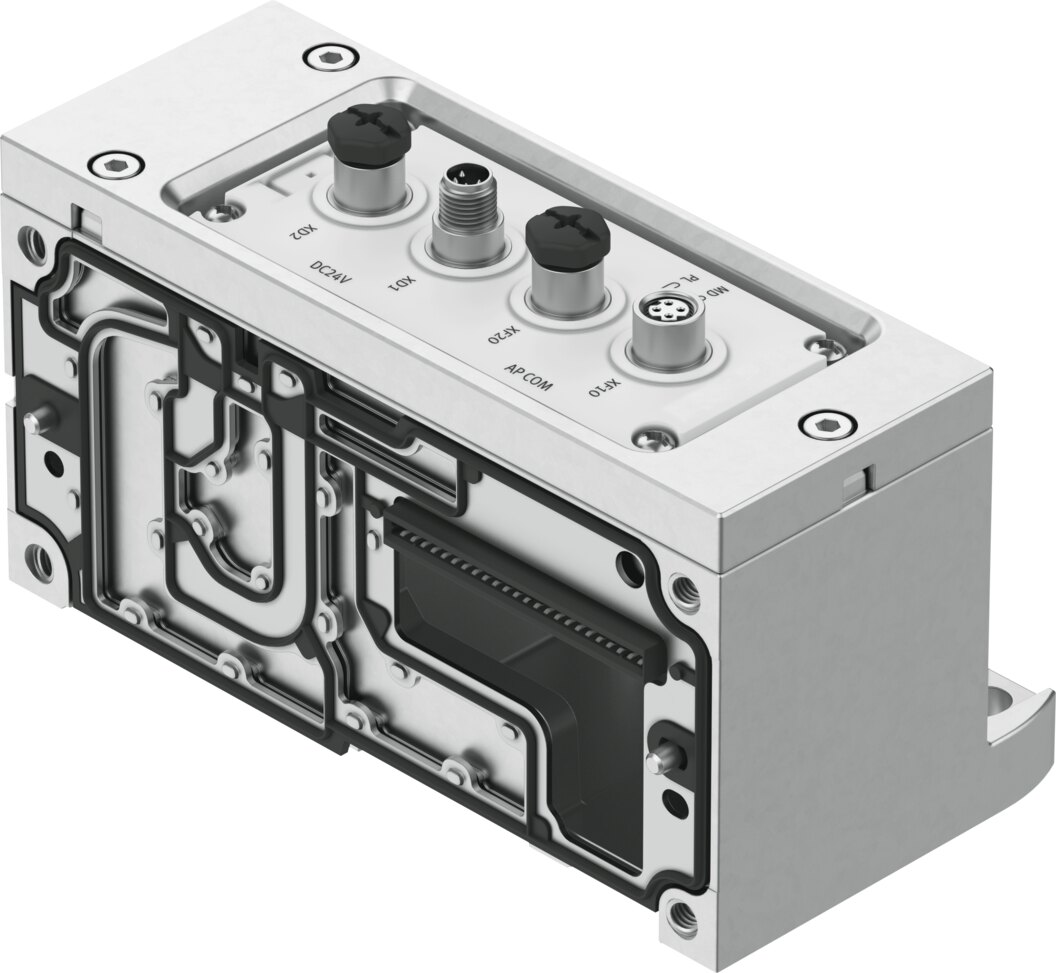

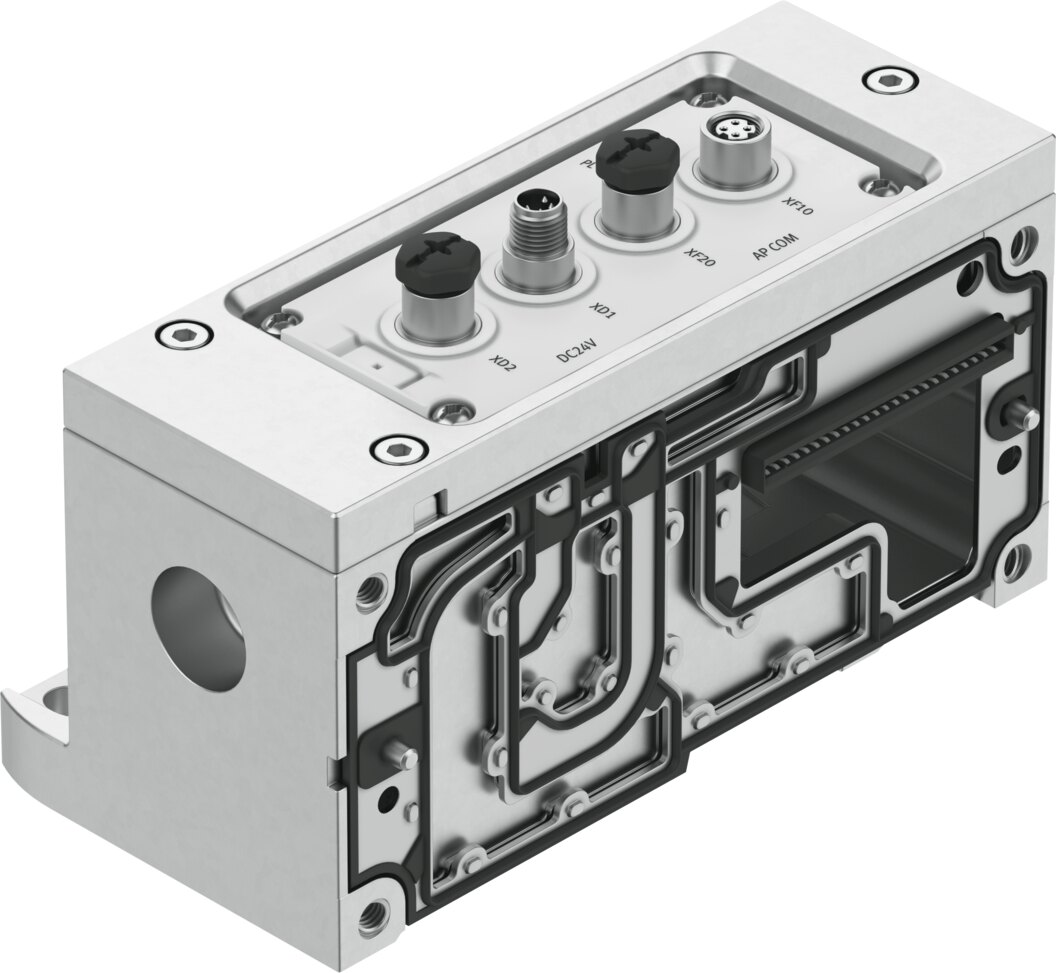

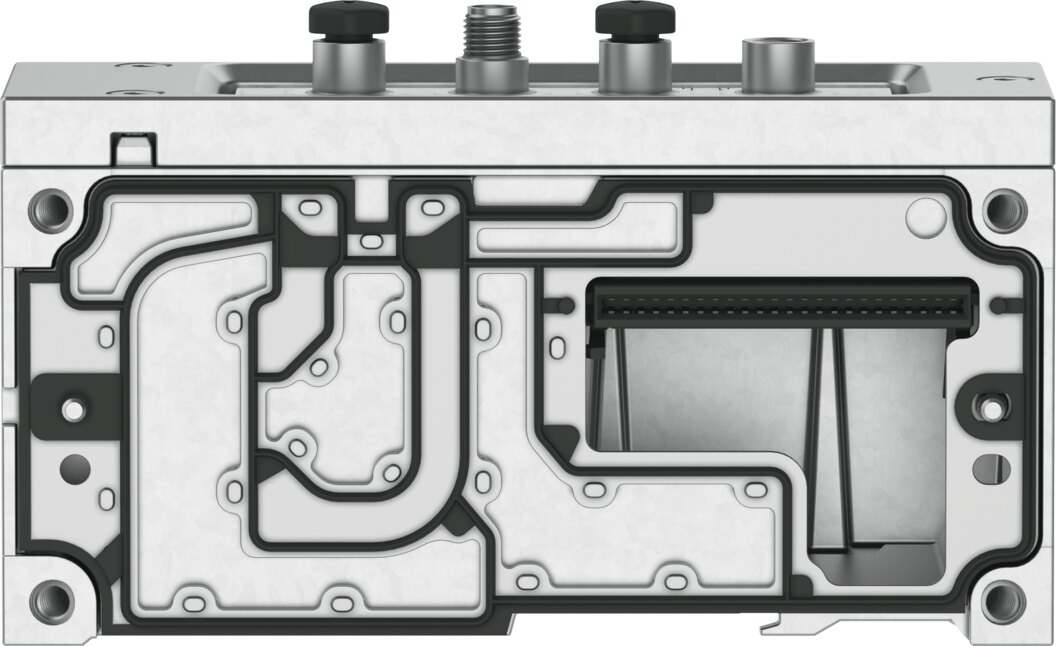

Electrical interface up to 12 valve positions, 24 V DC VABA-S6-1-AP - Festo 8152356
The electrical interface VABA-S6-1-AP controls the valves of the valve terminal electrically. Up to 12 valve positions, 24 valve coils, nominal voltage 24 V DC. Weight 0.7 kg, Festo part number 8152356.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo electrical interface VABA-S6-1-AP (12 valve positions), part number 8152356.
Benefits
- Corrosion resistance class CRC 2: the VABA-S6-1-AP is made of die-cast aluminium.
- Electrics: 24 V DC, degree of protection IP65.
- Diagnostics: the VABA-S6-1-AP reports electronics/sensors overvoltage, load overvoltage, electronics/sensors undervoltage, load undervoltage.
Application
The VABA-S6-1-AP is used on Festo valve terminals with electrical control, for example in assembly and packaging systems. Permissible ambient temperature 5 to 50 °C. LABS (PWIS) conformity to VDMA24364-B2-L.
Technical data
| Type | VABA-S6-1-AP |
|---|---|
| Festo part number | 8152356 |
| Position of connection | On top |
| Reverse polarity protection | Yes |
| Diagnostics via LED | Diagnostics per module, Load power supply |
| Diagnostics per internal communication | Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage |
| Number of valve positions (max.) | 12 |
| Number of valve coils (max.) | 24 |
| Module parameters | Configuration of voltage monitoring load supply PL, Behaviour in error state |
| Dimensions (W x L x H) | 71 mm x 142 mm x 84 mm |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 34 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 16 mA |
| Power failure buffering of load | 3 ms |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Power supply (max.) | 2 x 4 A (external fuse required) |
| Nominal DC operating voltage, electronics/sensors | 24 V |
| Nominal operating voltage DC of load | 24 V |
| Nominal operating voltage DC | 24 V |
| Power failure bridging | 10 ms |
| Permissible voltage fluctuations for electronics/sensors | ±25% |
| Permissible voltage fluctuation of load | ±10% |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, connection type | Plug |
| Power supply, connection system | M8x1, A-coded to EN 61076-2-104 |
| Power supply, number of pins/wires | 4 |
| Power transmission, function | Outgoing electronics/sensors and load |
| Power transmission, connection type | Socket |
| Power transmission, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Power transmission, number of pins/wires | 4 |
| Approval | RCM |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 5 - 95%, Non-condensing |
| Protection against direct and indirect contact | PELV, Safety extra-low voltage |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state, Unused connections sealed |
| Ambient temperature | 5 to 50 °C |
| Nominal altitude of use | <= 2000 m NHN |
| Product weight | 712 g |
| Cable length (max.) | 50 m system communication |
| Communication interface, function | System communication XF10 IN / XF20 OUT |
| Communication interface, connection type | 2x socket |
| Communication interface, connection technology | M8x1, D-coded according to EN 61076-2-114 |
| Communication interface, number of pins/cores | 4 |
| Communication interface, protocol | AP-COM |
| Communication interface, screened | Yes |
| Note on materials | RoHS compliant |
| Cover material | Die-cast aluminium |
| Material threaded sleeve | Nickel-plated brass |
| Weight (price list) | 0.7 kg |
| Weight | 0.7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABA-S6-1-AP |
| EAN | 4052568616434 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Die-cast aluminium |
| Operating voltage | 24 V DC |
| Series | VABA |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
