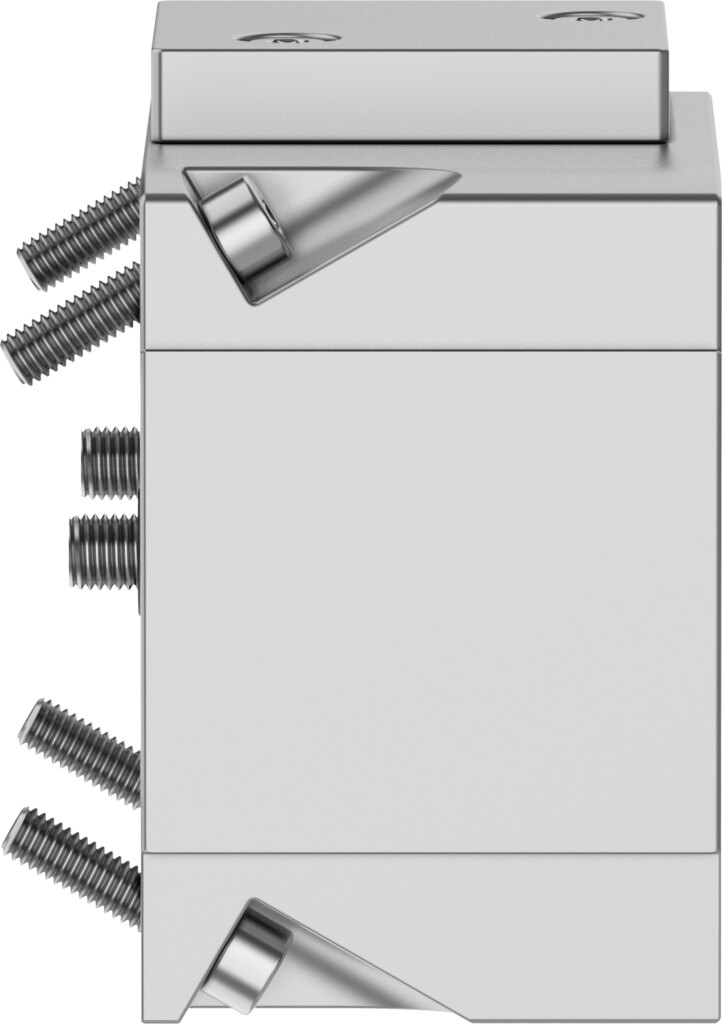

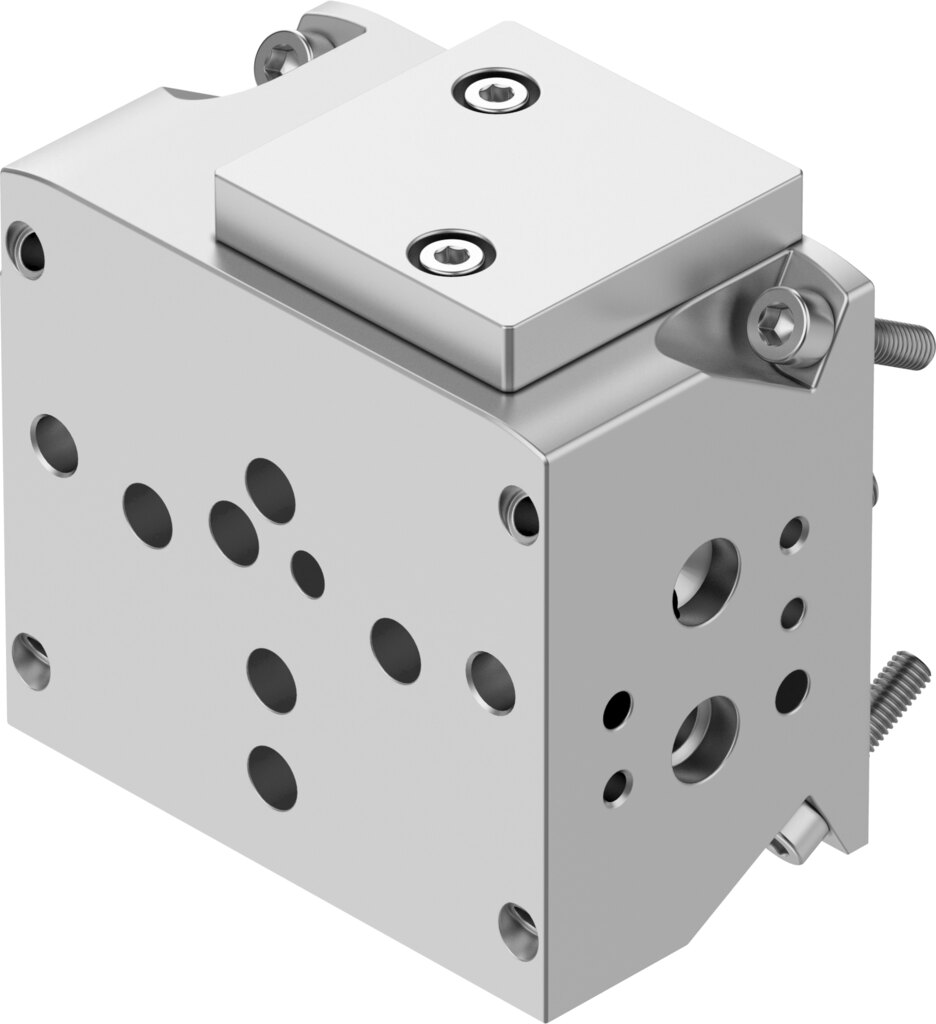

Sub-base 1oo1 channel structure, VDI/VDE 3847-1, ATEX VABP-C13-100HFT0-F90-VDE1E - Festo 8141661

Festo ✓ Original product Brand new

The Festo sub-base VABP-C13-100HFT0-F90-VDE1E accepts valves with a port pattern to VDI/VDE 3847-1, design 1oo1 channel structure. Operating pressure 0 to 8 bar, ATEX Zone 1, Zone 2, Zone 21, Zone 22, ambient temperature -40 to 80 °C.

Net
€314.84
excl. VAT
Item FES-8141661
Manufacturer no. VABP-C13-100HFT0-F90-VDE1E
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The sub-base VABP-C13-100HFT0-F90-VDE1E is part of the Festo valve accessory range (material smooth-anodised wrought aluminium alloy (20 µm)).

Benefits

  • Pressure range 0 to 8 bar: the VABP-C13-100HFT0-F90-VDE1E works at standard line pressures.
  • Material smooth-anodised wrought aluminium alloy (20 µm): sub-base VABP-C13-100HFT0-F90-VDE1E, CRC 3.
  • Mounting: VABP-C13-100HFT0-F90-VDE1E with accessories.
  • Explosion protection: VABP-C13-100HFT0-F90-VDE1E for Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX).
  • Standardised interface: VDI/VDE 3847-1.

Application

The VABP-C13-100HFT0-F90-VDE1E is designed for process automation, with ATEX approval for potentially explosive areas. Designed for compressed air to ISO 8573-1:2010 [7:7:-], Inert gas at -40 to 80 °C ambient temperature, Festo part number 8141661. LABS (PWIS) conformity to VDMA24364 zone III.

Technical data

TypeVABP-C13-100HFT0-F90-VDE1E
Festo part number8141661
Mounting positionAny
Design1oo1 channel structure
Valve connection conforms to standardVDI/VDE 3847-1
Operating pressure0 to 8 bar
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:7:-], Inert gas
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Medium temperature-40 to 80 °C
Ambient temperature-40 to 80 °C
Product weight1300 g
Mounting typeWith accessories
Pneumatic connectionSub-base design, airing
Note on materialsRoHS compliant
Cover materialSmooth-anodised wrought aluminium alloy (20 µm)
Material sealsEPDM, NBR
Housing materialSmooth-anodised wrought aluminium alloy (20 µm)
Material screwsHigh-alloy stainless steel
ManufacturerFesto
Hersteller-NrVABP-C13-100HFT0-F90-VDE1E
EAN4052568580520
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MediumCompressed air
Betriebsdruck max [bar]8
Temperaturbereich-40-80 °C
Temperature (max.)80
