Pneumatic interface for Type 44, VTSA-F-CB, 24 V DC VABA-S6-1-X2-F2-CB2-AL - Festo 8152434

Festo ✓ Original product Brand new

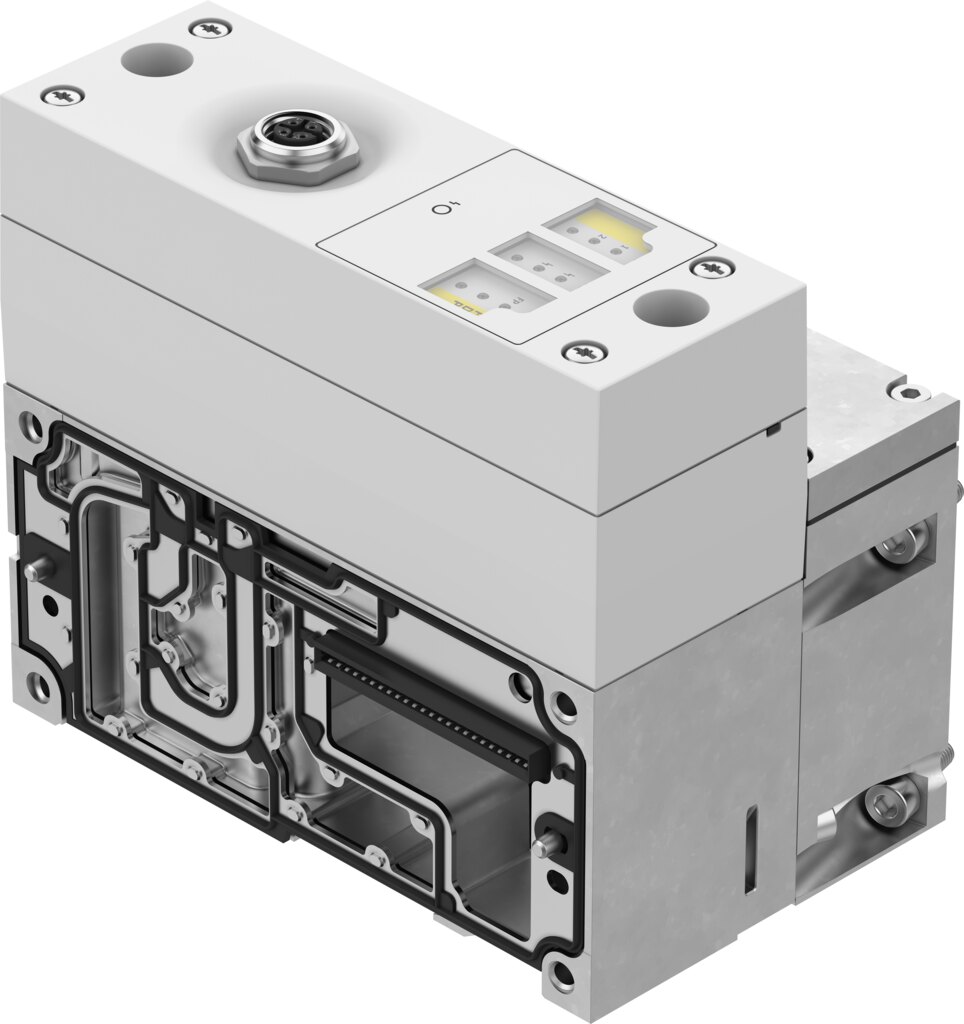

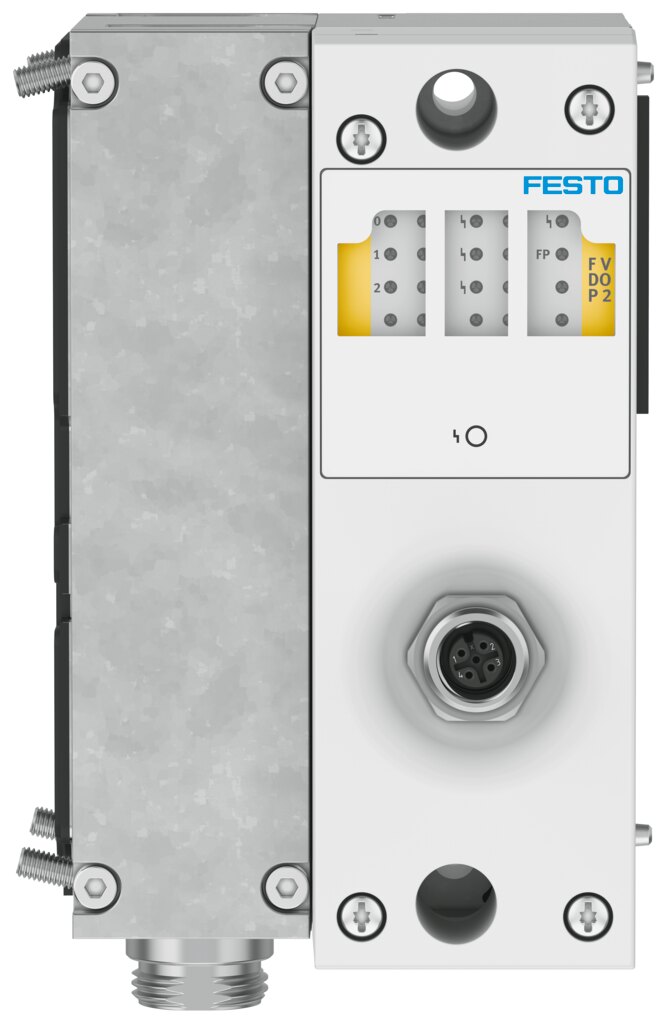

The pneumatic interface VABA-S6-1-X2-F2-CB2-AL connects the valve terminal (Type 44, VTSA-F-CB) to the CPX electrical terminal. Valve positions: 12 with double solenoid valves, 24 with single solenoid valves, 24 V DC, degree of protection IP65.

Net
€920.03
excl. VAT
Item FES-8152434
Manufacturer no. VABA-S6-1-X2-F2-CB2-AL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo pneumatic interface VABA-S6-1-X2-F2-CB2-AL (material die-cast aluminium), part number 8152434.

Benefits

  • Material die-cast aluminium: pneumatic interface VABA-S6-1-X2-F2-CB2-AL, CRC 0.
  • Electrics: 24 V DC, degree of protection IP65.
  • Diagnostics: the VABA-S6-1-X2-F2-CB2-AL reports wire break per valve coil, short circuit of valves, undervoltage of valves.

Application

The VABA-S6-1-X2-F2-CB2-AL is used on Festo valve terminals with electrical control, for example in assembly and packaging systems. Permissible ambient temperature -5 to 50 °C. LABS (PWIS) conformity to VDMA24364-B1/B2-L.

Technical data

TypeVABA-S6-1-X2-F2-CB2-AL
Festo part number8152434
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Valve terminal interfaceType 44, VTSA-F-CB
DiagnosisWire break per valve coil, Short circuit of valves, Undervoltage of valves
Number of valve positions (max.)12 with double solenoid valves, 24 with single solenoid valves
LED display1 Group diagnostics
ParameterisationFail-safe per channel, Forcing per channel, Idle mode per channel, Module monitoring
Fuse protection (short circuit)Internal electronic fuse protection per valve output
Operating voltage range DC21.6 to 26.4 V
Intrinsic current consumption at nominal operating voltageTyp. 15 mA for valves without CPX-FVDA-P2, Typ. 25 mA for electronics with CPX-FVDA-P2
Power supply per channel (max.)0.2 A
Total current per module (max.)2 A
Nominal operating voltage DC24 V
Isolation channel - internal busYes, when using an additional power supply for the valves
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20 to 60 °C
Degree of protectionIP65
Ambient temperature-5 to 50 °C
Product weight1596 g
Electrical controlFieldbus
Electrical connection output, functionSafe digital output
Electrical connection output, connection typeSocket
Electrical connection output, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection output, number of connections/cores5
Electrical connection valve, functionPower supply, valve
Electrical connection for valve, connection typePlug
Electrical connection for valve, connection technology7/8'' round plug connector
Electrical connection for valve, number of pins/wires5
Electrical connectionVia CPX
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Cover materialPA
Material sealsNBR
Material screwsSteel
Weight (price list)2.2 kg
Weight2.2 kg
ManufacturerFesto
Hersteller-NrVABA-S6-1-X2-F2-CB2-AL
EAN4052568580391
Zolltarifnummer85389099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialDie-cast aluminium
Seal materialNBR
Operating voltage24 V DC
SeriesVABA
Protection ratingIP65
Temperature (max.)50
