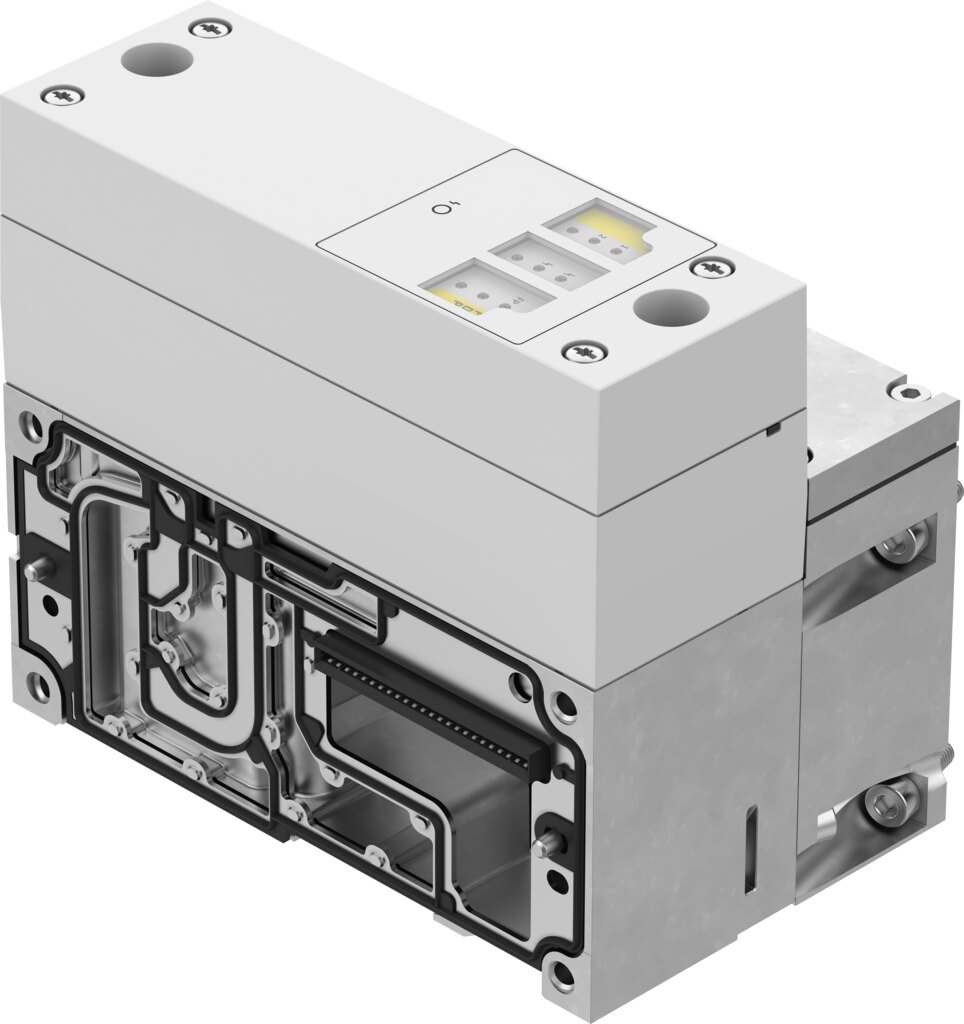

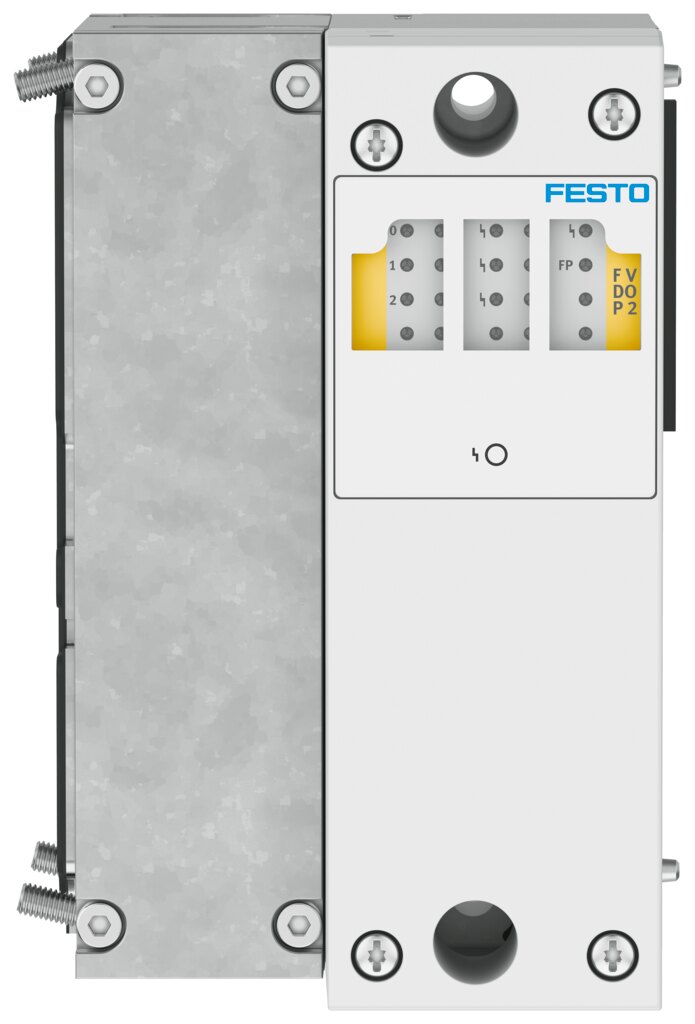

Pneumatic interface VABA-S6-1-X2-F1-CB-AL - Festo 8152437
Net
excl. VAT
€920.03
Item
FES-8152437
Manufacturer no.
VABA-S6-1-X2-F1-CB-AL
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|---|---|
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Valve terminal interface | Type 44, VTSA-F-CB |
| Diagnosis | Wire break per valve coil, Short circuit of valves, Undervoltage of valves |
| Max. number of valve positions | 12 with double solenoid valves, 24 with single solenoid valves |
| LED display | 1 Group diagnostics |
| Parameterisation | Fail-safe per channel, Forcing per channel, Idle mode per channel, Module monitoring |
| Fuse protection (short circuit) | Internal electronic fuse protection per valve output |
| Operational voltage range DC | 21.6 ... 26.4 V |
| Intern power consumption nominal operating voltage | Typ. 15 mA for valves without CPX-FVDA-P2, Typ. 25 mA for electronics with CPX-FVDA-P2 |
| Max. power supply per channel | 0.2 A |
| Max. total current per module | 2 A |
| Nominal operating voltage DC | 24 V |
| Isolation channel - internal bus | Yes, when using an additional power supply for the valves |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, To UK RoHS instructions |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 ... 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 1542 g |
| Electrical control | Fieldbus |
| Electrical connection | Via CPX |
| Note on materials | RoHS compliant |
| Material sub-base | Die-cast aluminium |
| Material cover | PA |
| Material seals | NBR |
| Material screws | Steel |
| Manufacturer | Festo |
| Hersteller-Nr | VABA-S6-1-X2-F1-CB-AL |
| EAN | 4052568580728 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
