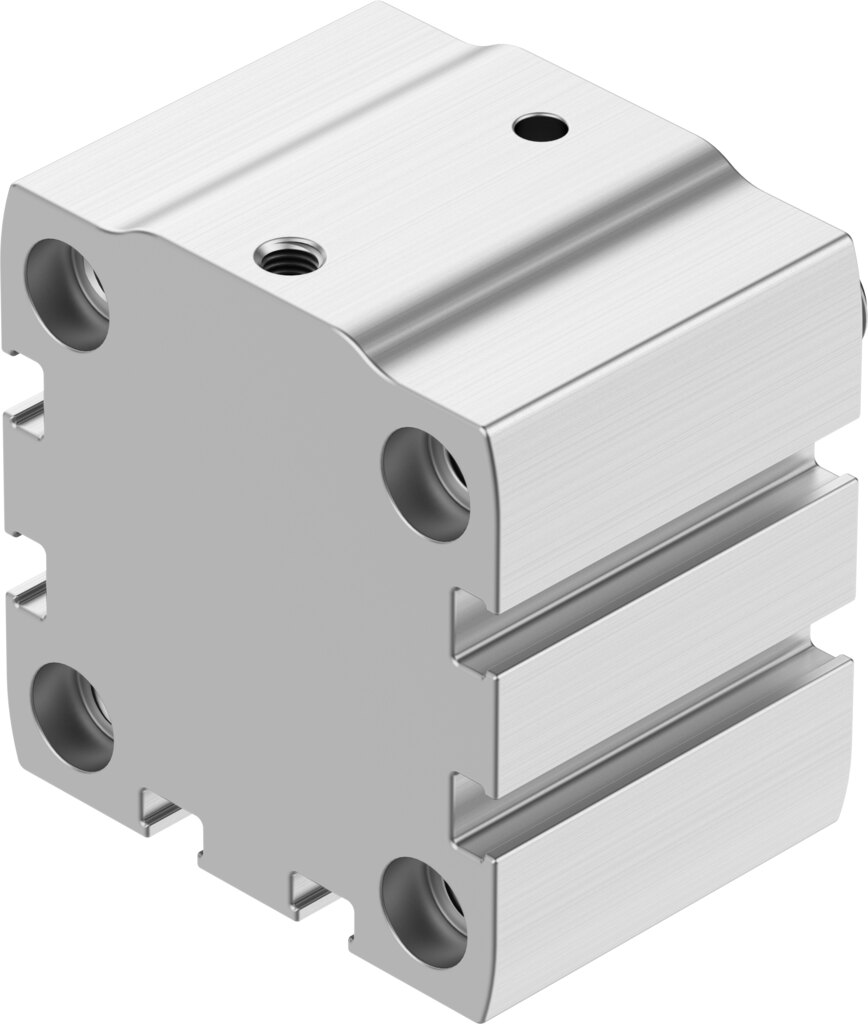

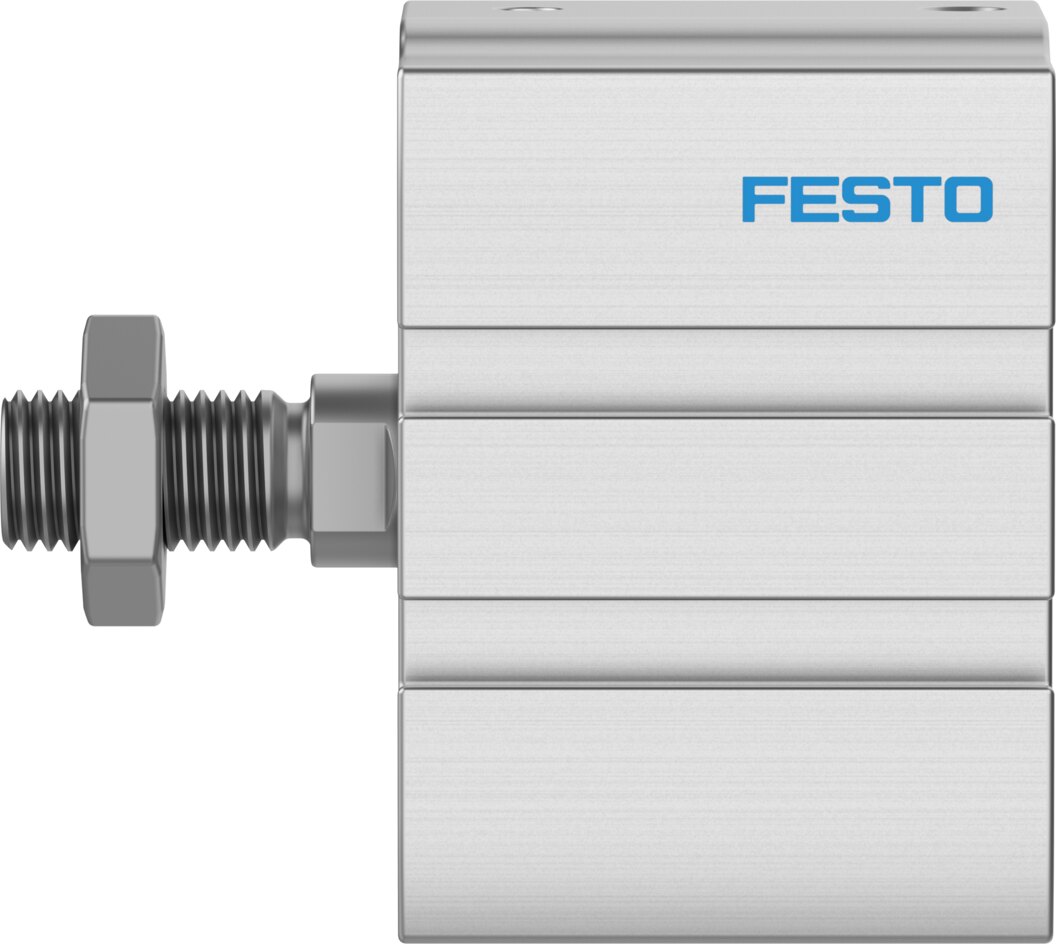

Compact cylinder single-acting pushing Ø 40 mm stroke 5 mm AEN-S-40-5-A-P-A - Festo 8092162

40 mm piston, 5 mm stroke, 700 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-40-5-A-P-A fits fixtures where a standard cylinder is too long.

Key benefits

• Air only for the working stroke: theoretical 700 N advance force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.7 J
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Position sensing: prepared for proximity switches, air port M5
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The 40 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. Since only one direction uses compressed air, the AEN-S-40-5-A-P-A needs one valve port less. Mount the AEN-S-40-5-A-P-A via through-holes or the female threads in the housing. For mass calculations Festo states 304 g basic weight at 0 mm stroke plus 45 g per 10 mm stroke.
