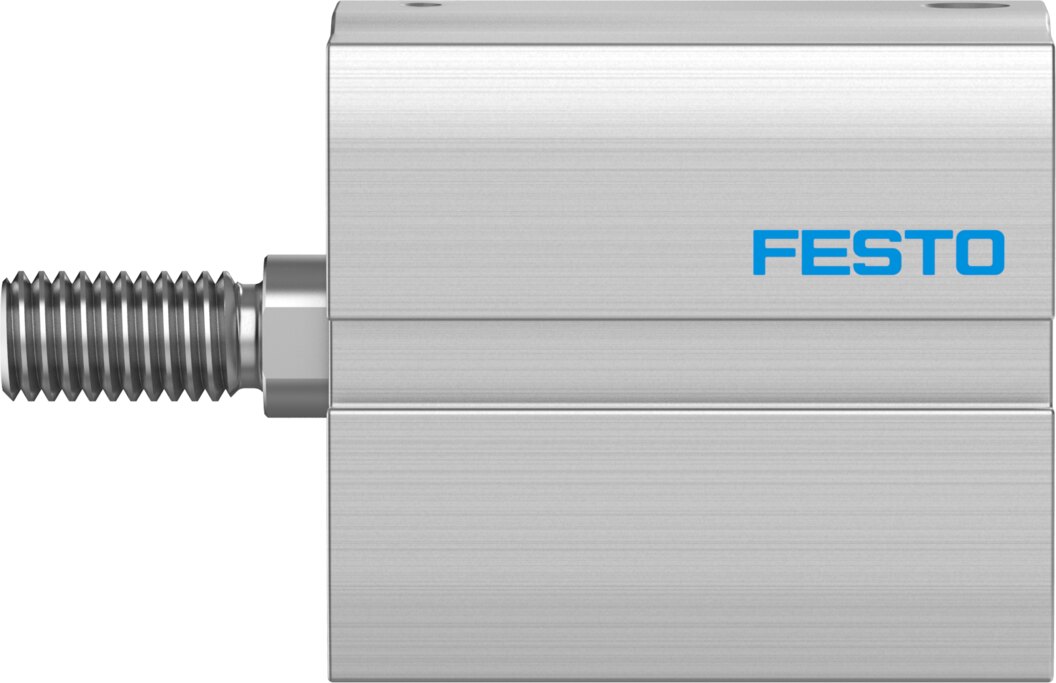

Compact cylinder single-acting pushing Ø 25 mm stroke 25 mm AEN-S-25-25-A-P-A - Festo 8092181

The Festo AEN-S-25-25-A-P-A is a single-acting pushing compact cylinder, 25 mm piston, 25 mm stroke. At 6 bar it reaches a theoretical 259 N advance force.

Benefits at a glance

• Single-acting: one air line is enough for 259 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.3 J
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Position sensing: prepared for proximity switches, air port M5
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

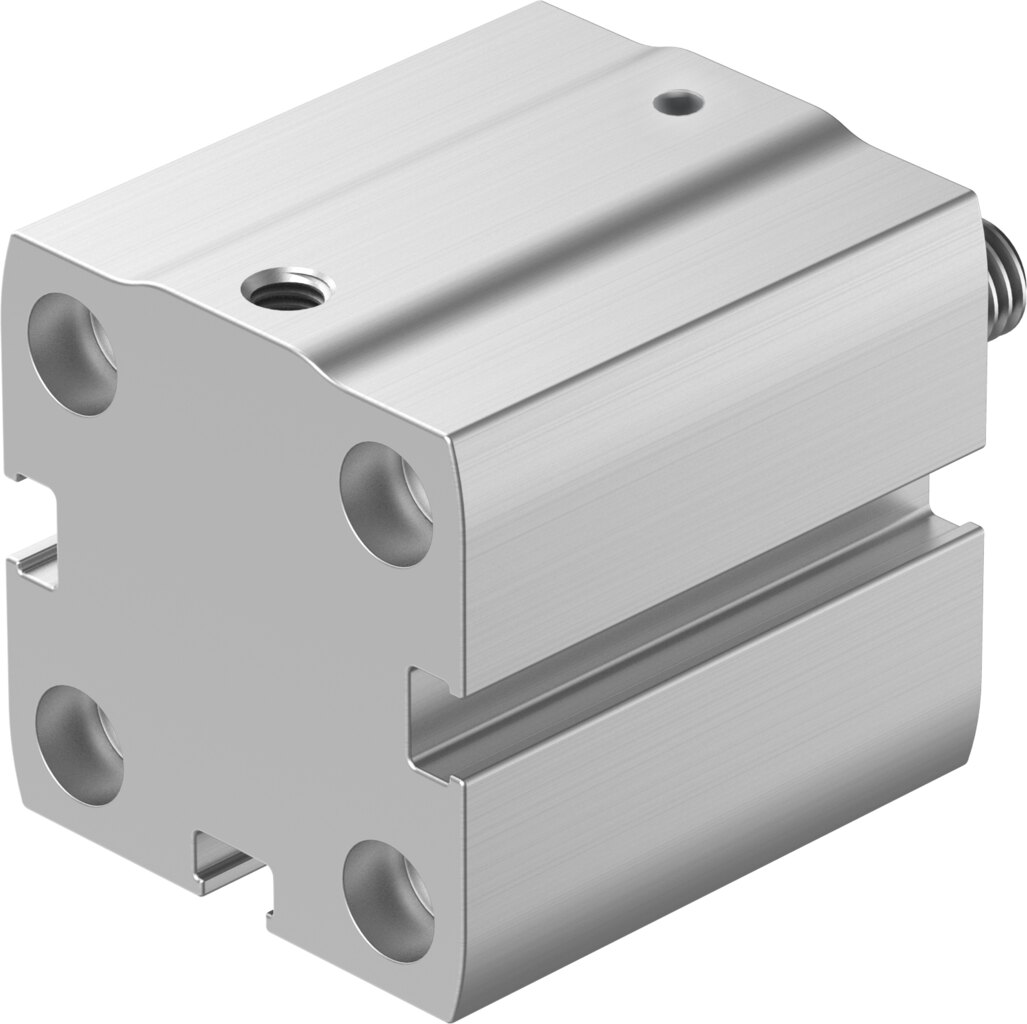

The 25 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. Since only one direction uses compressed air, the AEN-S-25-25-A-P-A needs one valve port less. Through-holes and female threads are available for mounting the 25 mm cylinder. For mass calculations Festo states 88 g basic weight at 0 mm stroke plus 30 g per 10 mm stroke.
