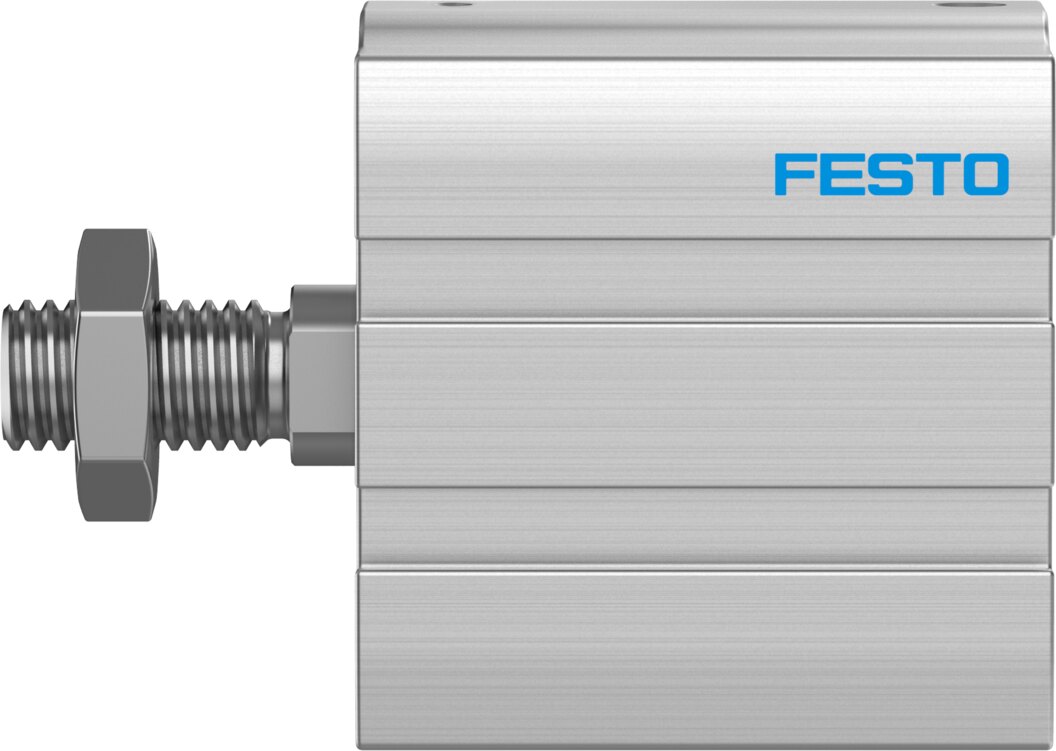

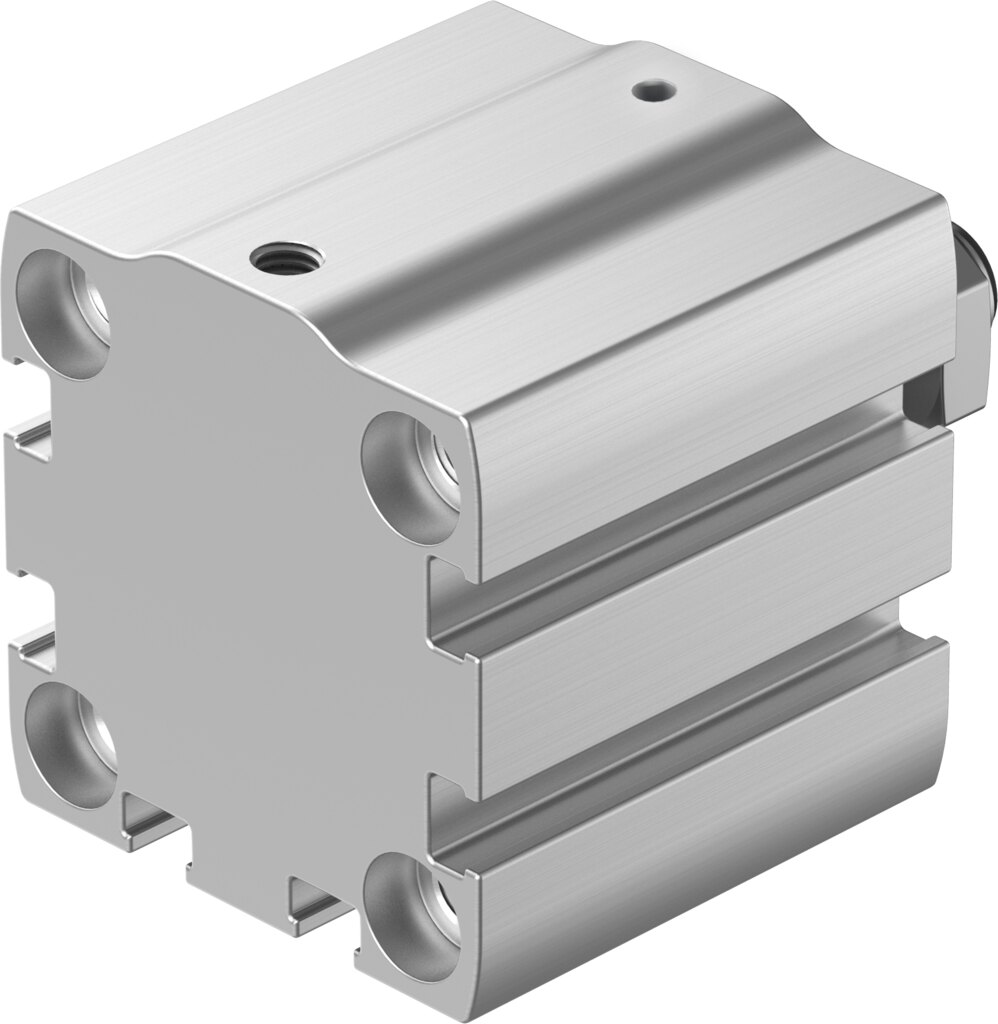

Compact cylinder single-acting pushing Ø 32 mm stroke 25 mm AEN-S-32-25-A-P-A - Festo 8092168

The Festo AEN-S-32-25-A-P-A is a single-acting pushing compact cylinder, 32 mm piston, 25 mm stroke. At 6 bar it reaches a theoretical 439 N advance force.

Benefits at a glance

• Single-acting: one air line is enough for 439 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.4 J
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Position sensing: prepared for proximity switches, air port M5
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-32-25-A-P-A suits ejecting, stopping, marking and clamping where force is needed in one direction only. With only one air line, tubing and valve technology on the AEN-S-32-25-A-P-A stay lean. Mount the AEN-S-32-25-A-P-A via through-holes or the female threads in the housing. For mass calculations Festo states 117 g basic weight at 0 mm stroke plus 36 g per 10 mm stroke.
