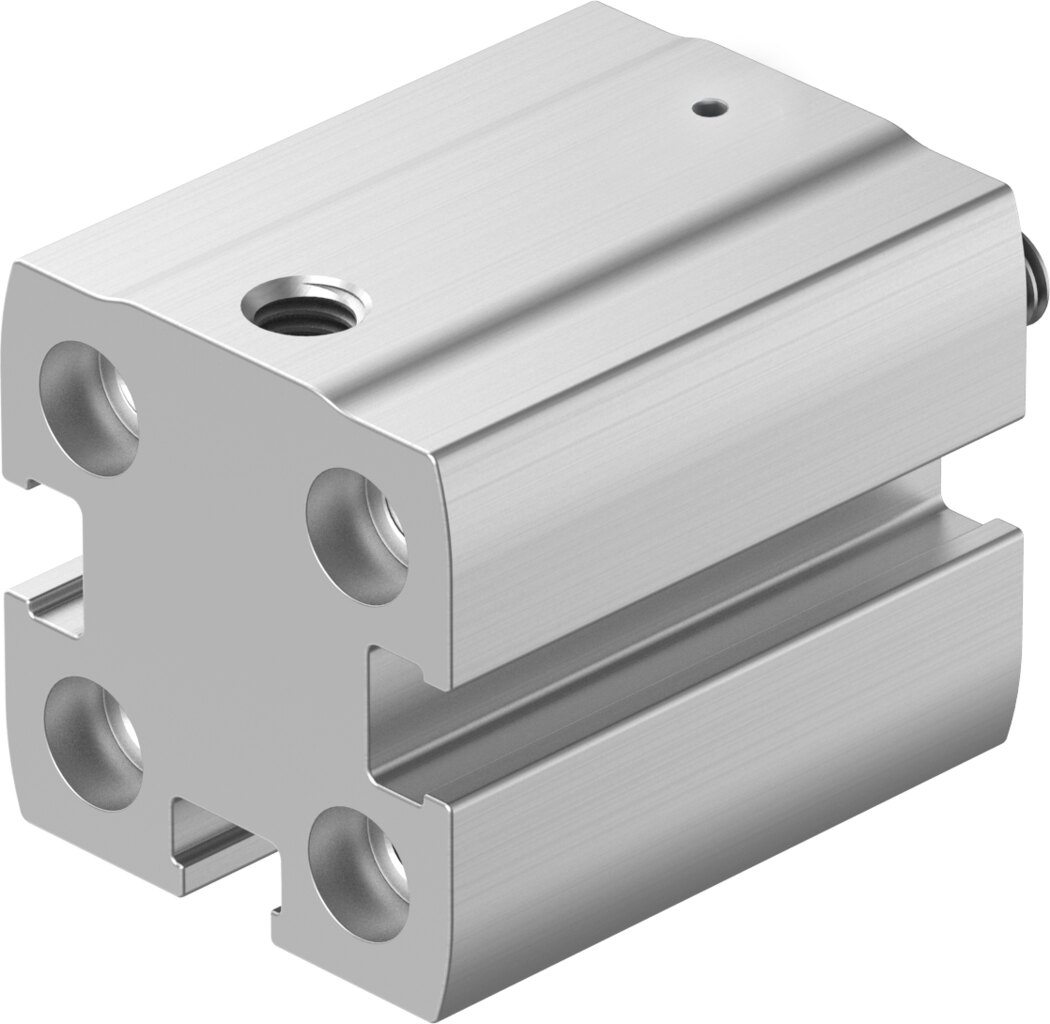

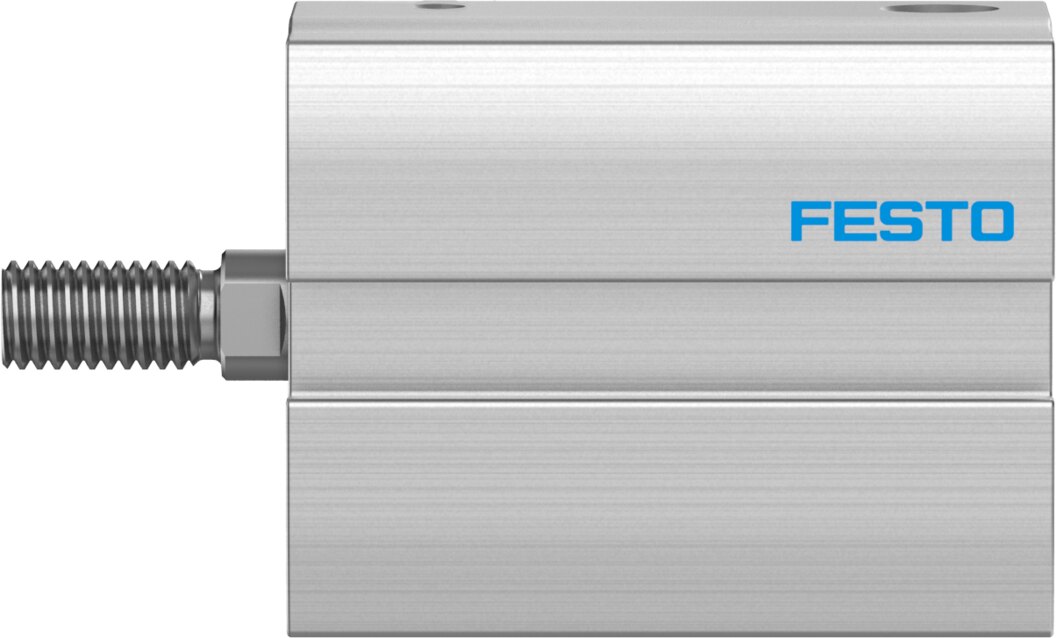

Compact cylinder single-acting Ø 32 mm stroke 15 mm AEN-32-15-I-P-A-Z-"M6"K5 - Festo 564105

The Festo AEN-32-15-I-P-A-Z-"M6"K5 is a single-acting compact cylinder: 32 mm piston, 15 mm stroke. The data below follows from the type code AEN-32-15-I-P-A-Z-"M6"K5, for the special version Z-"M6"K5 refer to the Festo documents for part 564105.

Benefits

• Single-acting: compressed air for one direction only, one air line is enough
• Elastic cushioning (P): cushioning rings/plates at both end positions
• Position sensing: prepared for proximity switches
• Piston rod end: female thread for direct attachment

Applications

The AEN-32-15-I-P-A-Z-"M6"K5 suits positioning, clamping and ejecting tasks where one direction of motion with compressed air is enough. Since only one direction uses compressed air, the AEN-32-15-I-P-A-Z-"M6"K5 needs one valve port less.
