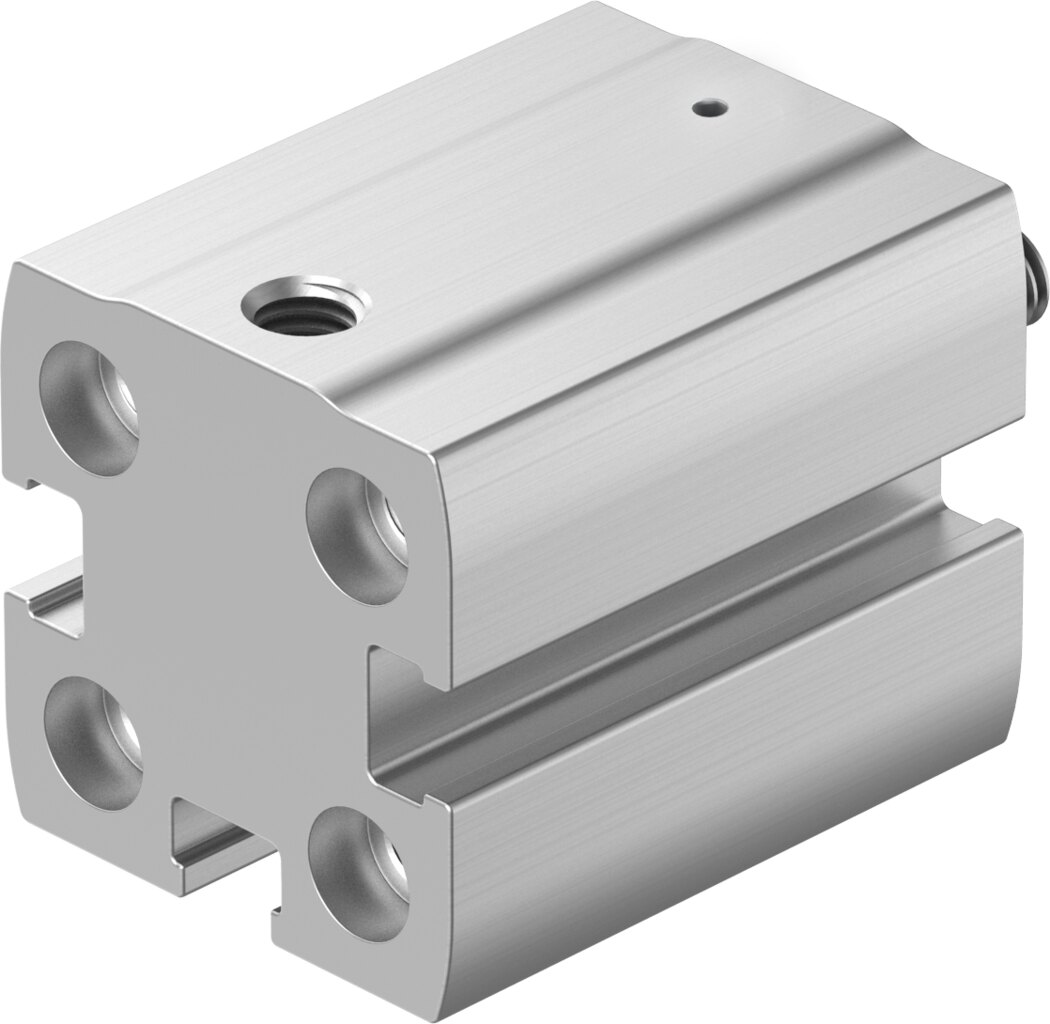

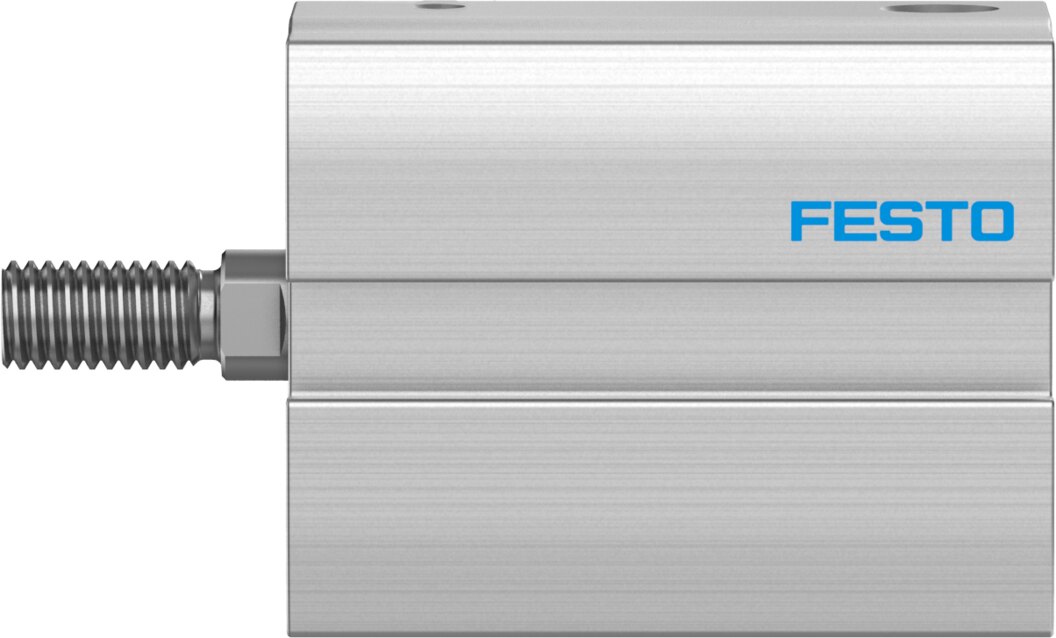

Compact cylinder single-acting pushing Ø 25 mm stroke 25 mm AEN-25-25-I-P-A-"M5"K5 - Festo 578015

The Festo AEN-25-25-I-P-A-"M5"K5 is a single-acting pushing compact cylinder: 25 mm piston, 25 mm stroke. The data below follows from the type code AEN-25-25-I-P-A-"M5"K5, for the special version "M5"K5 refer to the Festo documents for part 578015.

Key benefits

• Single-acting: compressed air for one direction only, one air line is enough
• Elastic cushioning (P): cushioning rings/plates at both end positions
• Position sensing: prepared for proximity switches
• Piston rod end: female thread for direct attachment

Applications

The 25 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. With only one air line, tubing and valve technology on the AEN-25-25-I-P-A-"M5"K5 stay lean.
