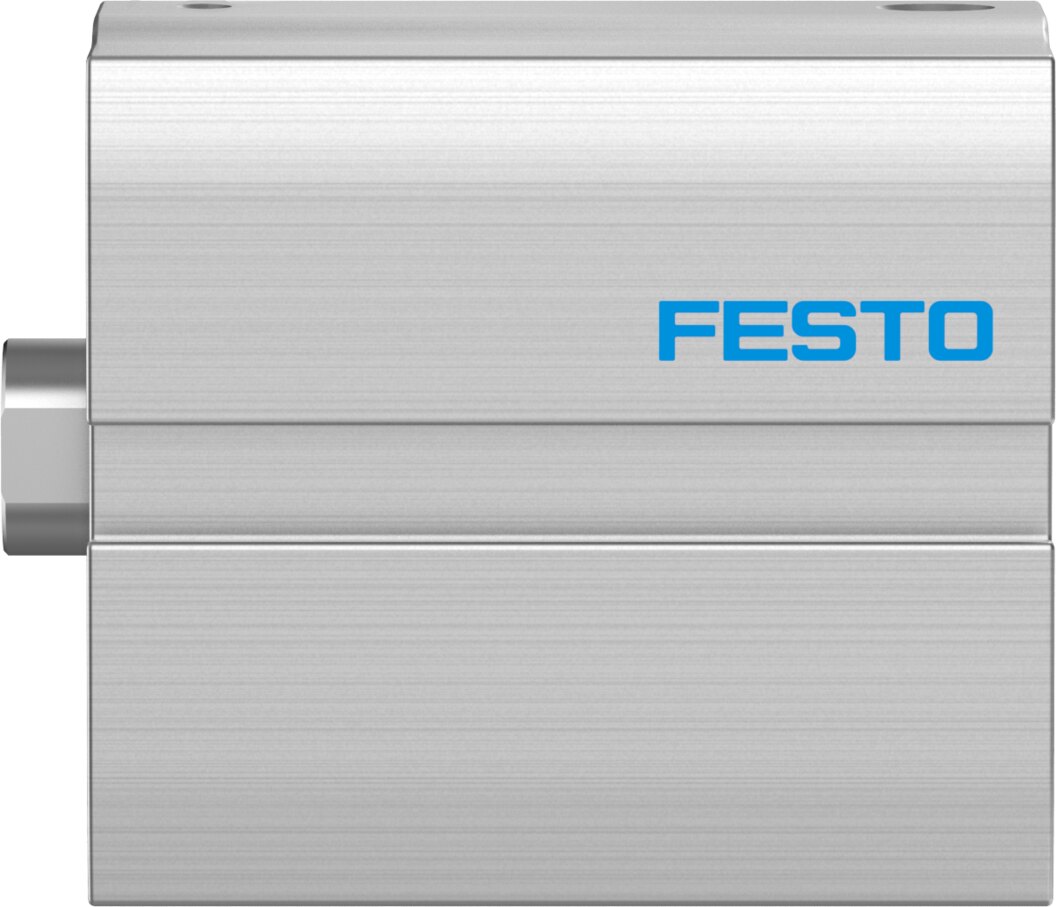

Compact cylinder single-acting pushing Ø 25 mm stroke 10 mm AEN-S-25-10-I-P - Festo 8076507

25 mm piston, 10 mm stroke, 259 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-25-10-I-P fits fixtures where a standard cylinder is too long.

Key benefits

• Air only for the working stroke: theoretical 259 N advance force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.09 J
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

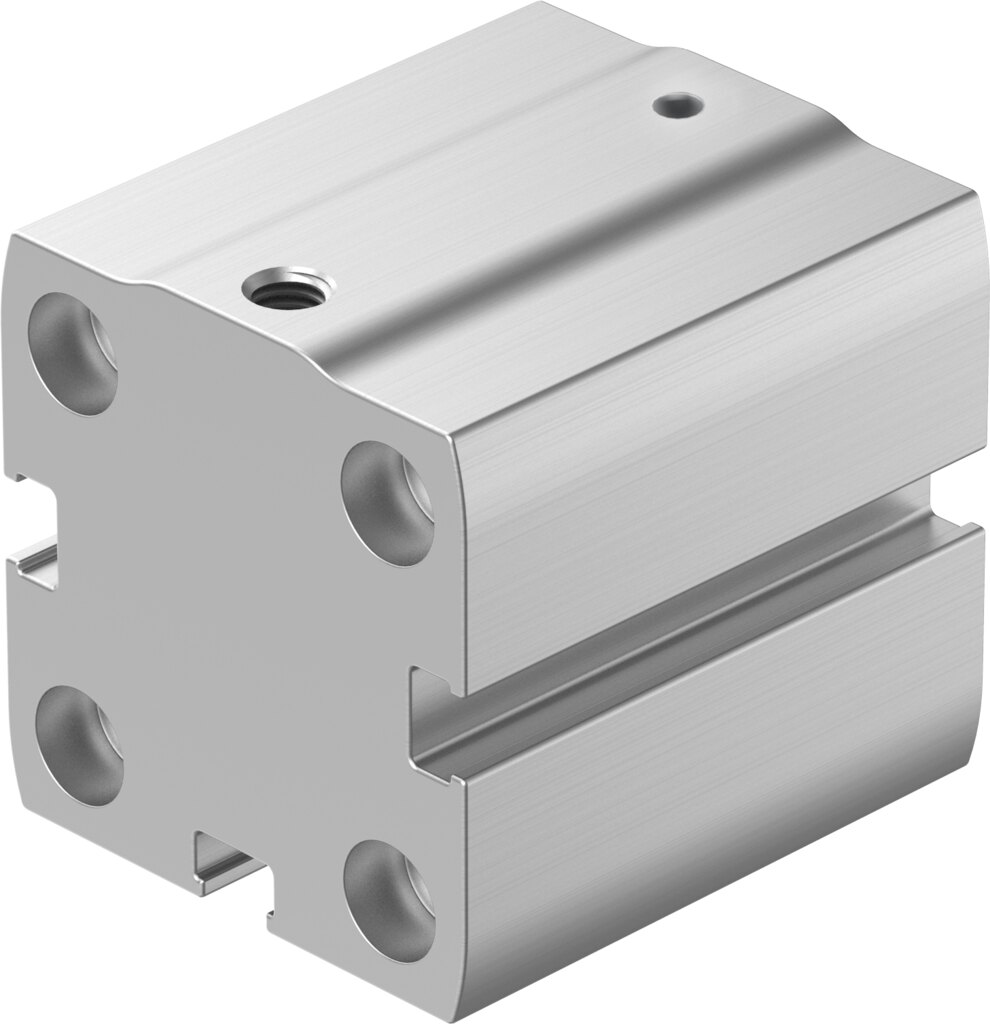

The 25 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. With only one air line, tubing and valve technology on the AEN-S-25-10-I-P stay lean. Mount the AEN-S-25-10-I-P via through-holes or the female threads in the housing. For mass calculations Festo states 70 g basic weight at 0 mm stroke plus 30 g per 10 mm stroke.
