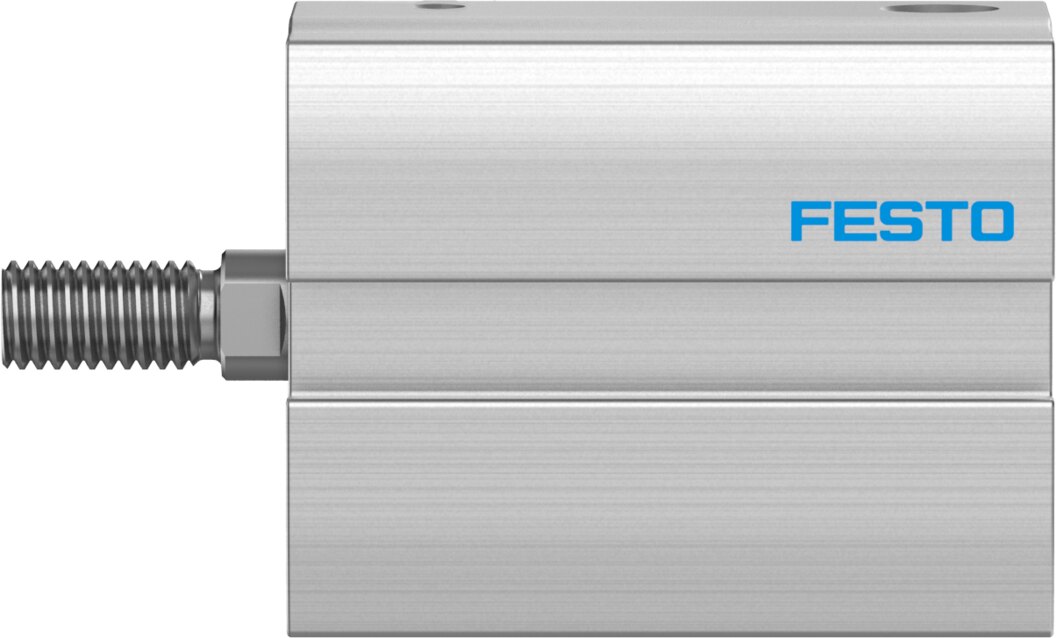

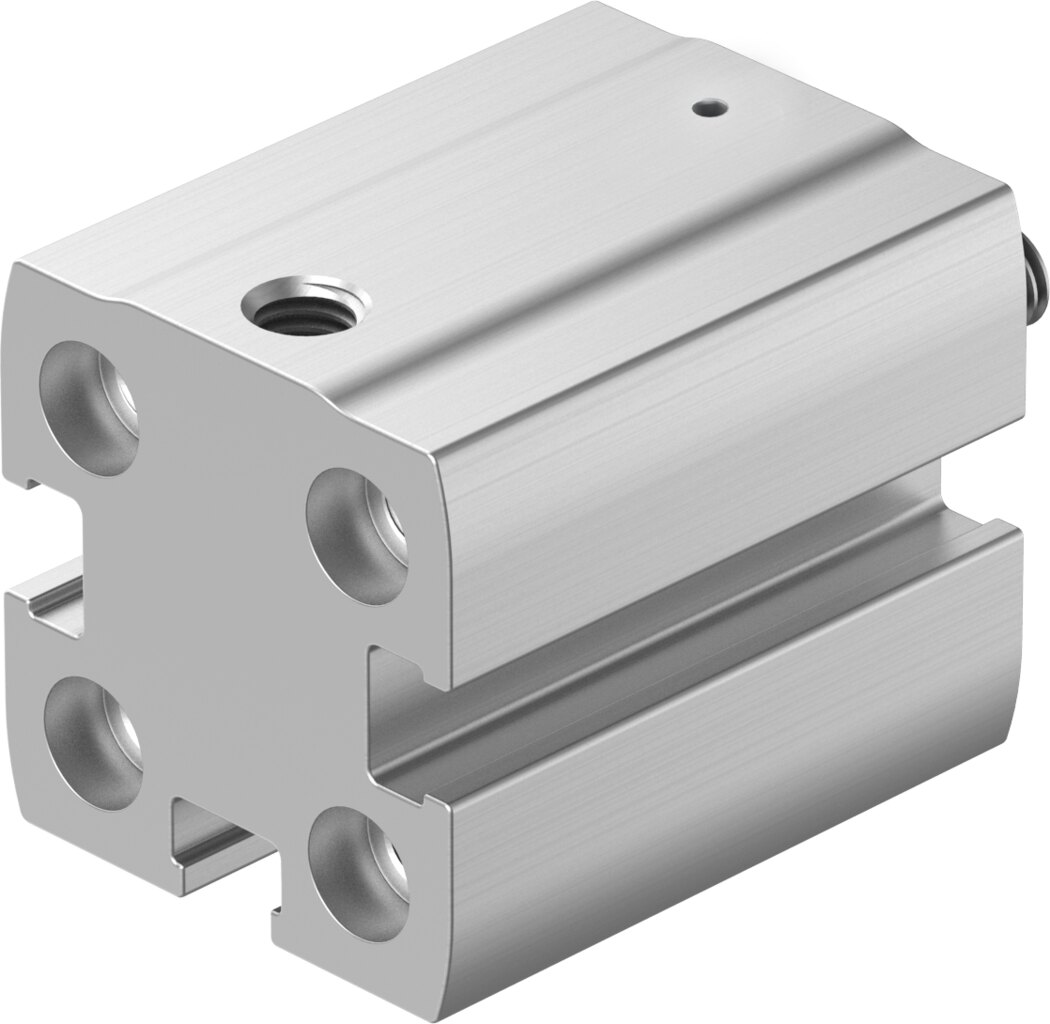

Compact cylinder single-acting Ø 12 mm stroke 5 mm AEN-12-5-I-P-A-Z - Festo 579201

The Festo AEN-12-5-I-P-A-Z is a single-acting compact cylinder: 12 mm piston, 5 mm stroke. The data below follows from the type code AEN-12-5-I-P-A-Z, for the special version Z refer to the Festo documents for part 579201.

Key benefits

• Single-acting: compressed air for one direction only, one air line is enough
• Elastic cushioning (P): cushioning rings/plates at both end positions
• Position sensing: prepared for proximity switches
• Piston rod end: female thread for direct attachment

Applications

The AEN-12-5-I-P-A-Z suits positioning, clamping and ejecting tasks where one direction of motion with compressed air is enough. With only one air line, tubing and valve technology on the AEN-12-5-I-P-A-Z stay lean.
