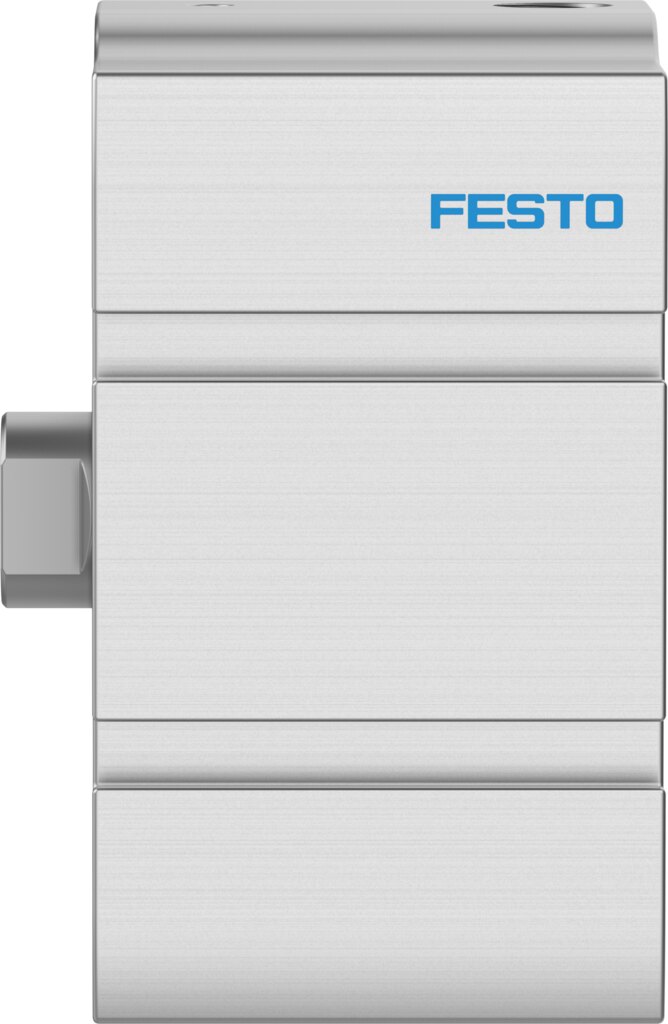

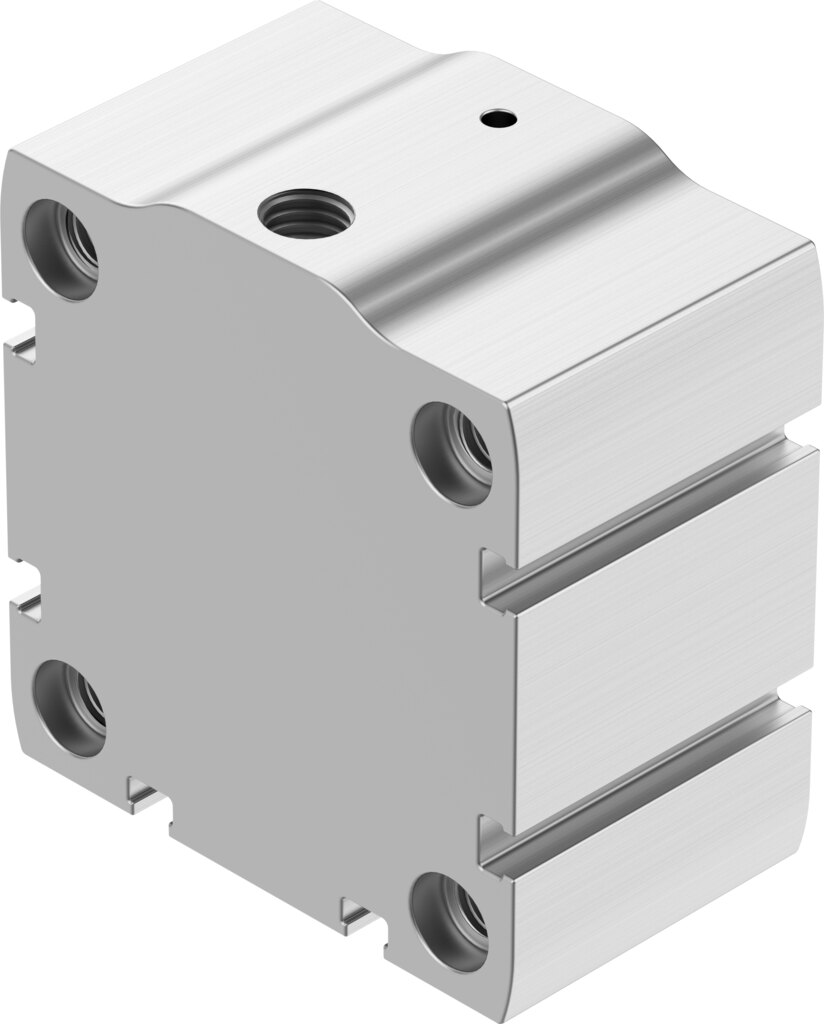

Compact cylinder single-acting pushing Ø 63 mm stroke 10 mm AEN-S-63-10-I-P-A - Festo 5132651

The Festo AEN-S-63-10-I-P-A is a single-acting pushing compact cylinder, 63 mm piston, 10 mm stroke. At 6 bar it reaches a theoretical 1,780 N advance force.

Benefits at a glance

• Air only for the working stroke: theoretical 1,780 N advance force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 1.3 J in the end positions
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Position sensing: prepared for proximity switches, air port G1/8
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-63-10-I-P-A suits ejecting, stopping, marking and clamping where force is needed in one direction only. With only one air line, tubing and valve technology on the AEN-S-63-10-I-P-A stay lean. Mount the AEN-S-63-10-I-P-A via through-holes or the female threads in the housing. For mass calculations Festo states 499 g basic weight at 0 mm stroke plus 77 g per 10 mm stroke.
