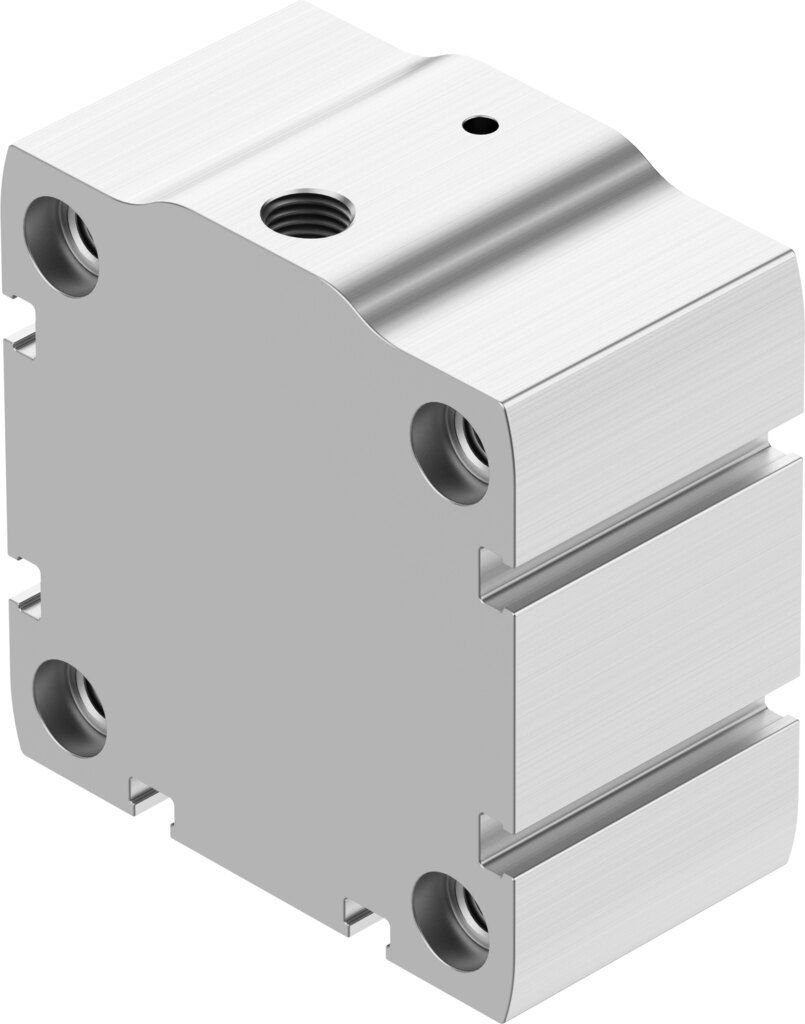

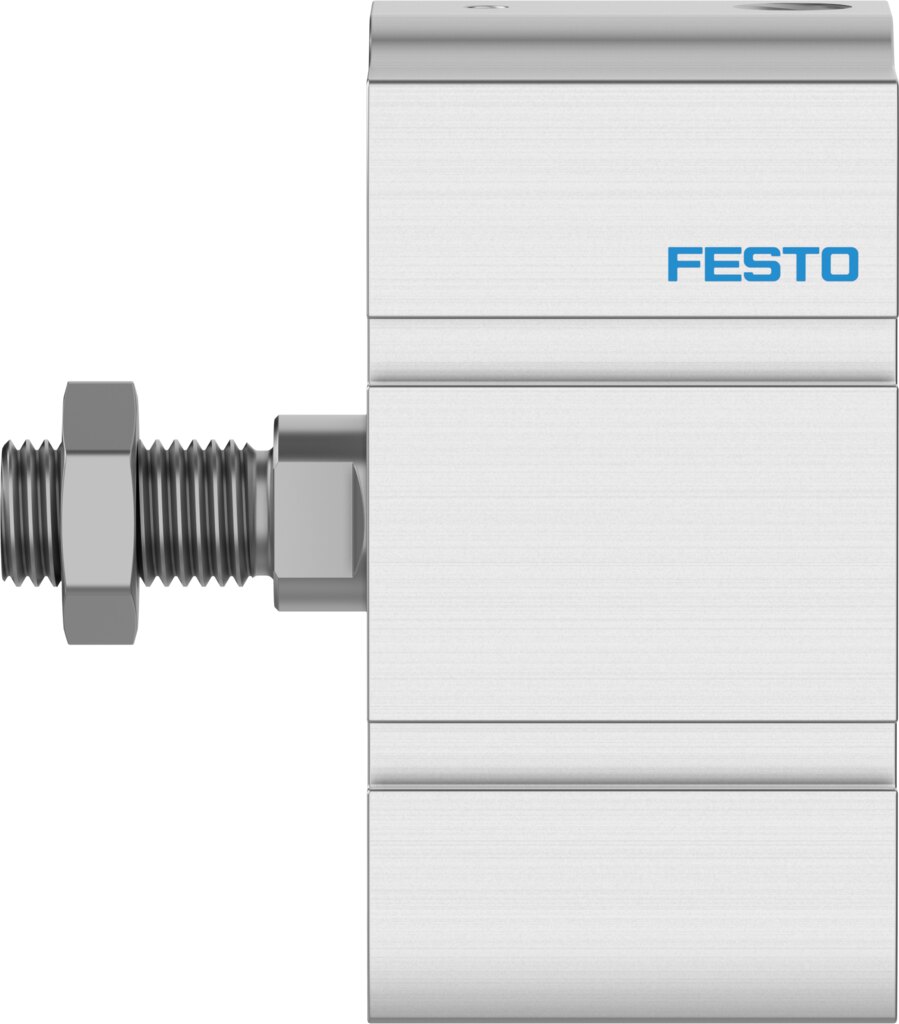

Compact cylinder single-acting pushing Ø 63 mm stroke 10 mm AEN-S-63-10-A-P - Festo 8092147

63 mm piston, 10 mm stroke, 1,870 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-63-10-A-P fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Air only for the working stroke: theoretical 1,870 N advance force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.64 J in the end positions
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Cleanroom-ready: class 5 according to ISO 14644-1, measured to ISO 14644-14
• Additional PTFE piston guide: for even running of the piston
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod

Applications

The pushing AEN-S-63-10-A-P suits ejecting, stopping, marking and clamping where force is needed in one direction only. Since only one direction uses compressed air, the AEN-S-63-10-A-P needs one valve port less. Mount the AEN-S-63-10-A-P via through-holes or the female threads in the housing. For mass calculations Festo states 505 g basic weight at 0 mm stroke plus 76 g per 10 mm stroke.
