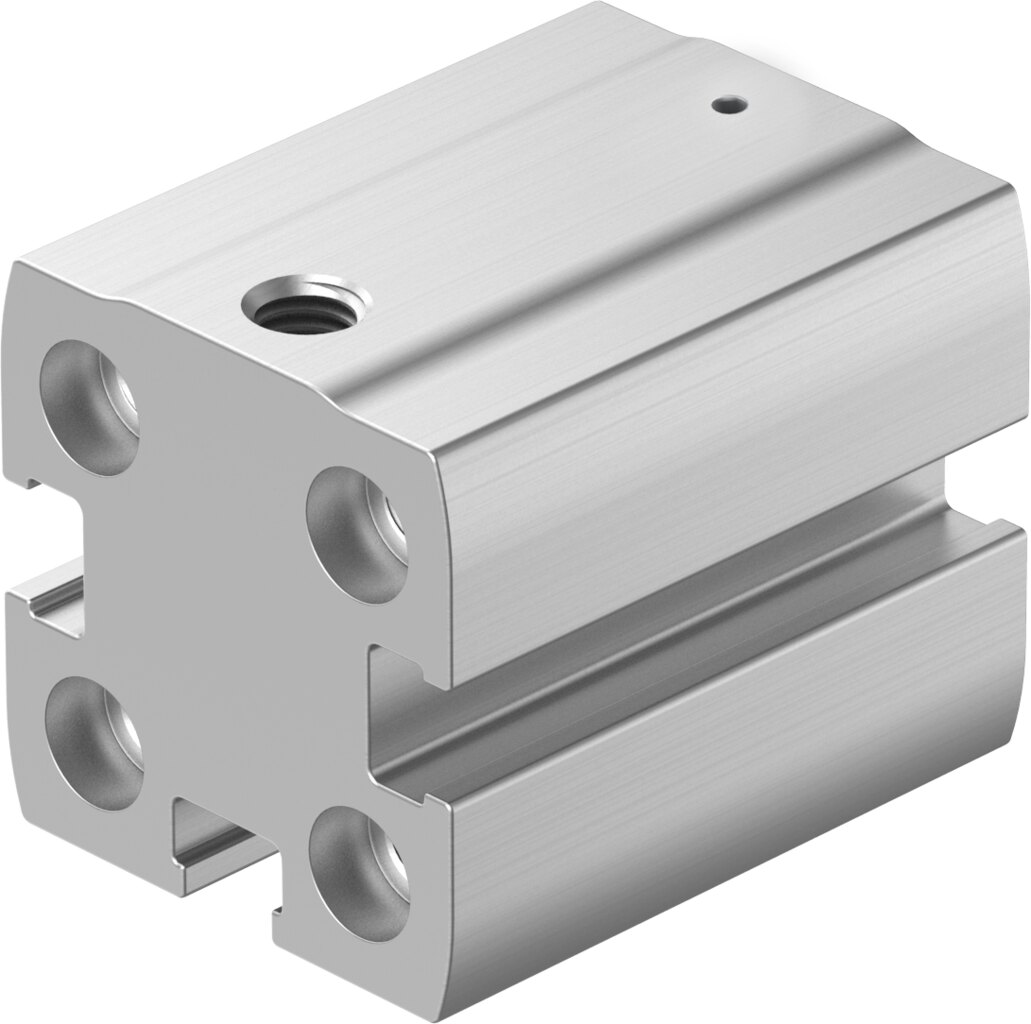

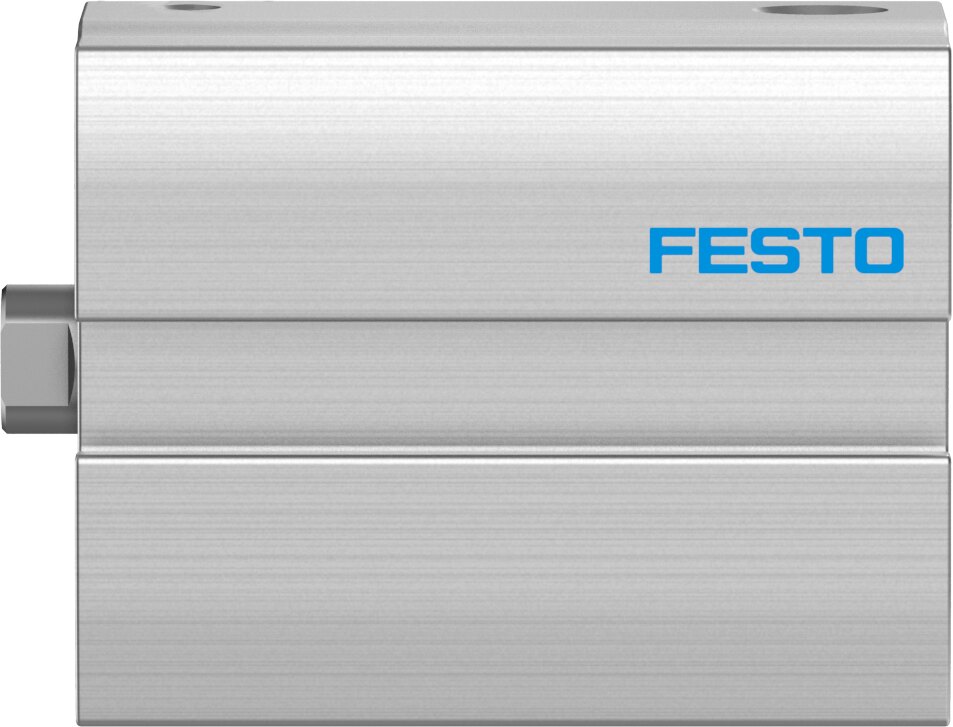

Compact cylinder single-acting pushing Ø 12 mm stroke 10 mm AEN-S-12-10-I-P - Festo 8076476

Where space is short, the AEN-S-12-10-I-P fits in: single-acting pushing compact cylinder, 12 mm piston, 10 mm stroke, 60 N advance force at 6 bar.

Key benefits

• Single-acting: one air line is enough for 60 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.022 J
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The 12 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. With only one air line, tubing and valve technology on the AEN-S-12-10-I-P stay lean. Through-holes and female threads are available for mounting the 12 mm cylinder. For mass calculations Festo states 26 g basic weight at 0 mm stroke plus 15 g per 10 mm stroke.
