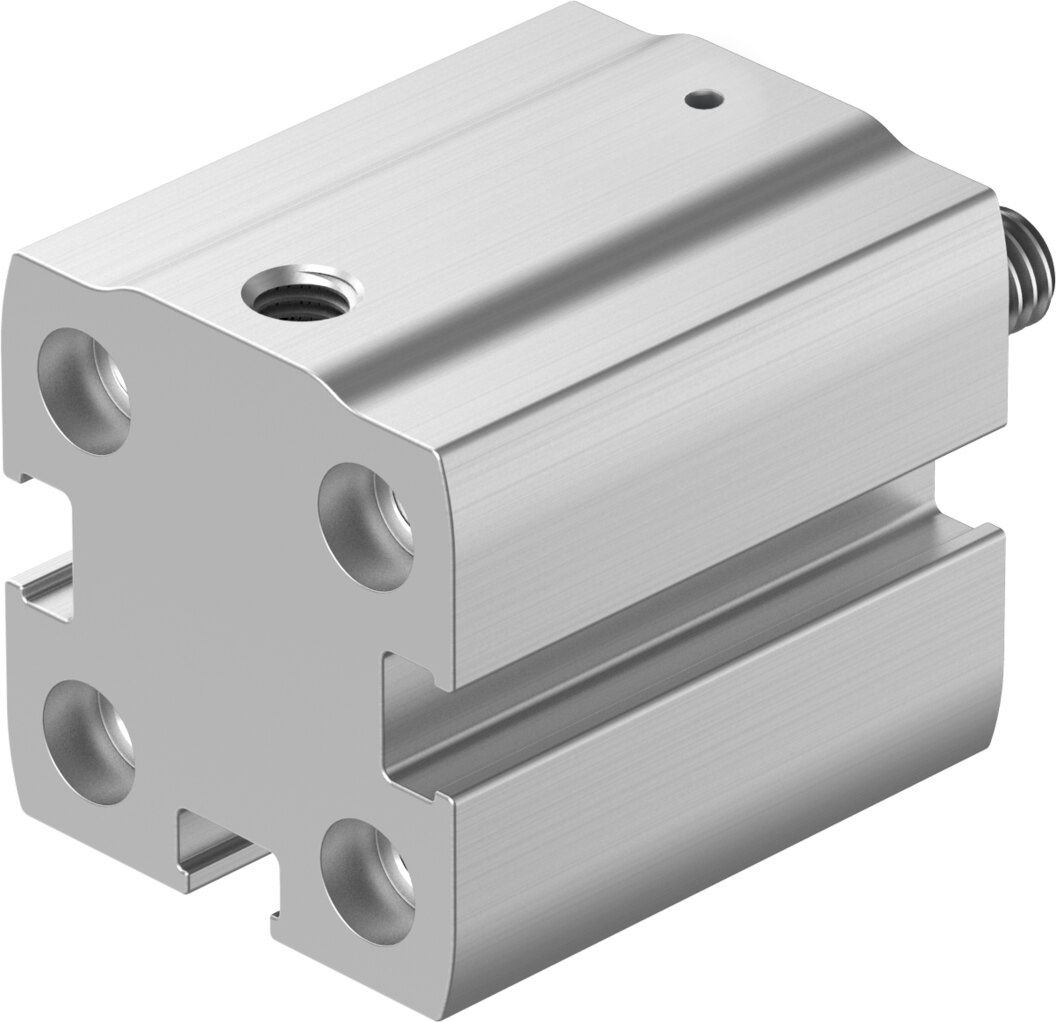

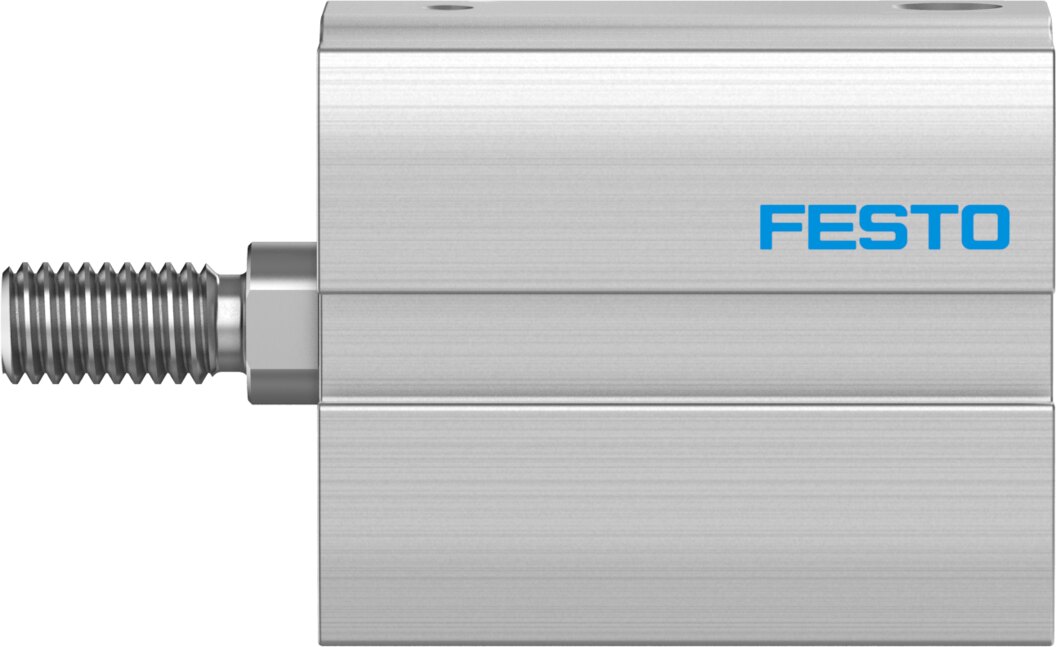

Compact cylinder single-acting pushing Ø 16 mm stroke 25 mm AEN-S-16-25-A-P - Festo 8092140

The Festo AEN-S-16-25-A-P is a single-acting pushing compact cylinder, 16 mm piston, 25 mm stroke. At 6 bar it reaches a theoretical 95 N advance force.

Benefits at a glance

• Single-acting: one air line is enough for 95 N theoretical force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.038 J in the end positions
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The 16 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. Since only one direction uses compressed air, the AEN-S-16-25-A-P needs one valve port less. Mount the AEN-S-16-25-A-P via through-holes or the female threads in the housing. For mass calculations Festo states 32.5 g basic weight at 0 mm stroke plus 18 g per 10 mm stroke.
