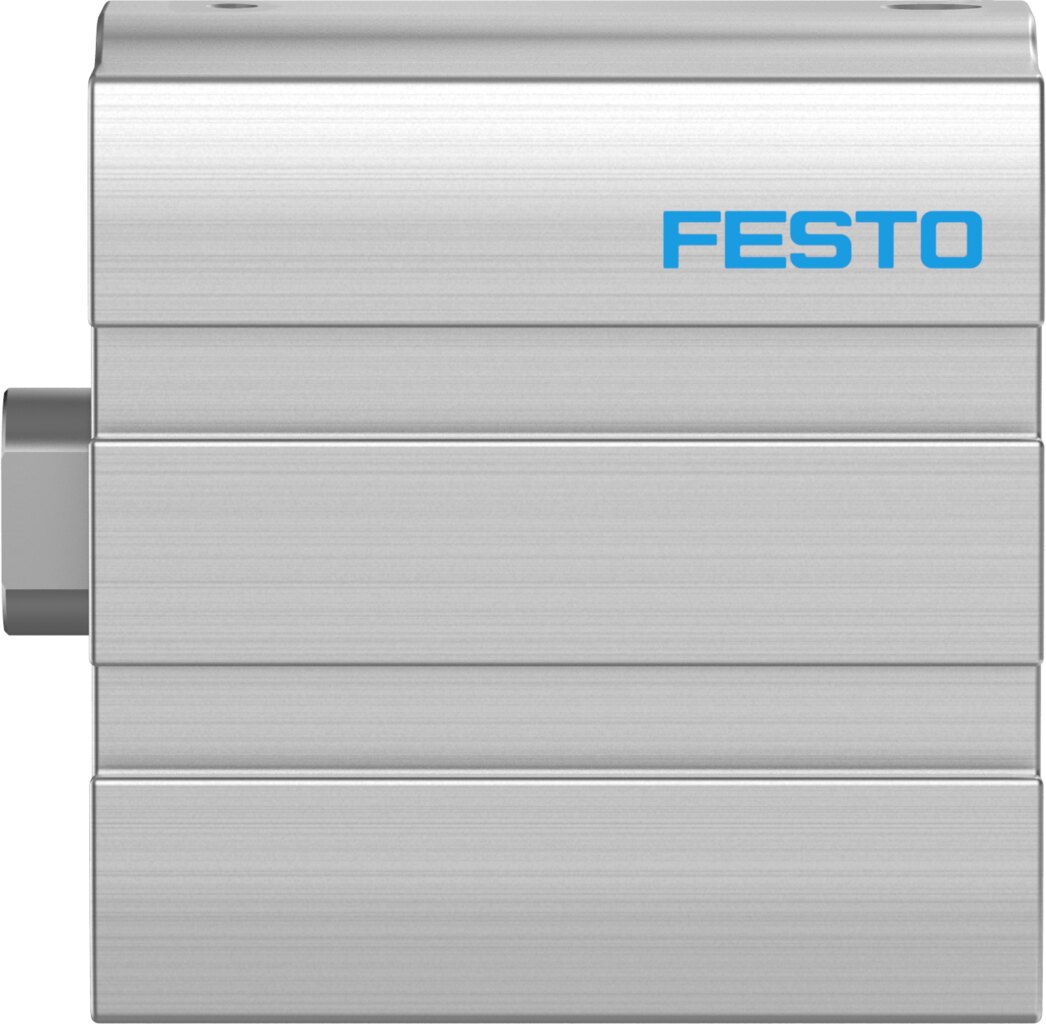

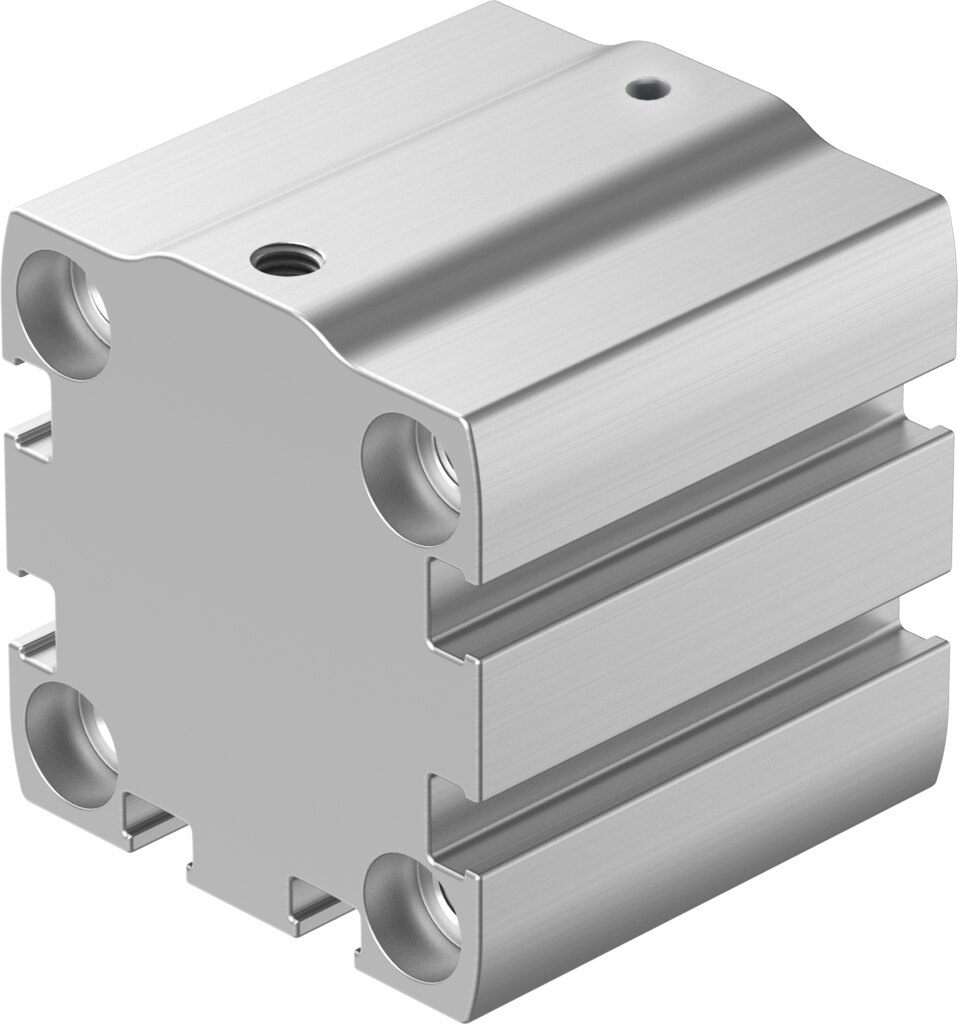

Compact cylinder single-acting pushing Ø 32 mm stroke 5 mm AEN-S-32-5-I-P-A - Festo 8076511

Where space is short, the AEN-S-32-5-I-P-A fits in: single-acting pushing compact cylinder, 32 mm piston, 5 mm stroke, 439 N advance force at 6 bar.

Benefits at a glance

• Air only for the working stroke: theoretical 439 N advance force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.4 J
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Position sensing: prepared for proximity switches, air port M5
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-32-5-I-P-A suits ejecting, stopping, marking and clamping where force is needed in one direction only. With only one air line, tubing and valve technology on the AEN-S-32-5-I-P-A stay lean. Mount the AEN-S-32-5-I-P-A via through-holes or the female threads in the housing. For mass calculations Festo states 117 g basic weight at 0 mm stroke plus 36 g per 10 mm stroke.
