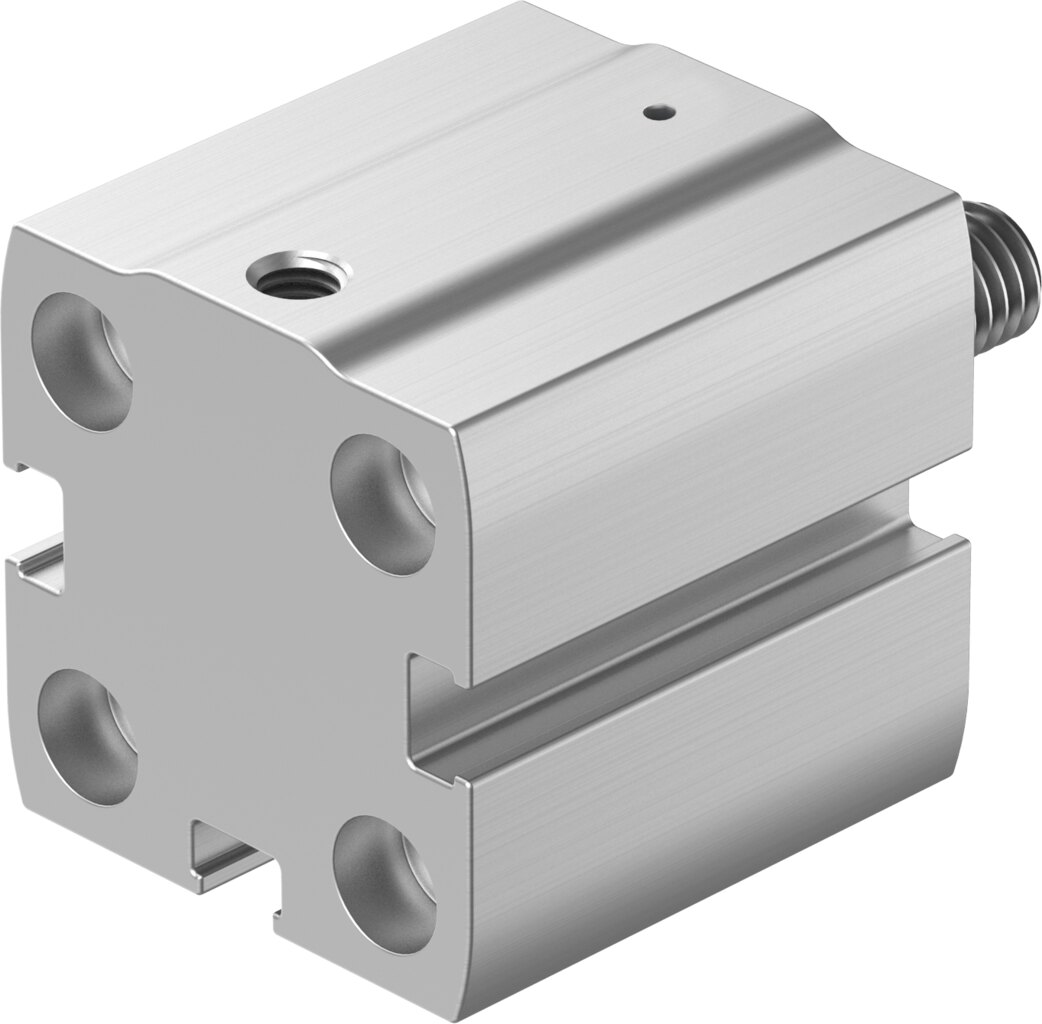

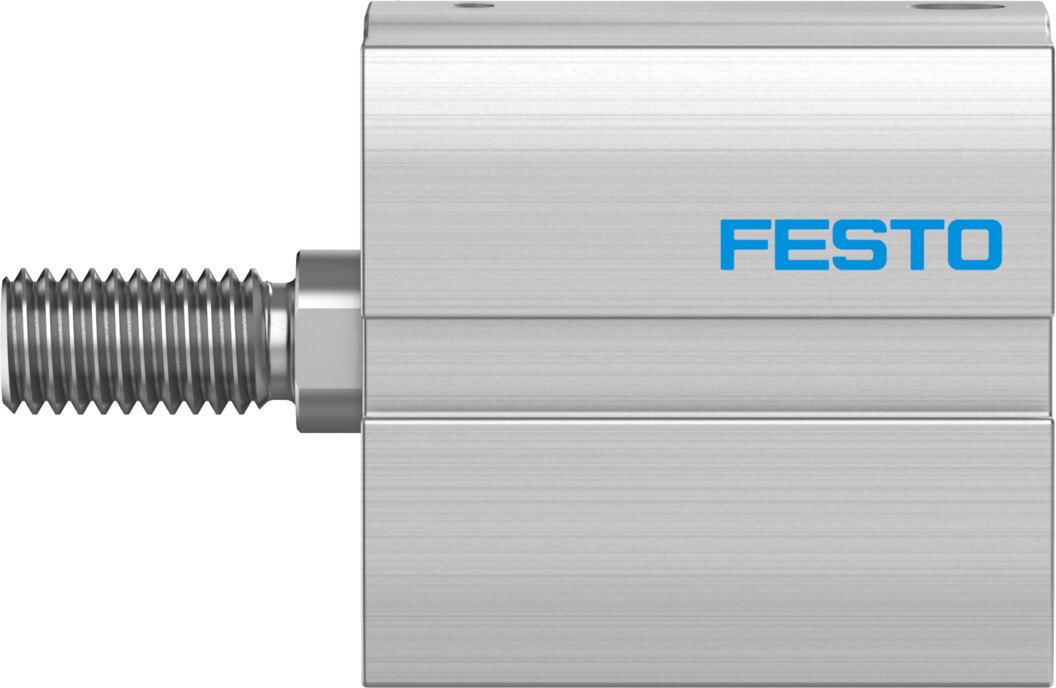

Compact cylinder single-acting pushing Ø 20 mm stroke 10 mm AEN-S-20-10-A-P - Festo 8092219

20 mm piston, 10 mm stroke, 162 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-20-10-A-P fits fixtures where a standard cylinder is too long.

Key benefits

• Single-acting: one air line is enough for 162 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.055 J
• Pressure range: 0.6 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The 20 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. With only one air line, tubing and valve technology on the AEN-S-20-10-A-P stay lean. Through-holes and female threads are available for mounting the 20 mm cylinder. For mass calculations Festo states 51 g basic weight at 0 mm stroke plus 26 g per 10 mm stroke.
