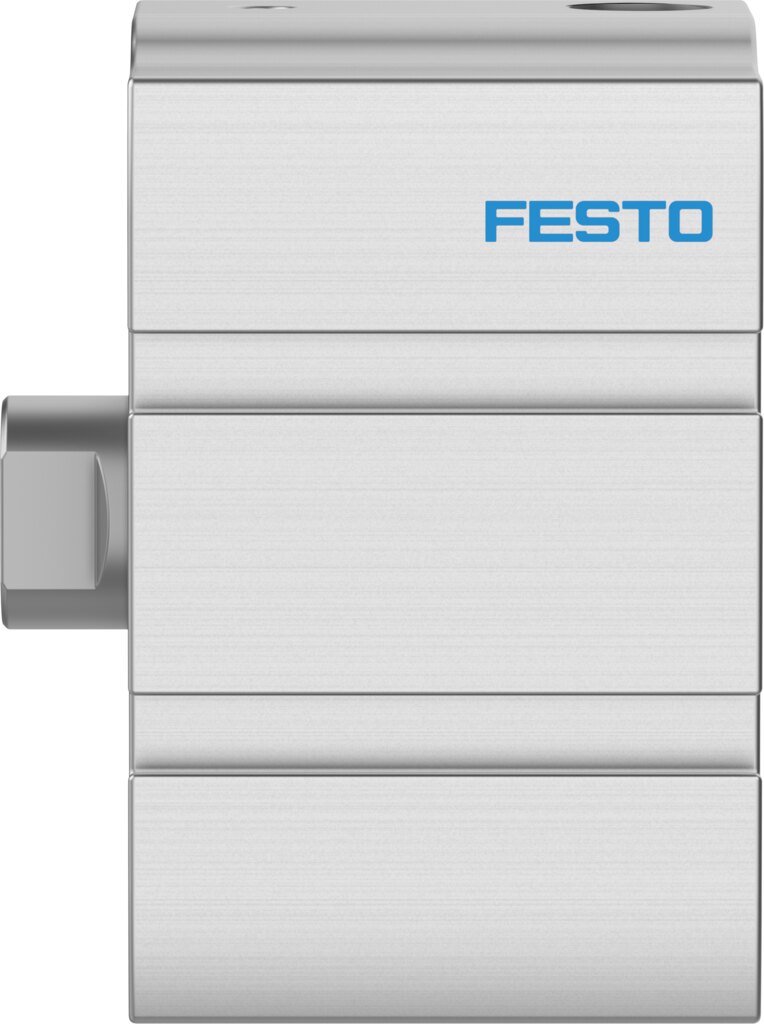

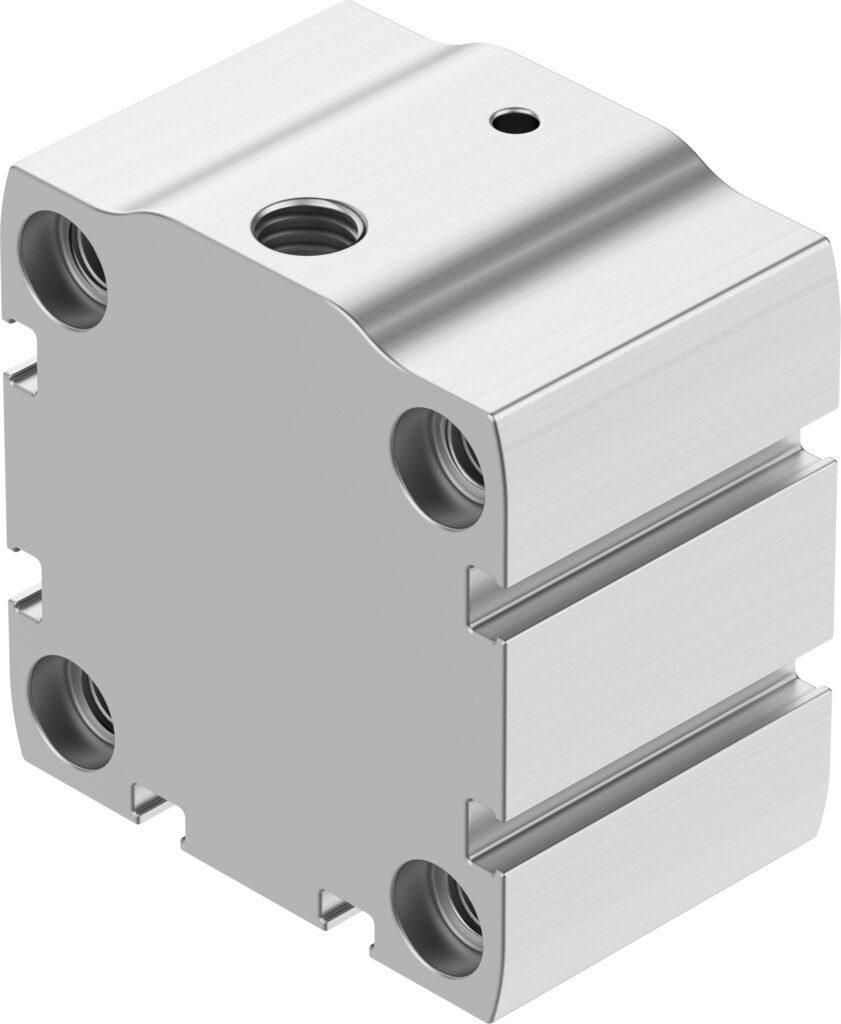

Compact cylinder single-acting pushing Ø 50 mm stroke 10 mm AEN-S-50-10-I-P-A - Festo 5137803

Where space is short, the AEN-S-50-10-I-P-A fits in: single-acting pushing compact cylinder, 50 mm piston, 10 mm stroke, 1,106 N advance force at 6 bar.

Key benefits

• Air only for the working stroke: theoretical 1,106 N advance force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 1 J in the end positions
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Position sensing: prepared for proximity switches, air port G1/8
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-50-10-I-P-A suits ejecting, stopping, marking and clamping where force is needed in one direction only. With only one air line, tubing and valve technology on the AEN-S-50-10-I-P-A stay lean. Through-holes and female threads are available for mounting the 50 mm cylinder. For mass calculations Festo states 324 g basic weight at 0 mm stroke plus 63 g per 10 mm stroke.
