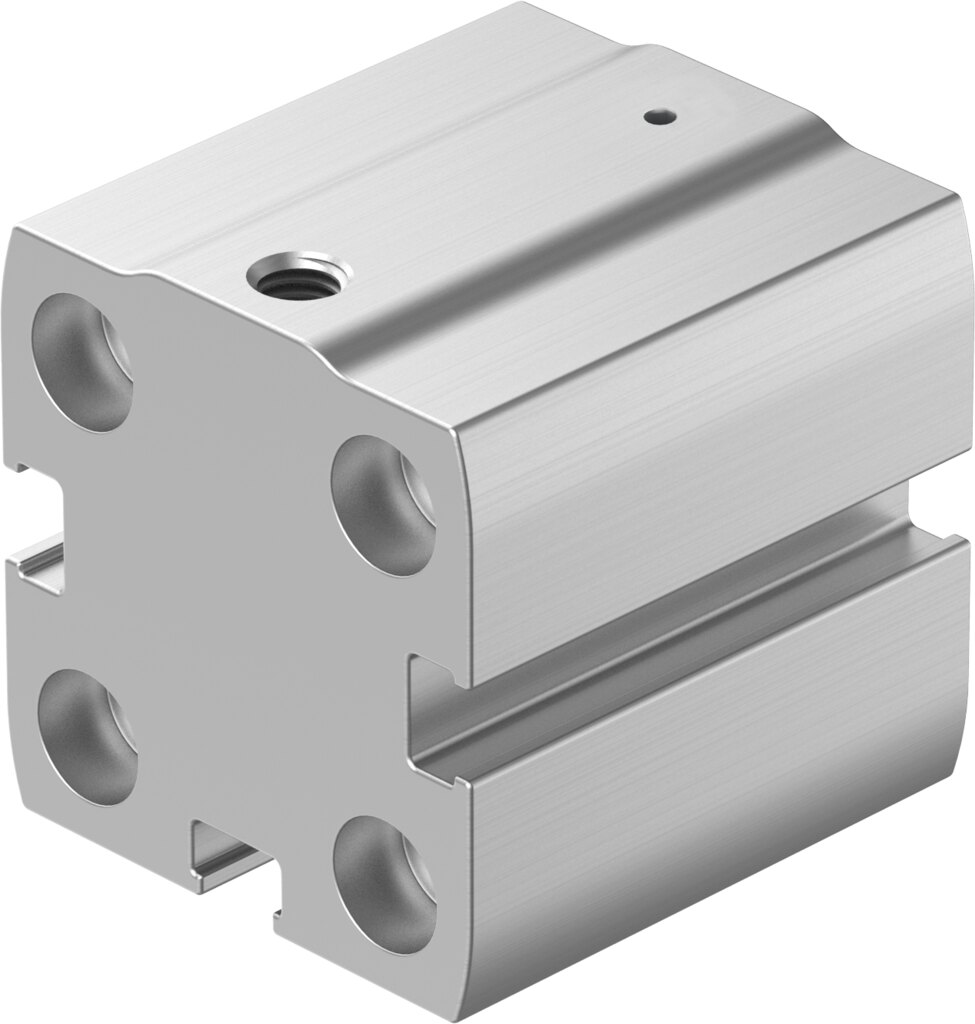

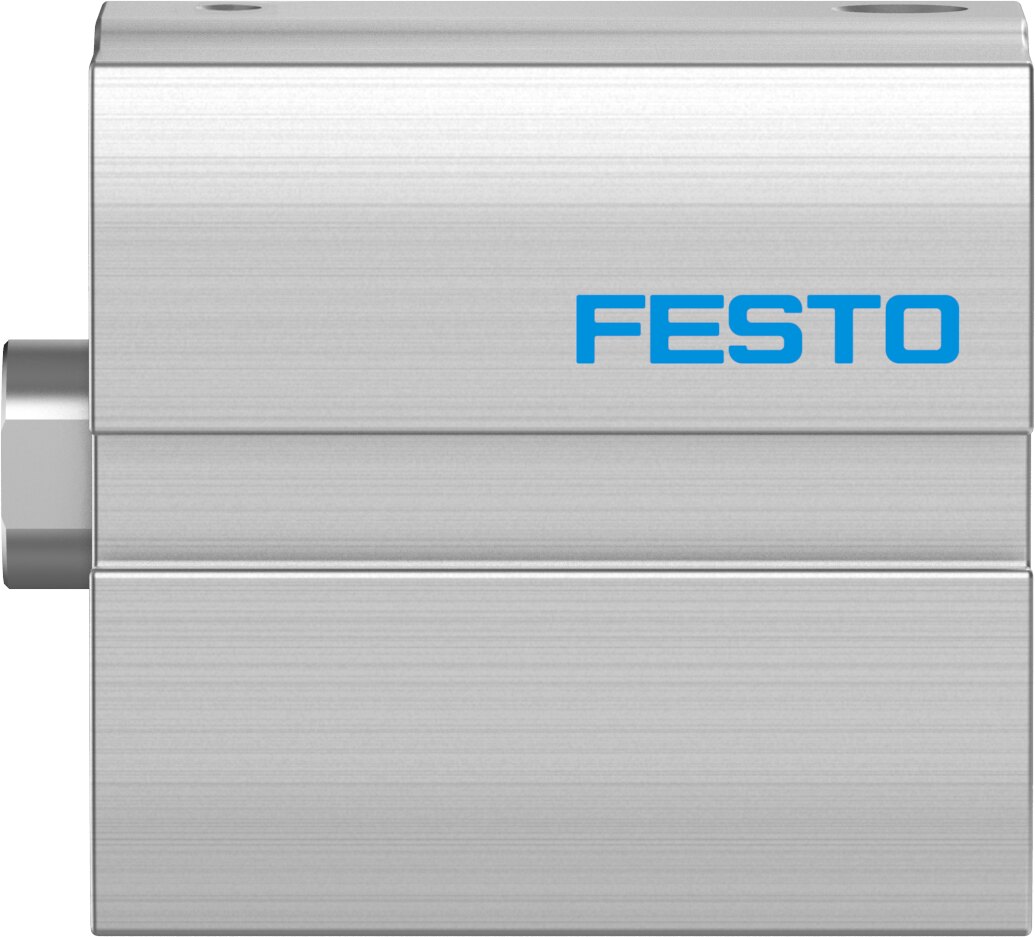

Compact cylinder single-acting pushing Ø 20 mm stroke 10 mm AEN-S-20-10-I-P - Festo 8076499

Where space is short, the AEN-S-20-10-I-P fits in: single-acting pushing compact cylinder, 20 mm piston, 10 mm stroke, 162 N advance force at 6 bar.

Benefits at a glance

• Air only for the working stroke: theoretical 162 N advance force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.055 J
• Pressure range: 0.6 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-20-10-I-P suits ejecting, stopping, marking and clamping where force is needed in one direction only. With only one air line, tubing and valve technology on the AEN-S-20-10-I-P stay lean. Through-holes and female threads are available for mounting the 20 mm cylinder. For mass calculations Festo states 51 g basic weight at 0 mm stroke plus 26 g per 10 mm stroke.
