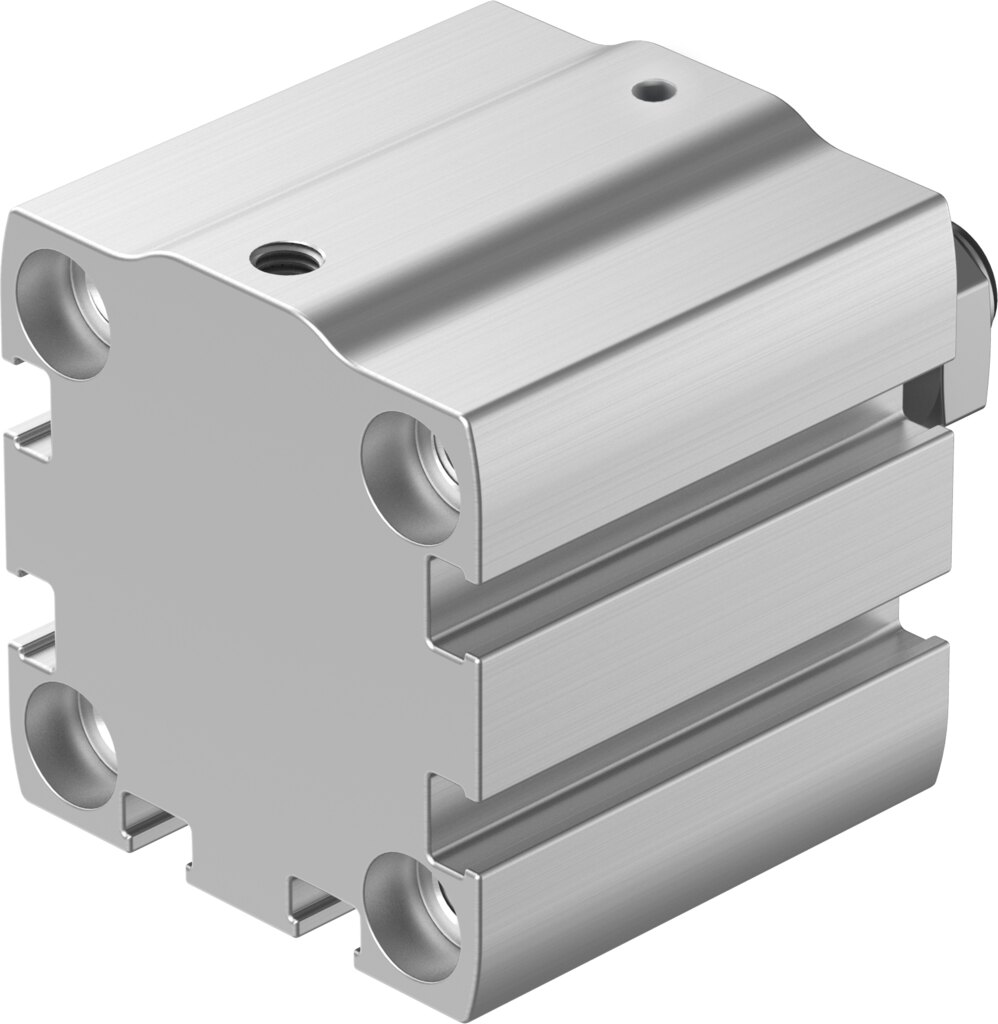

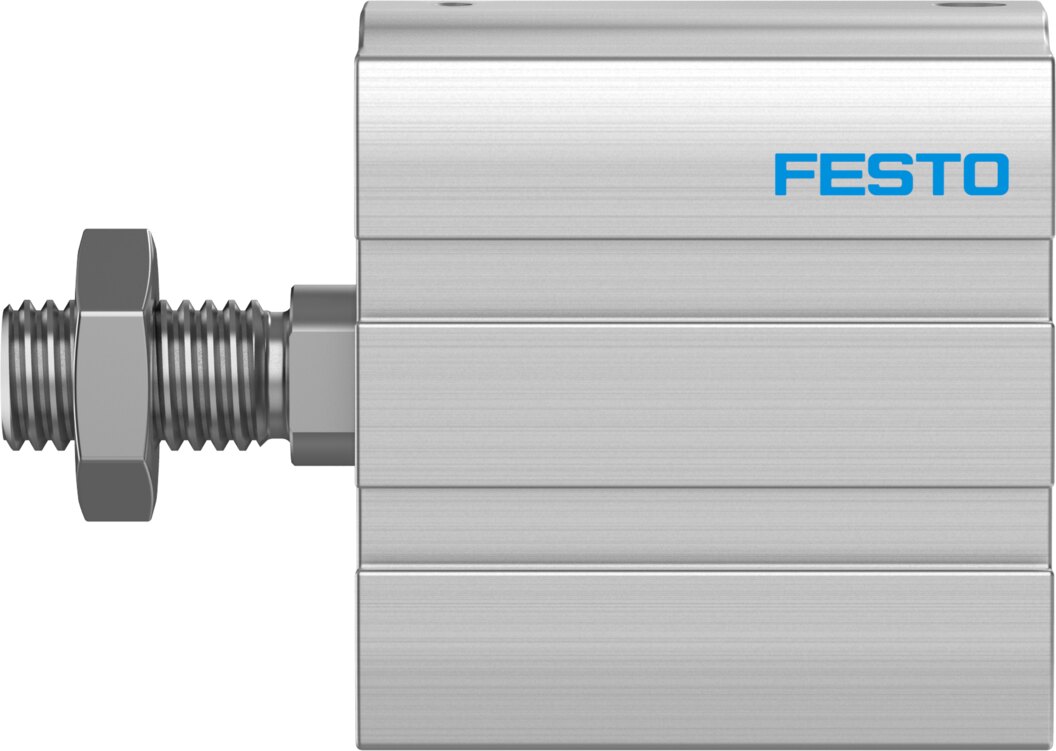

Compact cylinder single-acting pushing Ø 32 mm stroke 10 mm AEN-S-32-10-A-P-A - Festo 8092166

The Festo AEN-S-32-10-A-P-A is a single-acting pushing compact cylinder, 32 mm piston, 10 mm stroke. At 6 bar it reaches a theoretical 439 N advance force.

Benefits

• Air only for the working stroke: theoretical 439 N advance force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.4 J in the end positions
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Position sensing: prepared for proximity switches, air port M5
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-32-10-A-P-A suits ejecting, stopping, marking and clamping where force is needed in one direction only. Since only one direction uses compressed air, the AEN-S-32-10-A-P-A needs one valve port less. Through-holes and female threads are available for mounting the 32 mm cylinder. For mass calculations Festo states 117 g basic weight at 0 mm stroke plus 36 g per 10 mm stroke.
