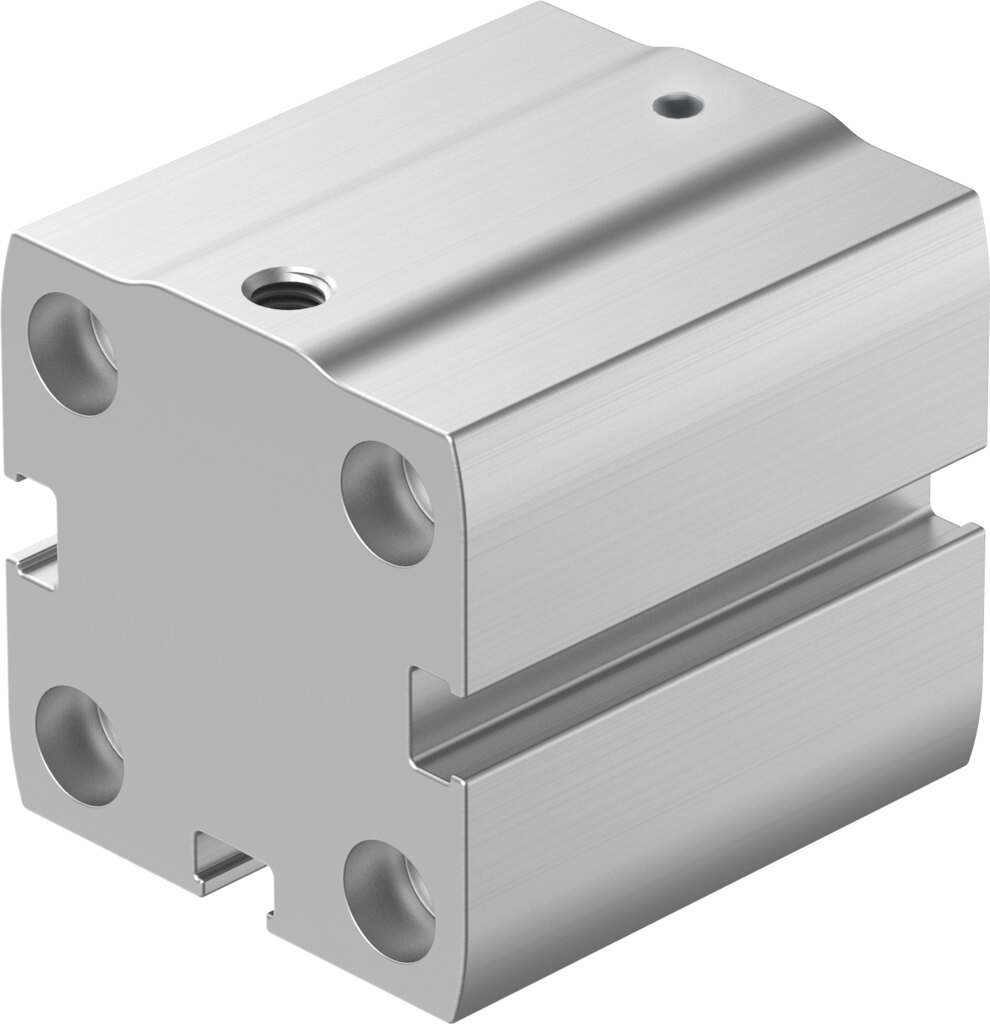

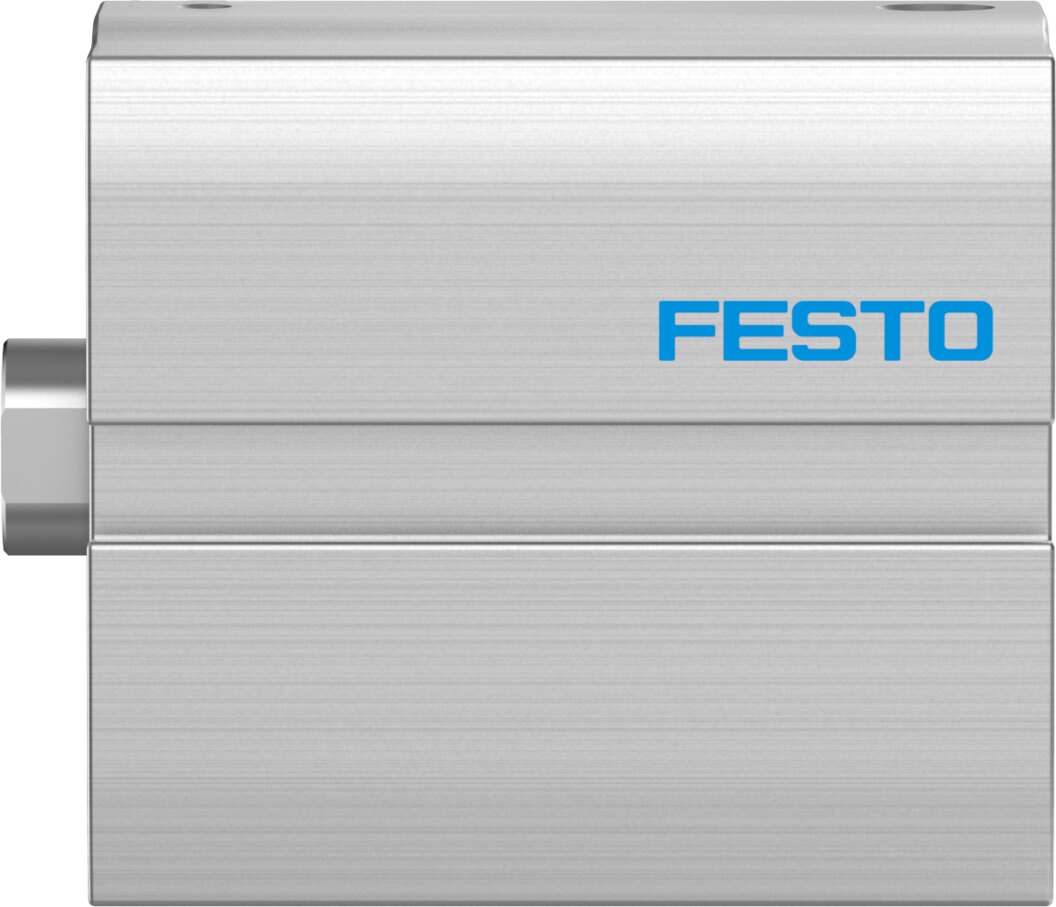

Compact cylinder single-acting pushing Ø 25 mm stroke 10 mm AEN-S-25-10-I-P-A - Festo 8076505

25 mm piston, 10 mm stroke, 259 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-25-10-I-P-A fits fixtures where a standard cylinder is too long.

Key benefits

• Air only for the working stroke: theoretical 259 N advance force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.3 J in the end positions
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Position sensing: prepared for proximity switches, air port M5
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The 25 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. With only one air line, tubing and valve technology on the AEN-S-25-10-I-P-A stay lean. Through-holes and female threads are available for mounting the 25 mm cylinder. For mass calculations Festo states 88 g basic weight at 0 mm stroke plus 30 g per 10 mm stroke.
