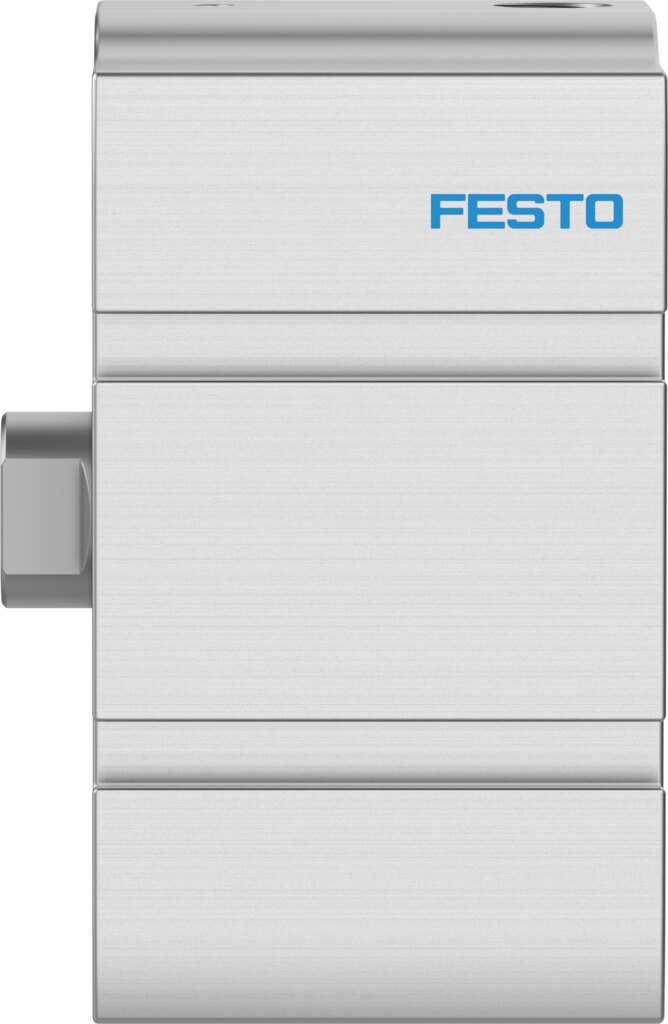

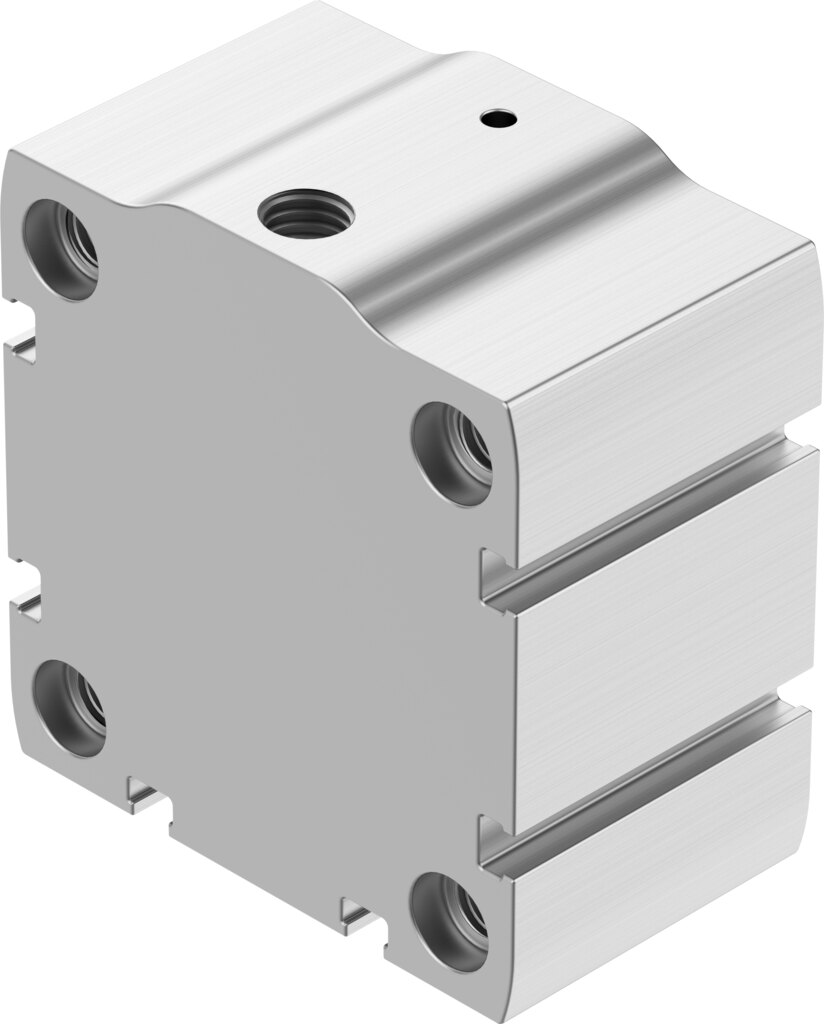

Compact cylinder single-acting pushing Ø 63 mm stroke 25 mm AEN-S-63-25-I-P-A - Festo 5132652

Where space is short, the AEN-S-63-25-I-P-A fits in: single-acting pushing compact cylinder, 63 mm piston, 25 mm stroke, 1,780 N advance force at 6 bar.

Key benefits

• Air only for the working stroke: theoretical 1,780 N advance force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 1.3 J
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Position sensing: prepared for proximity switches, air port G1/8
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-63-25-I-P-A suits ejecting, stopping, marking and clamping where force is needed in one direction only. Since only one direction uses compressed air, the AEN-S-63-25-I-P-A needs one valve port less. Through-holes and female threads are available for mounting the 63 mm cylinder. For mass calculations Festo states 499 g basic weight at 0 mm stroke plus 77 g per 10 mm stroke.
