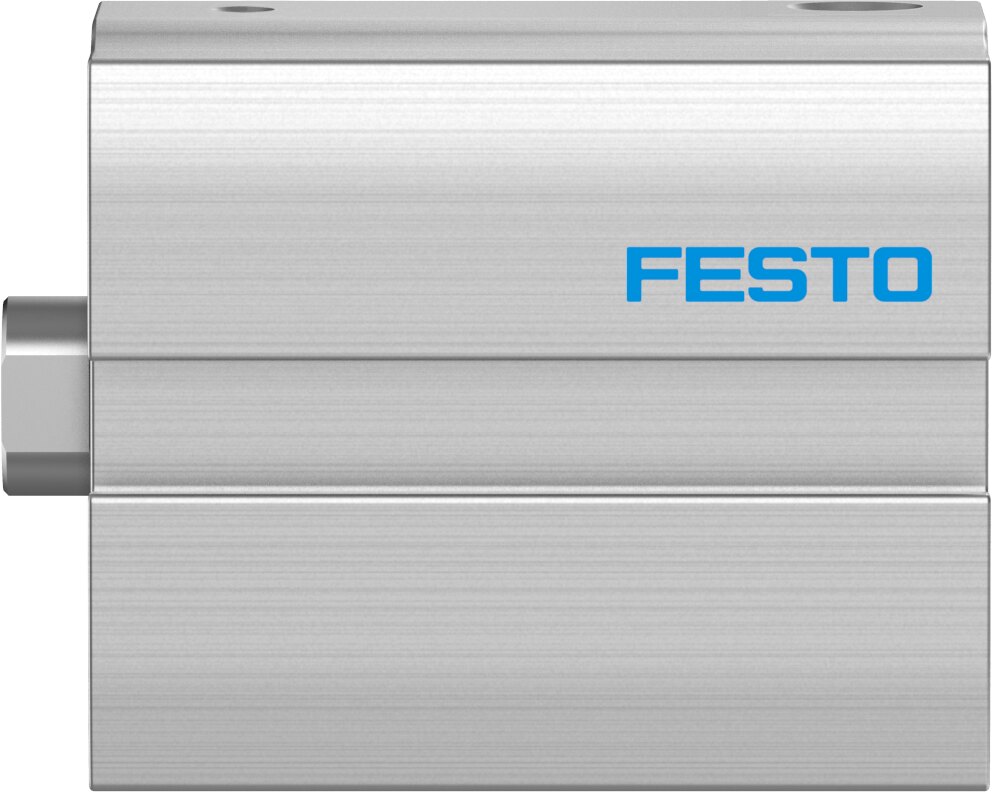

Compact cylinder single-acting pushing Ø 16 mm stroke 5 mm AEN-S-16-5-I-P - Festo 8076496

The Festo AEN-S-16-5-I-P is a single-acting pushing compact cylinder, 16 mm piston, 5 mm stroke. At 6 bar it reaches a theoretical 95 N advance force.

Key benefits

• Single-acting: one air line is enough for 95 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.038 J
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

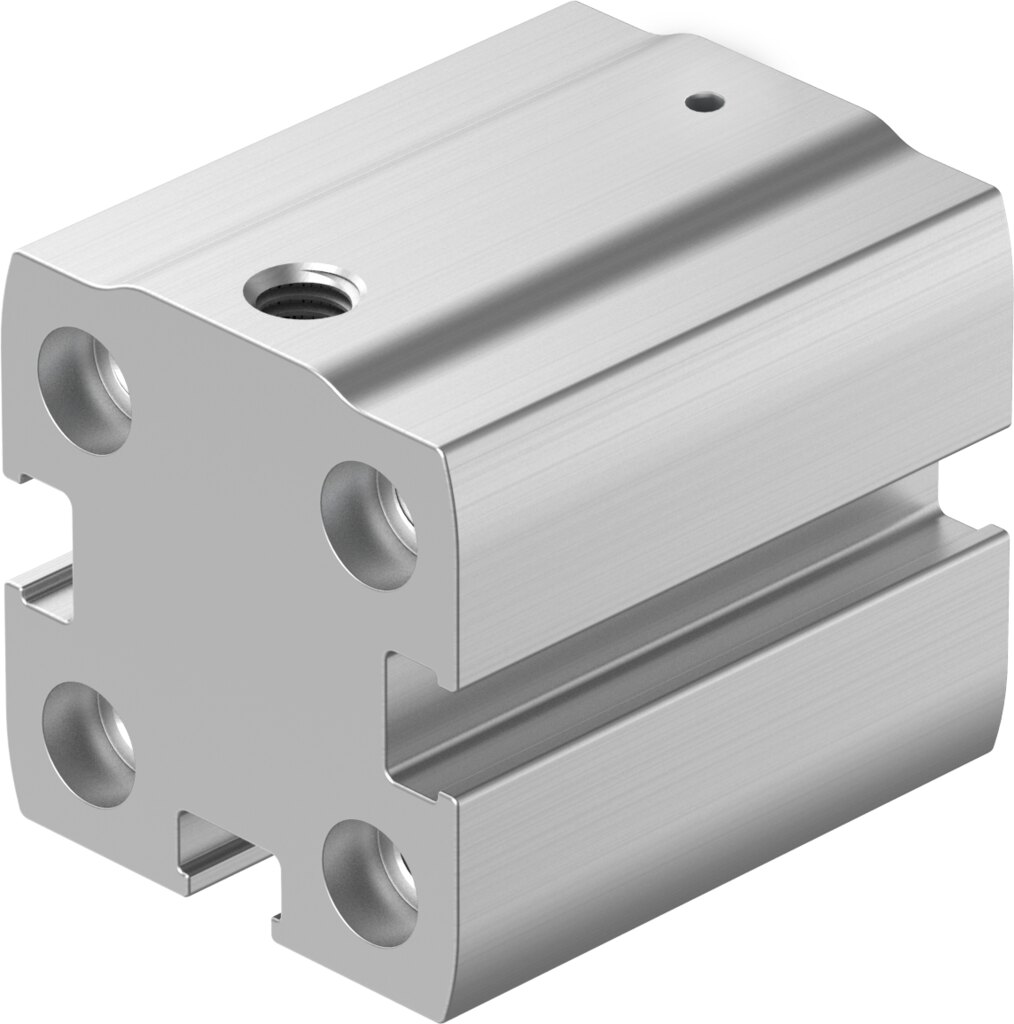

The 16 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. With only one air line, tubing and valve technology on the AEN-S-16-5-I-P stay lean. Through-holes and female threads are available for mounting the 16 mm cylinder. For mass calculations Festo states 32.5 g basic weight at 0 mm stroke plus 18 g per 10 mm stroke.
